Angry [JTAG] Gene JTAG 100% WORKING BY GURU SINGH BRAR

GENE J-TAG 100% WORKING FOR DEAD HTC GENE,
ALSO KNOWN AS HTC P4300/3400i
USE THIS METHOD YOUR OWN RISK


I Successfully Restore My Gene With This Method, Then I Decide To Make This Guide For Those People Who Are Paying For J-TAG.


1. Using this instruction at a certain curvature of the hand you risk permanently kill your machine at the hardware level.
2. If you are unsure of their skills, give the unit for repair technician.
3. All claims for the consequences of using this algorithm are sent to the basket without consideration!!


The technique is based on the recovery Wizard'a loaded through the JTAG bootloader executable code into RAM and transfer control to it.
As a result, you get a temporary working bootloader, and from it produces a complete firmware device (bootloader + system )

Requirement For Do This:-

1. 5 resistors of 100 ohm ¼ value (color code can be change but value has same)



2. 25-pin LPT Port (old printer cable)



3. Wires for JTAG interface MUST not be longer 20 - 25 cm.

4. A soldering Iron Skill

5. Software H-JTAG included in gene_jtag_restore.zip file.

6. Software NoIce included in gene_jtag_restore.zip file.

7. spl.nb – bin file with patched bootloader for OLD/NEW GENE in gene_jtag_restore.zip file.

8. ruu_signed.nbh – OLD/NEW Gene base ROM with IPL and patched SPL in gene_jtag_restore.zip.

9. Download The gene_jtag_restore.zip file For Later Use.

Prepare Your Phone:

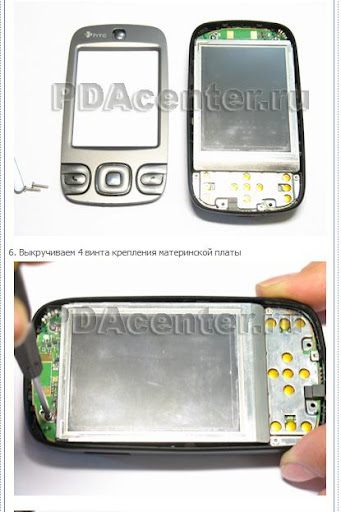

First of all To dissasemble Your device look at this site

http://www.pdacenter.ru/razborka/razbor_htc_3400_gene/
Or Some Screen shot hare..

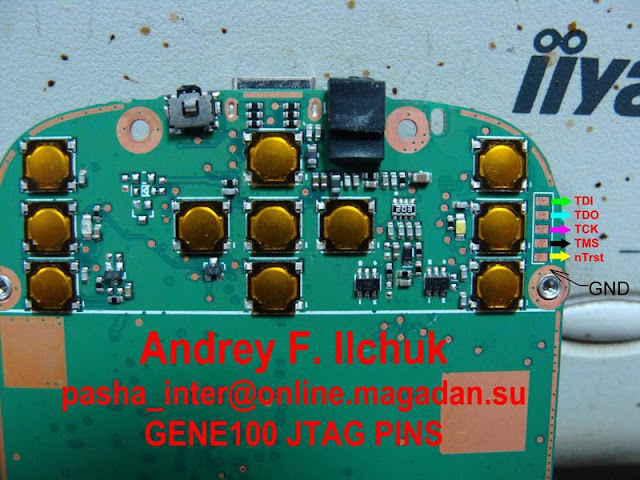

You see these TDI,TDO,TCK,TMS,nTST Pins on board called JTAG Pin reside on your phone green litghts.

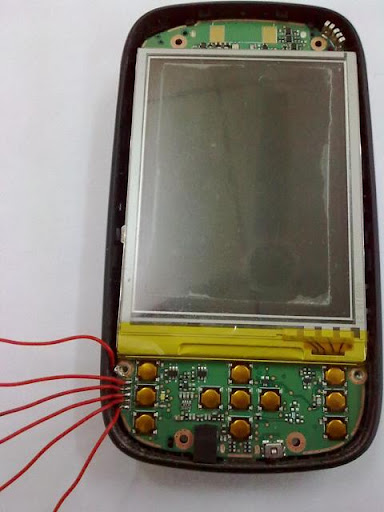

Now Solder The Wire On Borad With Very Carefully.. Otherwise it Damage Your Hardware







Prepare Your LPT Cable:

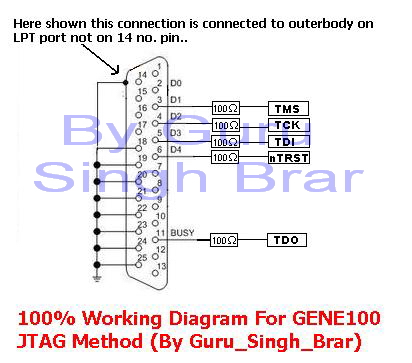

Use the diagram for Creating LPT (Parallel Port) Cable For JTAG.

You Need a port on the computer called LPT Port, in its absence (for example on some laptops) may be used PCMCI LPT.

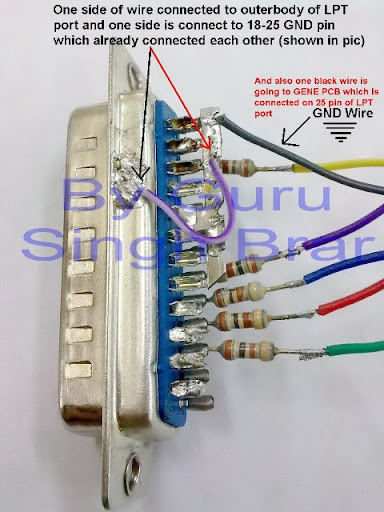

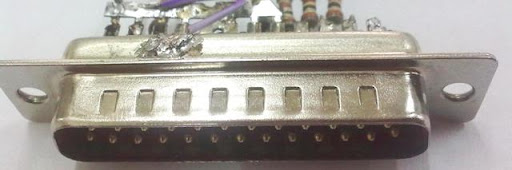

It Look Like This....

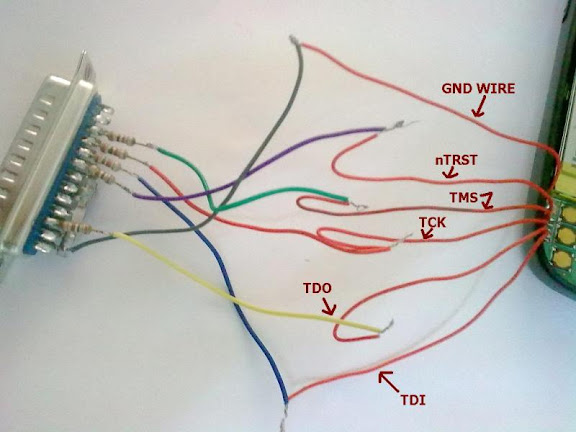

Done,, Now Connect Your Gene With This LPT Port Or You Can Say JTAG Cable



Twist the wire each other perfectly and use the tape for cover the joints...
Done...

Prepare H-JTAG Software:

1. Install And In H-JTAG.

2. Do Some Setting Like Like This...

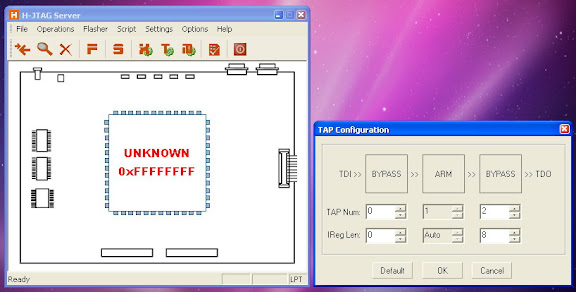

1) In tap configuration should be this.

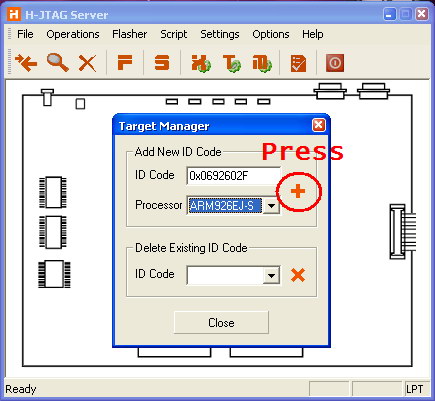

2) In Target Manager setting should be this.



3) In LPT JTAG Setting should be this, and nTRST checkbox must be clear. And User Define Pin Assignment Should Same As Like in The Picture.



Test H-JTAG Software is Connecting With Your Device:

Before Going Next You Must Have Full Charge Battery Of The Your Gene..
Now Put it in Your Gene And Go Next Step..

1. Set the H-JTAG.

2. We Press buttons and hold Power and Camera for 5 seconds. If the device is enabled through the power supply is activated.

3. In H-JTAG press Detect Target. Our processor with ID 0x0692602F Should be defined.

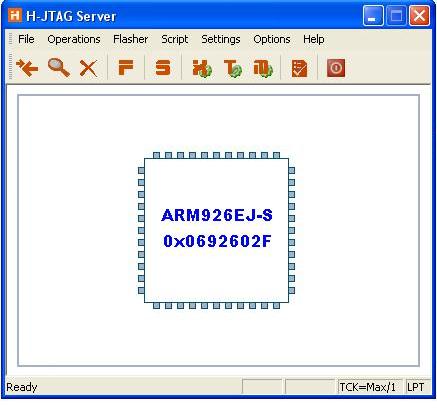

Are You Looking This..



Done. Your Half Part Is Completed...


Now Setup NoIce Software:

1. Install NoIce Software on Your PC.

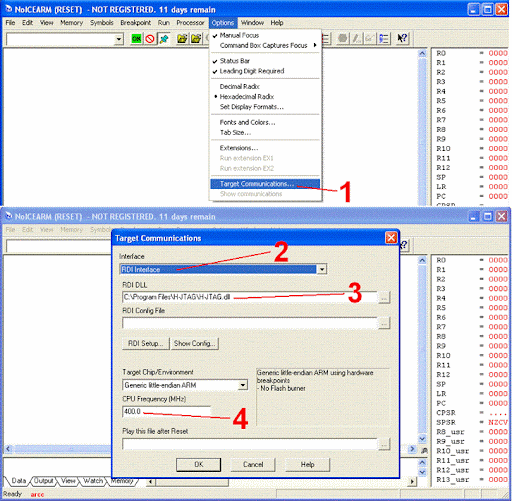

2. Open NoIce Software and Setup NoIce With H-JTAG Software (Means Connect Both Software Each Other Will use Late).

3. Choose Options-Target Communications.

4. Select the RDI Interface.

5. Indicates where the H-JTAG.dll for RDI.

6. Put frequency of the processor (specify 200).

See The Picture And Do The Above Mention Steps..



7. Then click OK and close the program NoICe.

8. Done...

Now Play The Game...

1. Prepare Dead device for Restore.

2. Connect LPT JTAG Cable to LPT Port of Your PC. (Or Already Connected)

3. Start the H-jtag (the settings for the processor are given above).

4. Turn device - we press and hold the Camera button and POWER.

5. In H-jtag perform Detect Target Device - you should decide on the processor with the correct ID (0x0692602F).
You See This..



6. Run NoICe if everything is normal and all right-minded above program should be the address of 0000 and you see the code ARM.

7. If you have NEW GENE create a folder NEWGENE in c:\ (root) without any space example C:\NEWGENE . And copy spl.nb & ruu_signed.nbh file from (for new Gene (SN - HT8x)) folder which include in gene_jtag_restore.zip to in this NEWGENE Folder and also copy the full RomUpdateUtility in this folder.

OR

8. If you have OLD GENE create a folder OLDGENE in c:\ (root) without any space exmpale C:\OLDGENE . And copy spl.nb & ruu_signed.nbh file from (for new Gene (SN - HT7x)) folder which include in gene_jtag_restore.zip to in this OLDGENE Folder and also copy the full RomUpdateUtility in this folder.


Next, consider the following illustration, And Use The Step Below The Picture..





1. Necessarily ..first we put a tick on Load as binary image.

2. We Specify the address of loading in RAM 10000000 (Check it Correctly).

3. We Choose a file bootloader for loading spl.nb form Folder.

4. Choose This File Form,, If Your Gene is New Use NEWGENE Folder.

Or

5. Choose This File Form,, If Your Gene is OLD Use OLDGENE Folder.

6. We press Ok and we see progress a bar of loading (it is necessary to wait some time).

7. As soon as its filled with the file we choose item of menu View and choose submenu Disassemble at...

8. Address necessary to be specified 10000000,

9. We press Ok and we see code ARM - if aall ij well and the file is loaded , then the first command should be EA0003FE.

6. Press And Hold Camera Button and Press on the program menu RUN and to submenu Go FROM...

7. We Specify 10000000 in address and press Ok....

8. Device must be run in mode bootloader.

9. If Your Device Boot In Bootloader Mode So, Now Camera And Power Button can be released..


Now Flash The Device With Boot Rom

1. Now We connect to usb and it is flashed with ruu_signed.nbh file from Folder OLDGENE/NEWGENE depend on Your Gene Model..

2. It is possible remove Jtag and to collect Your phone.

3. Further we flash with a good ROM(cooked) and no stock ROM please.. it’ll kill it again...

DOWNLOAD : - gene_jtag_restore.zip

Good Bye.....

Attached Thumbnails
Click image for larger version

Name:	17.jpg
Views:	9835
Size:	102.9 KB
ID:	476503
Attached Files
File Type: zip gene_jtag_restore.zip - [Click for QR Code] (6.81 MB, 2196 views)
The Following 8 Users Say Thank You to gurusinghbrar For This Useful Post: [ Click to Expand ]

prgawali
Old
#2
prgawali's Avatar
Junior Member
Thanks Meter 1
Posts: 15
Join Date: Aug 2009
Location: Pune, MS, India
Thumbs up Thats a Step-By-Step Guide on JTAG for New bees

Hi Guru,
You have done an awesome compilation. You have really made a step-by-step guide for JTAG for the new bees. I like to thank you for your valuable work. And also like to thank the members of XDA-Developers -
Orefkov, BesFen, Krazy_about_technology, Addicted2xda, Vaibhav_batra_the_techguy, haree, karan999, sumeet922, gurusinghbrar and so on...
for their valuable work on HTC Gene - JTAG Recovery & ROM Development.
Last but not the least... Keep it up, Guru. I give you Lots of Applause for this Post.

Moderators can you make this post Sticky... Its a request, Please.Thanks to XDA-Developers for giving such a team support.
Regards,

Parag Gawali
______________________________________
Now working on: Ubislate 7+ [Froyo 2.2.2]

Current Handset:
Currently using:: Stock ROM Android 4.0.4:
Using Handset: Motorola A100

Previous Handset:
HTC P-3400i [New Gene]

karan999
Old
#3
karan999's Avatar
Recognized Developer
Thanks Meter 88
Posts: 1,801
Join Date: Dec 2008
Awesome !!!!!!!!!!!!!!!! great work.thanks for sharing.


My Custom W.M.6.1 ROMSMy Custom WM 6.5 ROMSHTC Audio convertersStorage card info for P3400i

If you like my work on Xda,please donate.

The Following User Says Thank You to karan999 For This Useful Post: [ Click to Expand ]

nipun_cse
Old
#4
nipun_cse's Avatar
Senior Member
Thanks Meter 0
Posts: 125
Join Date: Oct 2008
Location: Dhaka
thanks for sharing
______________
Nipun
P3400I (New Gene)

singh_vidyanand
Old
(Last edited by singh_vidyanand; 12th March 2011 at 07:19 PM.)
#5
Junior Member
Thanks Meter 0
Posts: 1
Join Date: Dec 2010
Default Help us to start dead p3400i

please tell me location of Bootloader file, you have mentioned (sspl-s_wizard.nb) in bitmap.. i am unable to find bootloader.. for loading.

kirat14
Old
#6
Junior Member
Thanks Meter 0
Posts: 6
Join Date: May 2009
Thanx for solution........but accidentally my Phone's TDI pin has Damaged..........pls tell me any solution of tracing or clone of the TDI pin.

plexus046
Old
#7
Junior Member
Thanks Meter 1
Posts: 17
Join Date: Aug 2011
Location: Mysore
Unhappy Help please!!!!

I have bricked my HTC Gene While flashing it with a official rom
I went through your Step by step instruction for unbricking with J TAG
but the main problem i use a netbook and it does not have the port for printer
i have even sent the phone for service and it was useless
this phone is very dear to me and cant see it just lying . please suggest a alternative method im also willing to send the phone to you if you will help me unbrick it

10492
Old
#8
10492's Avatar
Junior Member
Thanks Meter 3
Posts: 18
Join Date: Sep 2009
Location: mumbai
Quote:
Originally Posted by gurusinghbrar View Post
GENE J-TAG 100% WORKING FOR DEAD HTC GENE,
ALSO KNOWN AS HTC P4300/3400i
USE THIS METHOD YOUR OWN RISK


I Successfully Restore My Gene With This Method, Then I Decide To Make This Guide For Those People Who Are Paying For J-TAG.


1. Using this instruction at a certain curvature of the hand you risk permanently kill your machine at the hardware level.
2. If you are unsure of their skills, give the unit for repair technician.
3. All claims for the consequences of using this algorithm are sent to the basket without consideration!!


The technique is based on the recovery Wizard'a loaded through the JTAG bootloader executable code into RAM and transfer control to it.
As a result, you get a temporary working bootloader, and from it produces a complete firmware device (bootloader + system )

Requirement For Do This:-

1. 5 resistors of 100 ohm ¼ value (color code can be change but value has same)



2. 25-pin LPT Port (old printer cable)



3. Wires for JTAG interface MUST not be longer 20 - 25 cm.

4. A soldering Iron Skill

5. Software H-JTAG included in gene_jtag_restore.zip file.

6. Software NoIce included in gene_jtag_restore.zip file.

7. spl.nb – bin file with patched bootloader for OLD/NEW GENE in gene_jtag_restore.zip file.

8. ruu_signed.nbh – OLD/NEW Gene base ROM with IPL and patched SPL in gene_jtag_restore.zip.

9. Download The gene_jtag_restore.zip file For Later Use.

Prepare Your Phone:

First of all To dissasemble Your device look at this site

http://www.pdacenter.ru/razborka/razbor_htc_3400_gene/
Or Some Screen shot hare..



You see these TDI,TDO,TCK,TMS,nTST Pins on board called JTAG Pin reside on your phone green litghts.



Now Solder The Wire On Borad With Very Carefully.. Otherwise it Damage Your Hardware







Prepare Your LPT Cable:

Use the diagram for Creating LPT (Parallel Port) Cable For JTAG.

You Need a port on the computer called LPT Port, in its absence (for example on some laptops) may be used PCMCI LPT.



It Look Like This....





Done,, Now Connect Your Gene With This LPT Port Or You Can Say JTAG Cable



Twist the wire each other perfectly and use the tape for cover the joints...
Done...

Prepare H-JTAG Software:

1. Install And In H-JTAG.

2. Do Some Setting Like Like This...

1) In tap configuration should be this.



2) In Target Manager setting should be this.



3) In LPT JTAG Setting should be this, and nTRST checkbox must be clear. And User Define Pin Assignment Should Same As Like in The Picture.



Test H-JTAG Software is Connecting With Your Device:

Before Going Next You Must Have Full Charge Battery Of The Your Gene..
Now Put it in Your Gene And Go Next Step..

1. Set the H-JTAG.

2. We Press buttons and hold Power and Camera for 5 seconds. If the device is enabled through the power supply is activated.

3. In H-JTAG press Detect Target. Our processor with ID 0x0692602F Should be defined.
Are You Looking This..



Done. Your Half Part Is Completed...


Now Setup NoIce Software:

1. Install NoIce Software on Your PC.

2. Open NoIce Software and Setup NoIce With H-JTAG Software (Means Connect Both Software Each Other Will use Late).

3. Choose Options-Target Communications.

4. Select the RDI Interface.

5. Indicates where the H-JTAG.dll for RDI.

6. Put frequency of the processor (specify 200).

See The Picture And Do The Above Mention Steps..



7. Then click OK and close the program NoICe.

8. Done...

Now Play The Game...

1. Prepare Dead device for Restore.

2. Connect LPT JTAG Cable to LPT Port of Your PC. (Or Already Connected)

3. Start the H-jtag (the settings for the processor are given above).

4. Turn device - we press and hold the Camera button and POWER.

5. In H-jtag perform Detect Target Device - you should decide on the processor with the correct ID (0x0692602F).
You See This..



6. Run NoICe if everything is normal and all right-minded above program should be the address of 0000 and you see the code ARM.

7. If you have NEW GENE create a folder NEWGENE in c:\ (root) without any space example C:\NEWGENE . And copy spl.nb & ruu_signed.nbh file from (for new Gene (SN - HT8x)) folder which include in gene_jtag_restore.zip to in this NEWGENE Folder and also copy the full RomUpdateUtility in this folder.

OR

8. If you have OLD GENE create a folder OLDGENE in c:\ (root) without any space exmpale C:\OLDGENE . And copy spl.nb & ruu_signed.nbh file from (for new Gene (SN - HT7x)) folder which include in gene_jtag_restore.zip to in this OLDGENE Folder and also copy the full RomUpdateUtility in this folder.


Next, consider the following illustration, And Use The Step Below The Picture..





1. Necessarily ..first we put a tick on Load as binary image.

2. We Specify the address of loading in RAM 10000000 (Check it Correctly).

3. We Choose a file bootloader for loading spl.nb form Folder.

4. Choose This File Form,, If Your Gene is New Use NEWGENE Folder.

Or

5. Choose This File Form,, If Your Gene is OLD Use OLDGENE Folder.

6. We press Ok and we see progress a bar of loading (it is necessary to wait some time).

7. As soon as its filled with the file we choose item of menu View and choose submenu Disassemble at...

8. Address necessary to be specified 10000000,

9. We press Ok and we see code ARM - if aall ij well and the file is loaded , then the first command should be EA0003FE.

6. Press And Hold Camera Button and Press on the program menu RUN and to submenu Go FROM...

7. We Specify 10000000 in address and press Ok....

8. Device must be run in mode bootloader.

9. If Your Device Boot In Bootloader Mode So, Now Camera And Power Button can be released..


Now Flash The Device With Boot Rom

1. Now We connect to usb and it is flashed with ruu_signed.nbh file from Folder OLDGENE/NEWGENE depend on Your Gene Model..

2. It is possible remove Jtag and to collect Your phone.

3. Further we flash with a good ROM(cooked) and no stock ROM please.. it’ll kill it again...

DOWNLOAD : - gene_jtag_restore.zip

Good Bye.....
dude m bit confused in connection of wire in lpt port the diagram image here in this page is different n the diagram image is different in the gene_Jtag_restore.rar ,so plz help me which connect i should do for my restore process,reply.

thank in advance
The Following 2 Users Say Thank You to 10492 For This Useful Post: [ Click to Expand ]

Zaki Sultany
Old
#9
Zaki Sultany's Avatar
Member
Thanks Meter 4
Posts: 77
Join Date: Jan 2012
Location: Delhi
Angry Haha

lol nobody gives a fukc
Btw is it like something usb jigg !

JackMcD007
Old
#10
Junior Member
Thanks Meter 0
Posts: 8
Join Date: Feb 2012
Location: Chandler
Default THANKS

Thanks this will help me with my dads old phone.
