Audio [Tutorial] How to Fix your Pico's Headphone Socket

Getting audio cuts, left or right channel always disconnects, audio distortion, or headphones not working at all? Well your Pico's headphone socket is loose. Solders on the headphone socket are somehow, cracked or just got detached from the board. Here's how to fix it...

DISCLAIMER: I AM NOT RESPONSIBLE IF THIS TUTORIAL BROKE YOUR PICO. THIS WILL ALSO VOID YOUR WARRANTY. PROCEED AT YOUR OWN RISK


Ok let's get started. Here's what you need:

- Pico ( of course :P )
- Torx and Philips screwdriver
- Soldering Iron
- Soldering lead

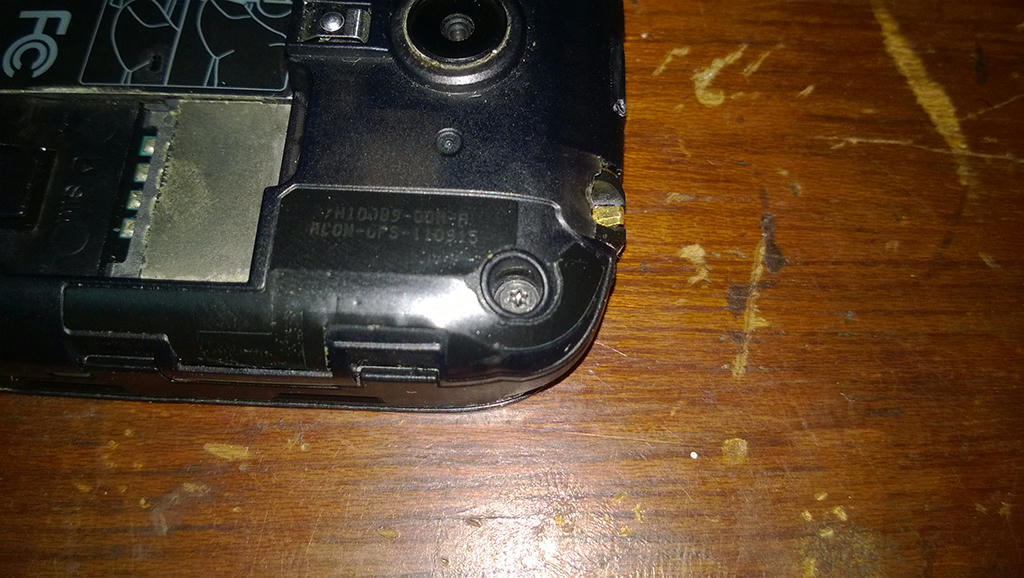

Step 1: Remove all the screws on the case using a small torx screwdriver and remove the case

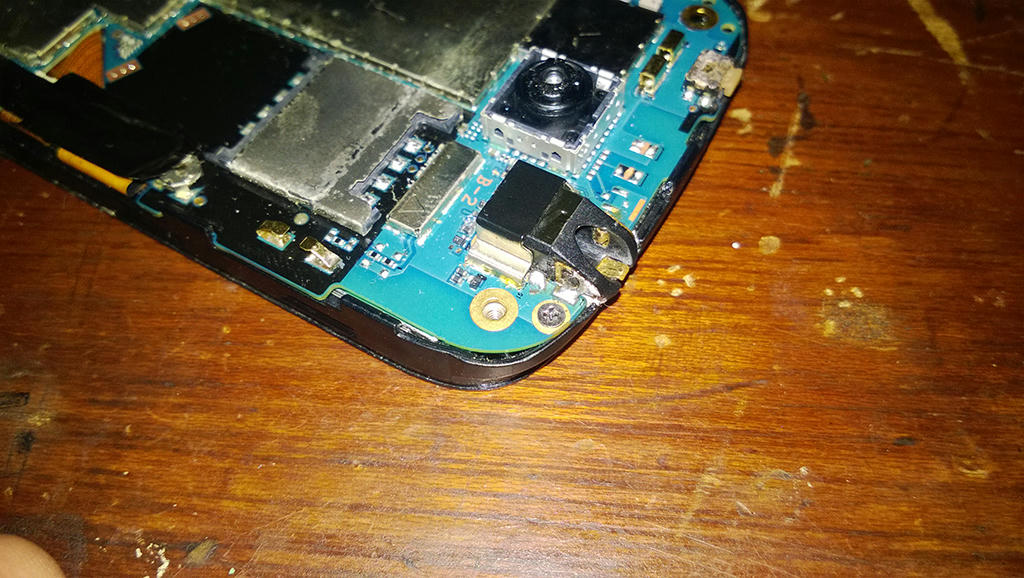

Step 2: Remove the screws on the board using philips screwdriver




Be sure to keep the screws in a safe place

Step 3: Remove those black tapes. Also keep them in a safe place...

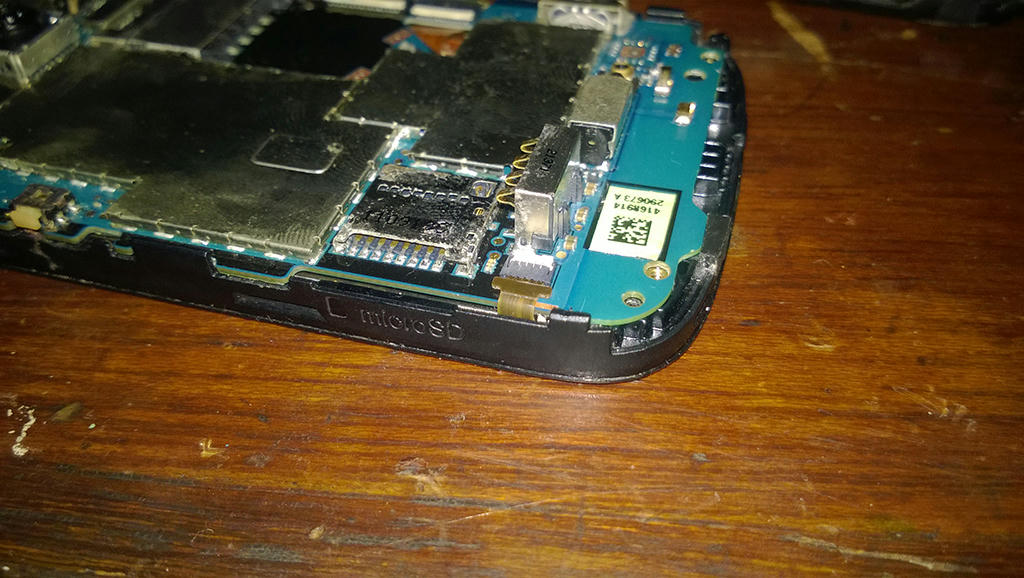

Step 4: Disconnect the Ribbon Cables...

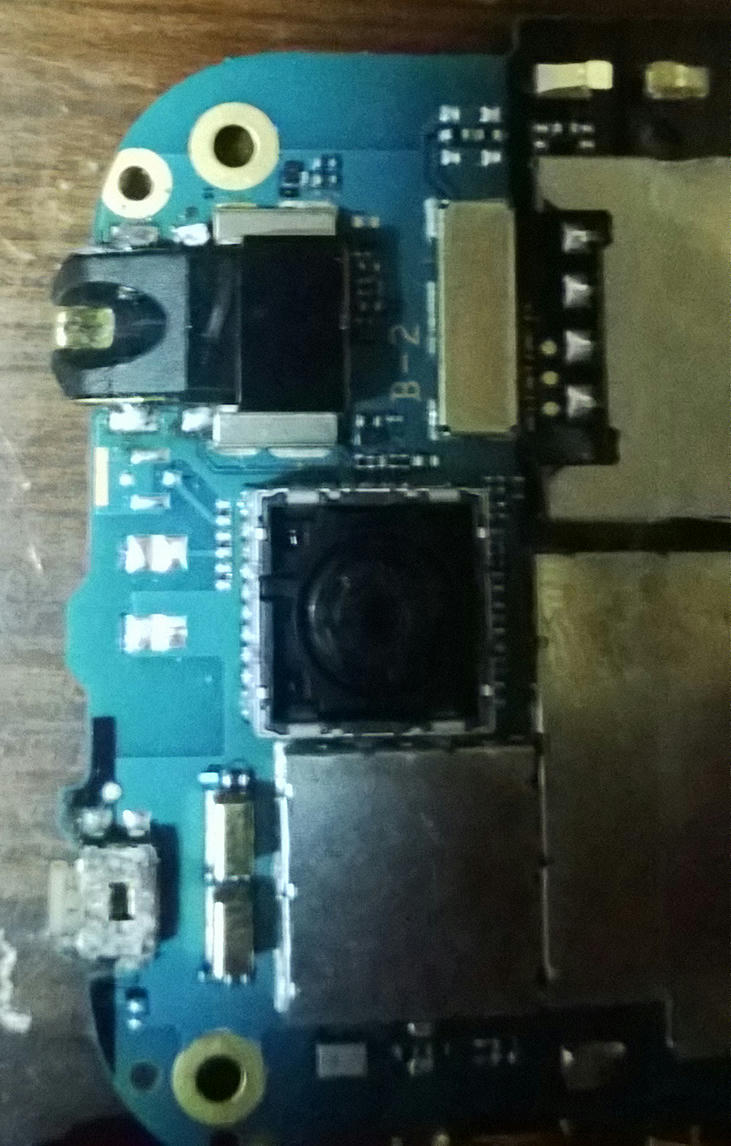

Step 5: Take out the board CAREFULLY...

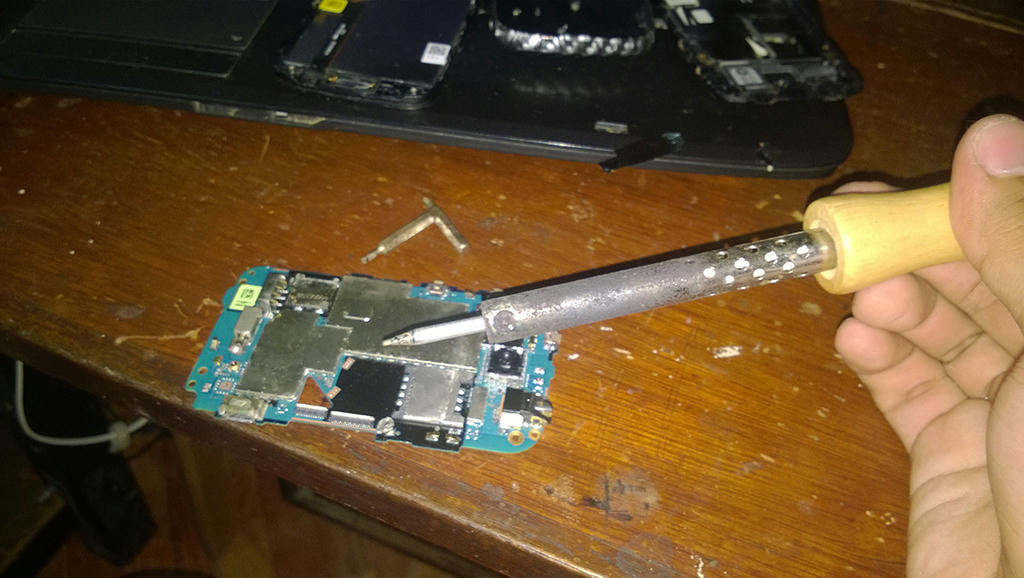

Step 6: Prepare your soldering iron and soldering lead

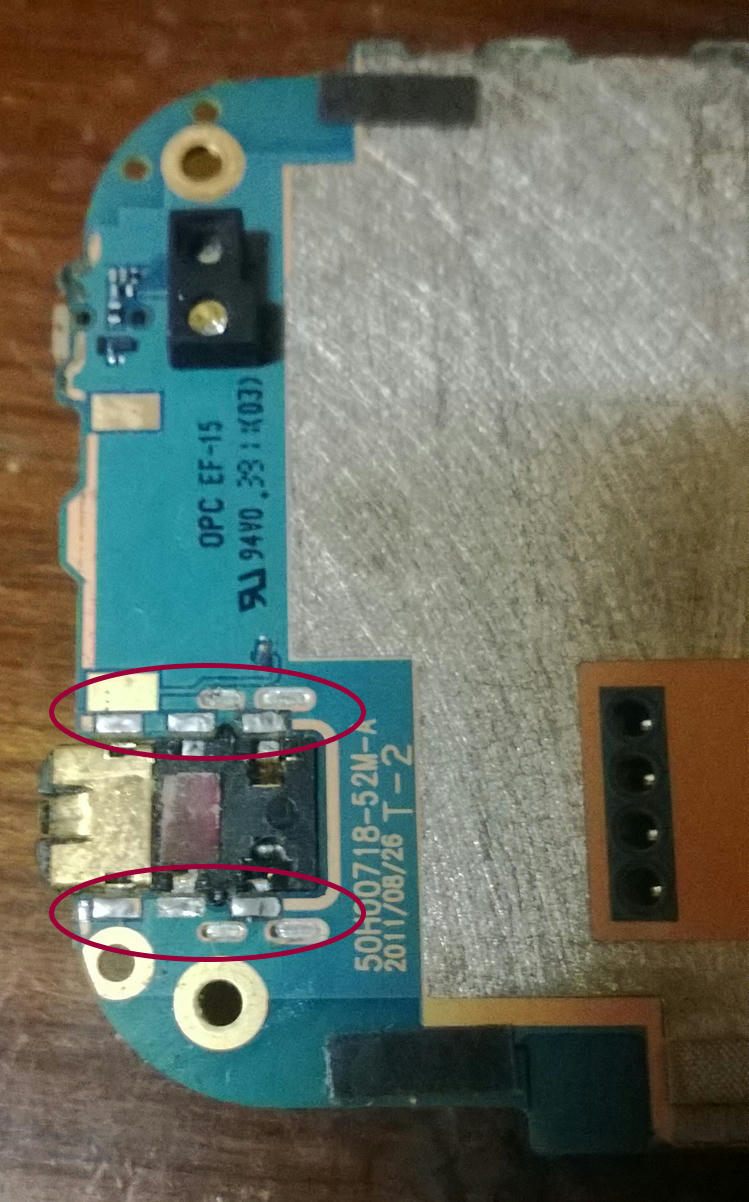

Step 7: Solder the contacts... ONLY solder the contacts pointed at the picture...




Don't apply too much solder! Solder it CAREFULLY! We don't want to short it...

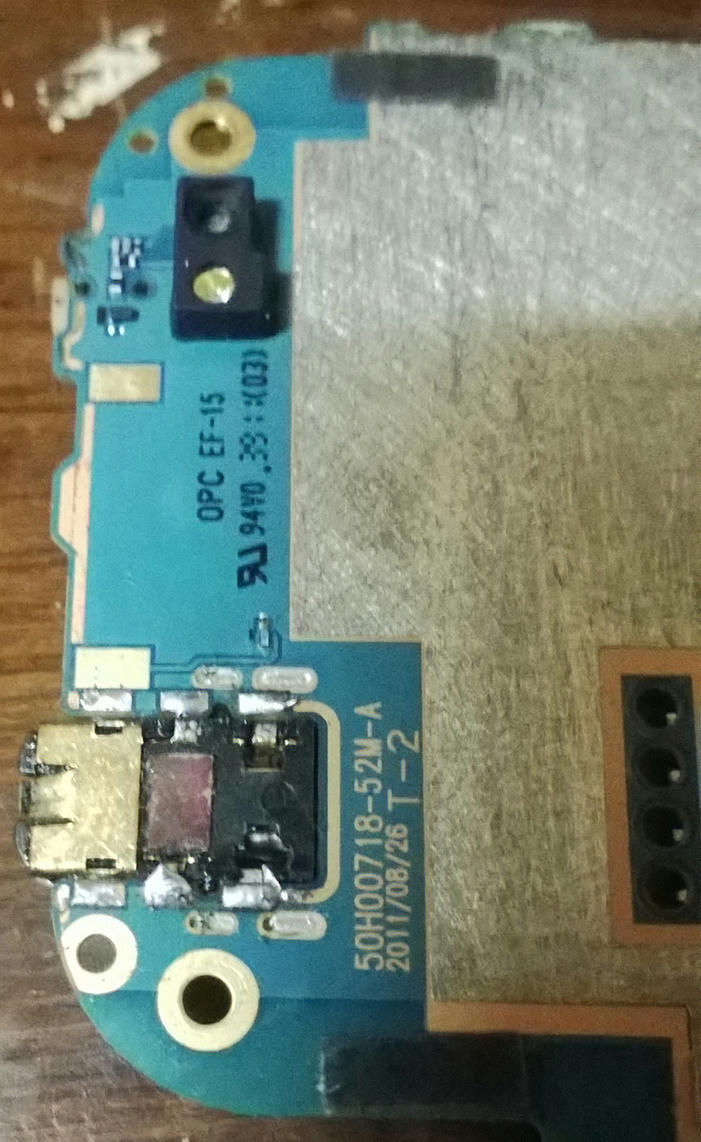

After soldering...




I'm not really that good at soldering but that gets the job done

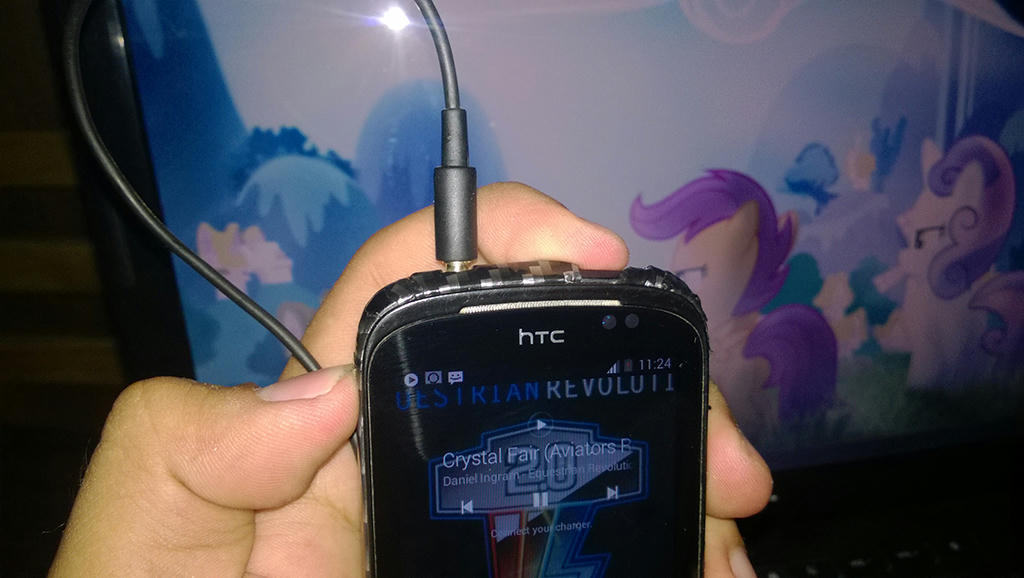

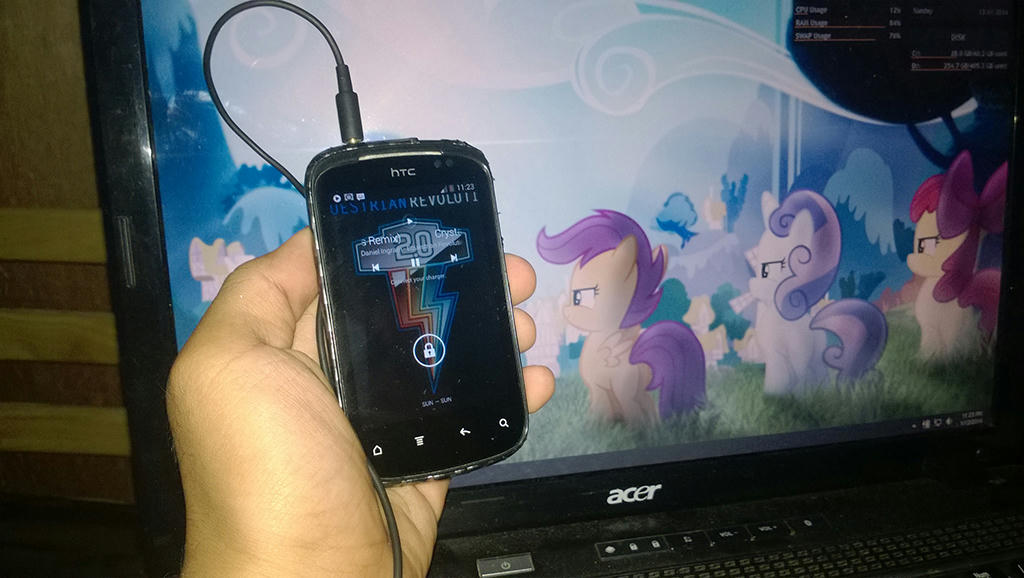

Now put your Pico back together and test it out. If this fixes your headphone connection problems, CONGRATULATIONS /) ! If not, try again








Sent from Ponyville
Hit the thanks button if I help
MY WORK:


Devices:


HTC Explorer
- CM10.2
- Aries V3.5 Kernel PLL2 OC @ 767mhz

Cherry Mobile Flare/Karbonn A9+
- My own unbloated 4.1.2 rom
- Stock 3.4.0 Kernel with init.d enabled

Huawei Ascend G510-0200
- EMUI 1.5 Rooted
- Stock 3.4.0 kernel with init.d enabled

Huawei MediaPad 10 LINK S10-201u
- Stock Rooted
- Stock 3.0.8 Kernel
The Following 11 Users Say Thank You to mrchezco1995 For This Useful Post: [ Click to Expand ]

mrchezco1995
Old
#2
mrchezco1995's Avatar
Senior Member - OP
Thanks Meter 306
Posts: 171
Join Date: May 2012
Location: Balagtas
Post /)

I'll take this spot for future purposes

Here, have a BROHOOF /)





Sent from Ponyville
Hit the thanks button if I help
MY WORK:


Devices:


HTC Explorer
- CM10.2
- Aries V3.5 Kernel PLL2 OC @ 767mhz

Cherry Mobile Flare/Karbonn A9+
- My own unbloated 4.1.2 rom
- Stock 3.4.0 Kernel with init.d enabled

Huawei Ascend G510-0200
- EMUI 1.5 Rooted
- Stock 3.4.0 kernel with init.d enabled

Huawei MediaPad 10 LINK S10-201u
- Stock Rooted
- Stock 3.0.8 Kernel
The Following 2 Users Say Thank You to mrchezco1995 For This Useful Post: [ Click to Expand ]

Chemical47
Old
#3
Chemical47's Avatar
Senior Member
Thanks Meter 31
Posts: 128
Join Date: Jul 2013
Location: Lahore
Well bro i think its too risky..BTW i will try this.
http://s5.postimg.org/qjoqn431j/HTC_EXPLORER_Sense5.png

mrchezco1995
Old
#4
mrchezco1995's Avatar
Senior Member - OP
Thanks Meter 306
Posts: 171
Join Date: May 2012
Location: Balagtas
Quote:
Originally Posted by Chemical47 View Post
Well bro i think its too risky..BTW i will try this.
Not really... You'll just solder those contacts... Just be careful when soldering it....




Sent from Ponyville
Hit the thanks button if I help
MY WORK:


Devices:


HTC Explorer
- CM10.2
- Aries V3.5 Kernel PLL2 OC @ 767mhz

Cherry Mobile Flare/Karbonn A9+
- My own unbloated 4.1.2 rom
- Stock 3.4.0 Kernel with init.d enabled

Huawei Ascend G510-0200
- EMUI 1.5 Rooted
- Stock 3.4.0 kernel with init.d enabled

Huawei MediaPad 10 LINK S10-201u
- Stock Rooted
- Stock 3.0.8 Kernel

v_superuser
Old
#5
v_superuser's Avatar
Senior Member
Thanks Meter 1,309
Posts: 468
Join Date: Jan 2013
Location: Jammu


DONATE TO ME
A big thanks Renz!



Join the HTC Desire 816 Facebook group for all Development Info and Discussion!

Code:
Select Code
<galaxyfreak> - If we had time and will to develop something, why it's so hard for you to read how to use it?
The Following User Says Thank You to v_superuser For This Useful Post: [ Click to Expand ]

shubhojit89
Old
#6
Senior Member
Thanks Meter 439
Posts: 942
Join Date: Sep 2013
Quote:
Originally Posted by #Superuser View Post
A big thanks Renz!
Very risky..:P as HTC has sensors dozens of sensors and very complex IC and integration of them..

Very Very need full and good tutorial who like listening to music but cant hear it properly due to socket.

mrchezco1995
Old
#7
mrchezco1995's Avatar
Senior Member - OP
Thanks Meter 306
Posts: 171
Join Date: May 2012
Location: Balagtas
Quote:
Originally Posted by shubhojit89 View Post
Very risky..:P as HTC has sensors dozens of sensors and very complex IC and integration of them..

Very Very need full and good tutorial who like listening to music but cant hear it properly due to socket.
Actually it isn't that risky, as you'll only solder the connections of headphone socket... If you know how to solder then you'll be fine

Quote:
Originally Posted by #Superuser View Post
A big thanks Renz!
You're welcome




Sent from Ponyville
Hit the thanks button if I help
MY WORK:


Devices:


HTC Explorer
- CM10.2
- Aries V3.5 Kernel PLL2 OC @ 767mhz

Cherry Mobile Flare/Karbonn A9+
- My own unbloated 4.1.2 rom
- Stock 3.4.0 Kernel with init.d enabled

Huawei Ascend G510-0200
- EMUI 1.5 Rooted
- Stock 3.4.0 kernel with init.d enabled

Huawei MediaPad 10 LINK S10-201u
- Stock Rooted
- Stock 3.0.8 Kernel
The Following User Says Thank You to mrchezco1995 For This Useful Post: [ Click to Expand ]

cybojenix
Old
#8
cybojenix's Avatar
Recognized Developer
Thanks Meter 1,545
Posts: 821
Join Date: Apr 2012


DONATE TO ME
I would strongly advise you apply heat syncs when doing this, otherwise you can end up frying components near the headphone socket (I've managed to do this before when using old solder that wouldn't melt easily)

Another tip, use the smallest tip you can find for the soldering iron. if all you have is a chisel tip, don't use it. it's too much risk!

lastly, make sure you clean up the old solder. don't mix new + old

I also recommend looking at some soldering guides. it's easy to do a bad solder and make stuff even worse.
