Unlocking my bootloader

Tip us?

boonwuilow
Old
#1
boonwuilow's Avatar
Senior Member - OP
Thanks Meter 7
Posts: 128
Join Date: Aug 2010
Location: Cheras
Unhappy Unlocking my bootloader

I wanted to unlock my DHD's bootloader and flash a custom rom on it with the S-On method which require me to manually flash the boot everytime i flash a rom.
But i was unable to unlock my bootloader due to i was unable to get the identifier token from fastboot... I check on HTC dev website and it require me to upgrade my bootloader, yet again... failed!
I also tried the bootloader unlocking tool and it automatically download PD9810000_Ace_Sense30_S_hboot_2.00.0029 RUU for me and the result also same as the one i downloaded from HTC dev

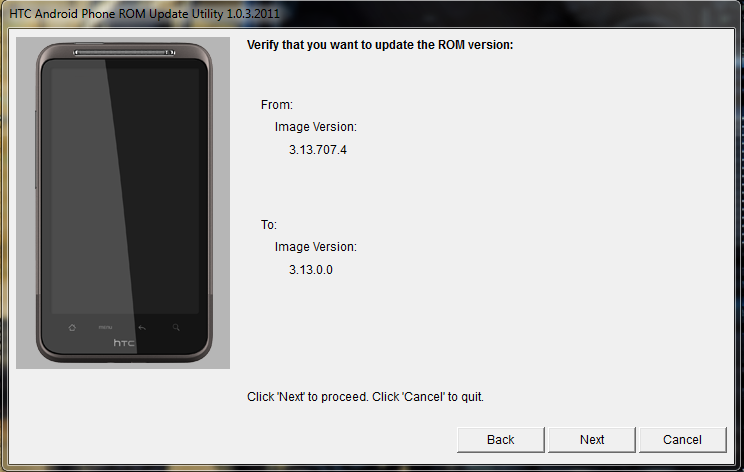

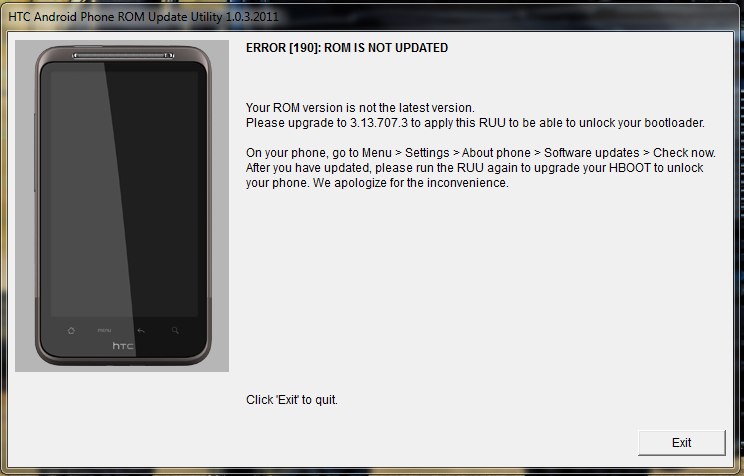

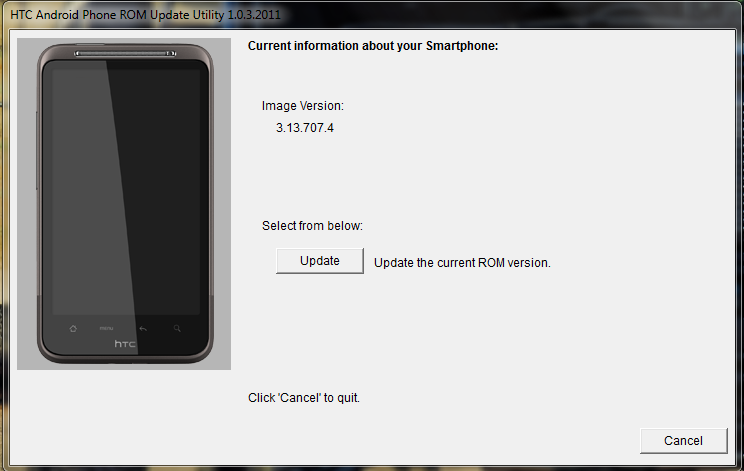

Here are some pictures:




I am on HBOOT version 2.00.0027, not sure if it was the latest though

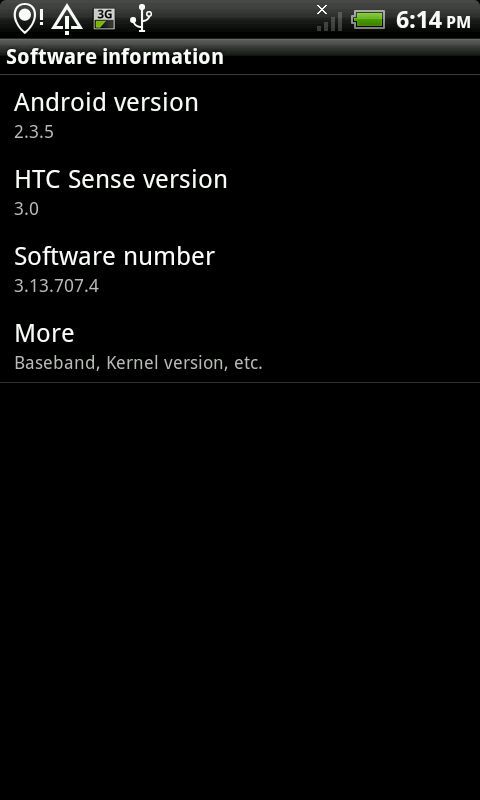

Currently i m using 3.13.707.4


As i know the previous owner did unlock and flash a custom rom on it before, and later he send it back to HTC service centre to flash it back to stock gingerbread

Any help / suggestions are appreciated and welcomed
Should download a RUU and reflash the phone?
Current devices:
HTC Butterfly X920D | Sense 5.5
HTC Desire HD | Sense 4 ROM
HTC Explorer | stock
Xiaomi Hongmi | JHBCNBD 16.0

JJeamy
Old
#2
JJeamy's Avatar
Senior Member
Thanks Meter 137
Posts: 384
Join Date: Feb 2012
Location: http://forum.xda-developers.com/usercp.php
did you already tried flashing it with different method...

you can read a guide in here..., this thread guide for htc sensation thread, but the guide is the same as for dhd too (but don't rename it like PG58IMG.zip for DHD..because this name code for sensation only, for DHD just rename it PD98IMG.zip)

just read guide especially at step 4.1 and 4.4, 4.4.1, 4.4.2

hope this help..and good luck..
press the button .. then you have proved that you really appreciate someone help

HTC Sensation XE Z715e >>S-OFF||4Ext_Recovery||ViperS 5.1.0 Sense 5 ROM
HTC Desire S>>S-OFF||4Ext_Recovery||MDDI Panel-Hopefully future development Kernel
Samsung Galaxy Y SCH-I509>>Stock
Blackberry Bellagio 9790>>Hybrid OS TheZoners_XHDTuning Series 7.1
The Following User Says Thank You to JJeamy For This Useful Post: [ Click to Expand ]

boonwuilow
Old
#3
boonwuilow's Avatar
Senior Member - OP
Thanks Meter 7
Posts: 128
Join Date: Aug 2010
Location: Cheras
Quote:
Originally Posted by JJeamy View Post
did you already tried flashing it with different method...

you can read a guide in here..., this thread guide for htc sensation thread, but the guide is the same as for dhd too (but don't rename it like PG58IMG.zip for DHD..because this name code for sensation only, for DHD just rename it PD98IMG.zip)

just read guide especially at step 4.1 and 4.4, 4.4.1, 4.4.2

hope this help..and good luck..
Thanks for your reply bro... now should i flash the RUU which contains the full ROM or just with the HBOOT?
Current devices:
HTC Butterfly X920D | Sense 5.5
HTC Desire HD | Sense 4 ROM
HTC Explorer | stock
Xiaomi Hongmi | JHBCNBD 16.0

JJeamy
Old
#4
JJeamy's Avatar
Senior Member
Thanks Meter 137
Posts: 384
Join Date: Feb 2012
Location: http://forum.xda-developers.com/usercp.php
Quote:
Originally Posted by boonwuilow View Post
Thanks for your reply bro... now should i flash the RUU which contains the full ROM or just with the HBOOT?
no..you don't needed flashing a full RUU...
just upgrade file firmware / hboot from the htc site that you're already download it..(this is will update it your hboot to version 2.00.0029)

you can try it in two way method..
1. flashing it PD98IMG.zip with fastboot method...
2. flashing it that loaded PD98IMG.zip file via bootloader from your sdcard..
press the button .. then you have proved that you really appreciate someone help

HTC Sensation XE Z715e >>S-OFF||4Ext_Recovery||ViperS 5.1.0 Sense 5 ROM
HTC Desire S>>S-OFF||4Ext_Recovery||MDDI Panel-Hopefully future development Kernel
Samsung Galaxy Y SCH-I509>>Stock
Blackberry Bellagio 9790>>Hybrid OS TheZoners_XHDTuning Series 7.1
The Following User Says Thank You to JJeamy For This Useful Post: [ Click to Expand ]

boonwuilow
Old
#5
boonwuilow's Avatar
Senior Member - OP
Thanks Meter 7
Posts: 128
Join Date: Aug 2010
Location: Cheras
Quote:
Originally Posted by JJeamy View Post
no..you don't needed flashing a full RUU...
just upgrade file firmware / hboot from the htc site that you're already download it..(this is will update it your hboot to version 2.00.0029)

you can try it in two way method..
1. flashing it PD98IMG.zip with fastboot method...
2. flashing it that loaded PD98IMG.zip file via bootloader from your sdcard..
Ok i will try that later...
So basically the bootloader that can't support HTC dev unlock (or those that require a further update) are those without the "LOCKED" or "RELOCKED" status right?
And is the AAHK2 by Phiber2000 safe to unlock, s-off and root my phone?
http://forum.xda-developers.com/show....php?t=2367322
Current devices:
HTC Butterfly X920D | Sense 5.5
HTC Desire HD | Sense 4 ROM
HTC Explorer | stock
Xiaomi Hongmi | JHBCNBD 16.0

JJeamy
Old
(Last edited by JJeamy; 16th February 2014 at 07:19 AM.)
#6
JJeamy's Avatar
Senior Member
Thanks Meter 137
Posts: 384
Join Date: Feb 2012
Location: http://forum.xda-developers.com/usercp.php
Quote:
Originally Posted by boonwuilow View Post
Ok i will try that later...
So basically the bootloader that can't support HTC dev unlock (or those that require a further update) are those without the "LOCKED" or "RELOCKED" status right?
And is the AAHK2 by Phiber2000 safe to unlock, s-off and root my phone?
http://forum.xda-developers.com/show....php?t=2367322
yap..when htc launching the latest ota update (full RUU for DHD) just had a version of bootloader 2.00.0027, that time the htc itself is not yet officially opening/launching for supporting unlocking the bootloader..because of that..the version 2.00.0027 is not yet support for unlocking..and that's why don't have a state of LOCKED in the top of that bootloader too..so to unlocking you must update bootloader first to 2.00.0029 from that website..

AAHK2 is a simple way to fully rooting and had eng hboot for your DHD...i think that's a safe too..provide it if you follow all step carefully and follow all the rules that are required from that script it self...and because i've already using that script for 6 DHD..all the result is success..even with some of that DHD had some of little troubled while running that script..but i'm still can handle it..

just a advice from me...before you begin running that script..just read carefully and understand it all inside that thread (especially about a branded sdcard that are mentioned in there thread)..and prepared all stuff that are required..

good luck...
press the button .. then you have proved that you really appreciate someone help

HTC Sensation XE Z715e >>S-OFF||4Ext_Recovery||ViperS 5.1.0 Sense 5 ROM
HTC Desire S>>S-OFF||4Ext_Recovery||MDDI Panel-Hopefully future development Kernel
Samsung Galaxy Y SCH-I509>>Stock
Blackberry Bellagio 9790>>Hybrid OS TheZoners_XHDTuning Series 7.1
The Following User Says Thank You to JJeamy For This Useful Post: [ Click to Expand ]

glevitan
Old
#7
glevitan's Avatar
Recognized Contributor
Thanks Meter 1,206
Posts: 3,271
Join Date: Nov 2011
Location: Buenos Aires


DONATE TO ME
Quote:
Originally Posted by boonwuilow View Post
I wanted to unlock my DHD's bootloader and flash a custom rom on it with the S-On method which require me to manually flash the boot everytime i flash a rom.
But i was unable to unlock my bootloader due to i was unable to get the identifier token from fastboot... I check on HTC dev website and it require me to upgrade my bootloader, yet again... failed!
I also tried the bootloader unlocking tool and it automatically download PD9810000_Ace_Sense30_S_hboot_2.00.0029 RUU for me and the result also same as the one i downloaded from HTC dev

Here are some pictures:




I am on HBOOT version 2.00.0027, not sure if it was the latest though
Currently i m using 3.13.707.4


As i know the previous owner did unlock and flash a custom rom on it before, and later he send it back to HTC service centre to flash it back to stock gingerbread

Any help / suggestions are appreciated and welcomed
Should download a RUU and reflash the phone?
If your build vesion is not supported to update the bootloader, you will need create a goldcard in order to flash a RUU with a build version that supports unlocking. That is the way...takes time and S-OFF is a better option IMO
Phone: Samsung Galaxy Note II
Rom: Stock
Tablet: Asus Transformer Pad Infinity tf700t - Got rid of this one...performance sucked
Tablet: Nexus 7 2013 - Now we are talking

Easy Ace Root Tool
HTC Desire HD / Inspire 4G Ultimate Noob Guide
OneClickRoot Galaxy Note (GT-N7000)
HTC Easy Unlock Bootloader Tool
Goldcard img Creator

boonwuilow
Old
#8
boonwuilow's Avatar
Senior Member - OP
Thanks Meter 7
Posts: 128
Join Date: Aug 2010
Location: Cheras
Quote:
Originally Posted by JJeamy View Post
yap..when htc launching the latest ota update (full RUU for DHD) just had a version of bootloader 2.00.0027, that time the htc itself is not yet officially opening/launching for supporting unlocking the bootloader..because of that..the version 2.00.0027 is not yet support for unlocking..and that's why don't have a state of LOCKED in the top of that bootloader too..so to unlocking you must update bootloader first to 2.00.0029 from that website..

AAHK2 is a simple way to fully rooting and had eng hboot for your DHD...i think that's a safe too..provide it if you follow all step carefully and follow all the rules that are required from that script it self...and because i've already using that script for 6 DHD..all the result is success..even with some of that DHD had some of little troubled while running that script..but i'm still can handle it..

just a advice from me...before you begin running that script..just read carefully and understand it all inside that thread (especially about a branded sdcard that are mentioned in there thread)..and prepared all stuff that are required..

good luck...
Quote:
Originally Posted by glevitan View Post
If your build vesion is not supported to update the bootloader, you will need create a goldcard in order to flash a RUU with a build version that supports unlocking. That is the way...takes time and S-OFF is a better option IMO
I have successfully unlock the bootloader by the method @JJeamy show me, thank you very much for guiding me on how to unlock it

Actually the process isn't very hard just go to HTC dev and download the bootloader that match your build number and manually flash the update by using fastboot and proceed to unlock the phone as instructed on htc dev
Current devices:
HTC Butterfly X920D | Sense 5.5
HTC Desire HD | Sense 4 ROM
HTC Explorer | stock
Xiaomi Hongmi | JHBCNBD 16.0
The Following User Says Thank You to boonwuilow For This Useful Post: [ Click to Expand ]

JJeamy
Old
#9
JJeamy's Avatar
Senior Member
Thanks Meter 137
Posts: 384
Join Date: Feb 2012
Location: http://forum.xda-developers.com/usercp.php
Quote:
Originally Posted by boonwuilow View Post
I have successfully unlock the bootloader by the method @JJeamy show me, thank you very much for guiding me on how to unlock it

Actually the process isn't very hard just go to HTC dev and download the bootloader that match your build number and manually flash the update by using fastboot and proceed to unlock the phone as instructed on htc dev
glad to hear that...and congrats..
press the button .. then you have proved that you really appreciate someone help

HTC Sensation XE Z715e >>S-OFF||4Ext_Recovery||ViperS 5.1.0 Sense 5 ROM
HTC Desire S>>S-OFF||4Ext_Recovery||MDDI Panel-Hopefully future development Kernel
Samsung Galaxy Y SCH-I509>>Stock
Blackberry Bellagio 9790>>Hybrid OS TheZoners_XHDTuning Series 7.1

dr.patron99
Old
#10
Senior Member
Thanks Meter 201
Posts: 275
Join Date: Dec 2013
Location: Dortmund
Thumbs up Awesome

@JJeamy
I'm proud that you wrote that much,if i was in your place i would only redirects @boonwuilow to that chinese software the one i told you easy way to unlock bootloader.
