[APP] Flash Image GUI

Tip us?

joeykrim
Old
(Last edited by joeykrim; 11th August 2013 at 02:35 AM.) Reason: Updated for version 1.2.1 support
#1
Recognized Developer - OP
Thanks Meter 1261
Posts: 1,929
Join Date: Jan 2009
Default [APP] Flash Image GUI

Credits:
birbeck for the usual random java guidance, slushpupie for his previous java guidance, dodgejcr for extreme amounts of testing, and one_love_420 and shift for some great graphics!
testers: JT-, couga6442, happytweak and many others I might have forgot in the last three days of late nights and no sleep plus full day of work!
Thanks to SDX !!

Requires:
Unlocked bootloader and root access!

Background:
flash_image (bmlwrite) is an extremely useful utility for flashing custom kernels, boot logos and recoveries. This binary has made it possible to easily flash all these items and is used almost everywhere behind the scenes (i.e. in custom recoveries, packaged into kernel /sbin, etc).

Description:
This android application, FlashImageGUI, is basically a GUI interface for the linux binary, flash_image provided by google in AOSP for loading custom kernels and recovery images onto the phone. No recovery or adb needed! Flash a custom kernel, boot logo (some devices) and custom recovery all from android w/o rebooting into recovery mode!
The application displays current kernel version information!

Current Device Support:
Full Kernel (Anykernel and boot.img) Flashing and Recovery (zip file or image) flashing: Sprint Galaxy S4, International HTC One, T-Mobile HTC One, Sprint HTC One, HTC EVO 4G LTE, HTC One S, HTC EVO 3D CDMA and GSM, HTC One XL, HTC Droid DNA, HTC Amaze, HTC Vivid/Holiday, HTC EVO 4G, HTC EVO Shift, Google Nexus 4, Google Nexus 10, Google Nexus 7, Samsung Google Galaxy Nexus, Nexus S/Nexus S 4G & LG Optimus
Full Kernel, Logo and Recovery flashing: Samsung Moment, Transform, Intercept and Acclaim - the s3c6410 series of devices
Full Kernel (zImage) Flashing: Samsung Epic
Check application version for updates

Future Support:
The current phone support limitation is due to hardware manufacturer differences and their software implementations. This process can be very dangerous and I'm being very caution by thoroughly testing before releasing. I've started with the phones I am most familiar and hope to cover all those who request it!
I have a personal list of features I am going to be adding over the coming days and weeks in addition to support for other phones. Please feel free to leave feedback here and requests for phone support. If you have any information on flash_image or bmlwrite for your phone, that'll help get me started researching on your phone support request. Thanks!

Install Directions:
Install process is the same as any other .apk. Download to computer and adb push or mount sdcard on computer and copy over. Use any file manager, adb, connectbot/terminal emulator to install.
My preferred method, maybe a bit technical: adb install c:\downloads\FlashImageGUI.apk

Download Locations
Market (99 cents!): Flash Image GUI
Release versions (free from my personal hosting): Flash Image GUI

Contact:
Any questions, comments, concerns, or issues, please post in this thread or send me an email! Thanks for all the help and support!
http://twitter.com/joeykrim
http://joeykrim.com

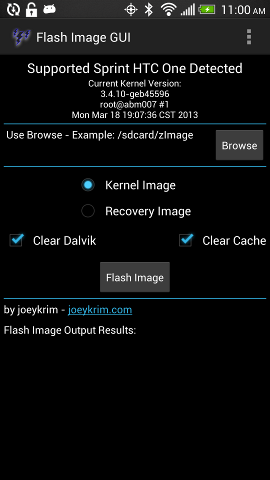

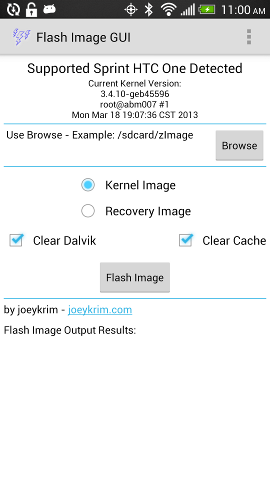

Screenshots:






Feedback:
Please post any helpful feedback. I'm always looking to improve the application!

Users Guide for flashing ONLY a Kernel (zip file):
1) Ensure the bootloader is unlocked and root access is properly setup
2) Make sure the selected Kernel is compatible with the currently loaded ROM. If not, this will result in a lot of frustration!!! See troubleshooting steps below.
3) Download kernel zip file to /sdcard.
4) Open Flash Image GUI, browse and select kernel zip file, downloaded/loaded to sdcard in previous step.
5) Flash Image GUI will validate the kernel zip file is contains the minimum required files
6) Select the Flash Image button and Flash Image GUI will load the kernel and the kernel modules from the source kernel zip file.
7) Reboot

Troubleshooting after Rebooting:

First step, when experiencing issues flashing is to RE FLASH the files again. Many times, re flashing again will clear up any issues. If not, see the issues/solutions below.

Issue #1: If the device hangs or reboots while on the splash screen, the kernel itself or the ramdisk packaged in the kernel is NOT compatible with your device!!!
Solution for #1: Have to boot into fastboot (or directly into the custom recovery) and load the custom recovery to flash a known good kernel or restore a previously known good nandroid backup. Command: fastboot boot c:\downloads\cwm-recovery.img
Issue #2: If the device hangs or reboots while on the boot animation, the ROM is likely NOT compatible with the kernel!!!
Solution for #2: Have to boot into fastboot and load the custom recovery to flash a known good ROM/kernel combination either from a zip file or restore from a nandroid backup.
The Following 29 Users Say Thank You to joeykrim For This Useful Post: [ Click to Expand ]

jdyates
Old
#2
Senior Member
Thanks Meter 5
Posts: 229
Join Date: Jun 2010
Location: Weslaco
Im curious, why does this only work on certain phones? I need a way to flash a recovery to my Tmobile Comet (Huawei Ideos U8150). Thanks
Black HTC Amaze 4G--->S-ON, Stock ICS

joeykrim
Old
#3
Recognized Developer - OP
Thanks Meter 1261
Posts: 1,929
Join Date: Jan 2009
Quote:
Originally Posted by jdyates View Post
Im curious, why does this only work on certain phones? I need a way to flash a recovery to my Tmobile Comet (Huawei Ideos U8150). Thanks
great question. I've updated the OP to answer this better.
essentially each hardware manufacturer is able to use their own type of drivers in dealing with the phones internal memory and in formatting the phones internal file system.
this allows for many different variations. the specific phones I support are the ones I was able to obtain a flash_image binary for (hence the name flash_image) and was able to extensively test.
if you any information to the flash_image binary for your phone, i'd be more than happy to research it and adding support to the app!
i've worked day/night the last three days to put this app together and had a ton of testing. i do hope to continue to add support for more phones! thanks for the feedback and phone support suggestion! i will definitely look into it and any help you can provide would be great!
The Following User Says Thank You to joeykrim For This Useful Post: [ Click to Expand ]

dancer_69
Old
#4
Senior Member
Thanks Meter 221
Posts: 1,857
Join Date: Jan 2007
Here is the flash_image binary for Tattoo,
please add it to supported devices, thanks.
Attached Files
File Type: rar Tattoo-flash_image.rar - [Click for QR Code] (7.0 KB, 225 views)
LightsOnOff

Torch directly from shortcut!

mattallica76
Old
#5
mattallica76's Avatar
Senior Member
Thanks Meter 321
Posts: 2,338
Join Date: Jun 2010
Location: Hanover, Pa
How soon before the Epic 4G gets some love?
.
.




lovleshgarg
Old
#6
Senior Member
Thanks Meter 61
Posts: 173
Join Date: Jul 2010
Samsung galaxy spica gt-i5700 also use same s3c6410 chip. Will this work on it??

Sent from my GT-I5700 using Tapatalk

austontatious
Old
#7
Senior Member
Thanks Meter 22
Posts: 189
Join Date: Jun 2010
I have a viewsonic gtab and I HATE the splash screen - would love to see it supported. My 2c... great tool! Thanks!

jdyates
Old
#8
Senior Member
Thanks Meter 5
Posts: 229
Join Date: Jun 2010
Location: Weslaco
Quote:
Originally Posted by joeykrim View Post
great question. I've updated the OP to answer this better.
essentially each hardware manufacturer is able to use their own type of drivers in dealing with the phones internal memory and in formatting the phones internal file system.
this allows for many different variations. the specific phones I support are the ones I was able to obtain a flash_image binary for (hence the name flash_image) and was able to extensively test.
if you any information to the flash_image binary for your phone, i'd be more than happy to research it and adding support to the app!
i've worked day/night the last three days to put this app together and had a ton of testing. i do hope to continue to add support for more phones! thanks for the feedback and phone support suggestion! i will definitely look into it and any help you can provide would be great!
Thanks for the detailed reply, you dont see that alot from app devs these days.

Unfortunately, i have no idea what a flash binary is for my phone or how to get it. Oh well. Thanks again
Black HTC Amaze 4G--->S-ON, Stock ICS

joeykrim
Old
#9
Recognized Developer - OP
Thanks Meter 1261
Posts: 1,929
Join Date: Jan 2009
Quote:
Originally Posted by dancer_69 View Post
Here is the flash_image binary for Tattoo,
please add it to supported devices, thanks.
perfect! recovery image support should be simple.
kernel flashing methods seem to vary quite a bit between devices. could you post links up to two/three popular kernels so i can see the format they're using?

Quote:
Originally Posted by mattallica76 View Post
How soon before the Epic 4G gets some love?
great question! i hope to get this supported within the next week as ill be on my honeymoon the next 5 days w/o internet...i know, tough but worth it
if you have the information handy, could you post links to two/three top kernels so I can examine their format?

Quote:
Originally Posted by lovleshgarg View Post
Samsung galaxy spica gt-i5700 also use same s3c6410 chip. Will this work on it??

Sent from my GT-I5700 using Tapatalk
yes, i had thought about this but didn't know anybody with the phone. supporting this phone should be very simple as it uses that same chip set. could you post a link to a pastebin of this command:
adb shell ls -l /
to double check, flash_image on the spica also does zImage (kernel), logo.png (boot logo) and recovery.rfs (recovery) right?
thanks!

Quote:
Originally Posted by austontatious View Post
I have a viewsonic gtab and I HATE the splash screen - would love to see it supported. My 2c... great tool! Thanks!
great, this seems to be popular. i have been looking into this and will keep you updated! i hope to get support added for this soon!
The Following 2 Users Say Thank You to joeykrim For This Useful Post: [ Click to Expand ]

feefeeboomboom
Old
#10
feefeeboomboom's Avatar
Senior Member
Thanks Meter 42
Posts: 532
Join Date: Jan 2010
Location: Fargo
Default for you

hi joeykrim. you do good work man.

attatched is 3 things.

1.flash_image binary for the Epic 4g SPH-D700

2.redband_ua, the method we use to flash kernels

3.zImage, i compiled from source and use

we run on EXT4 mostly these days

I and a few other developers use a scripting process to flash kernels without recovery. if want these pm me.
Attached Files
File Type: zip thethreefiles.zip - [Click for QR Code] (6.24 MB, 107 views)
DEVICE:
  • Sprint Epic 4G SPH-D700
SOFTWARE:
  • DevoidV0.3

LOL
