[Odin][Rom][6/20/11]AC's Altered Beast **Alpha 5**EE4 based

Tip us?

DroidXcon
Old
(Last edited by DroidXcon; 28th June 2011 at 07:21 AM.)
#1
Senior Member - OP
Thanks Meter 127
Posts: 262
Join Date: Oct 2010
Default [Odin][Rom][6/20/11]AC's Altered Beast **Alpha 5**EE4 based

THREAD INDEX:
POST #1 = ROM info and download
POST #2 = How to extract a compressed file
POST #3 = Directions on flashing odin written and visual
POST #4 = TroubleShooting
POST #5 = Random post lol
POST #5 = Credits

Quote:
Original content from AC:http://forum.androidcentral.com/char...-ed2-root.html
you will find me there most of the time.


Quote:
XDA, jt1134, nor myself are responsible for modification done to your phone. This includes, bricking, exploding, spontaneous combustion, or it running away with your significant other!!!
Quote:
EXTRA SPECIAL THANKS TO jt1134 FOR DEVELOPING THE FIRST VOODOO KERNEL. NOTE I WAS NOT INVOLVED WITH THE DEVELOPMENT OF THIS KERNEL.
PLEASE BE KIND THIS IS MY FIRST ROM


This Rom is SUPER ALPHA so do not tell me that you want this or that give me a chance to work on it please.
[/quote]
[Note]


This ROM is fully Deodexed, but only Partially debloated as time goes on i will keep debloating deeper and deeper.

List of thing to do:

[S]ED2 update[/S]
[S]Full Deodex[/S]
[S]Full Debloat[/S]
[S]Black Status Bar[/S]
[S]Dark themed Market[/S]
[S]Dark google search[/S]
[S]Change Colors on touchwiz theme[/S] (Work in progress but accomplished)
[S]Remove touchwiz launcher[/S]
[S]Replace Launcher[/S] (Launcher Pro for now)
[S]Quickboot app[/S] (to boot into clockwork)
[S]AOSP unlock screen[/S] (courtesy of nitsuj17)
Accurate battery mod (courtesy of nitsuj17)
[S]Clockwork recovery[/S] (Modified by jt1134 )
[S]Voodoo ext4 lagfix[/S] (courtesty of jt1134)
Themed Dialer
Themed Swype
Altered Beasts Themed Dock and Icons
[S]Transparent notification pull down[/S]
Animated text notifications
Power button boot options[/note]

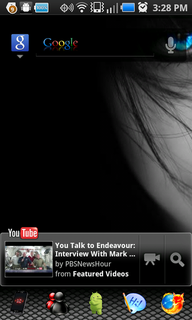

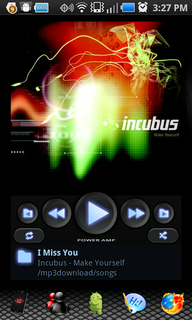

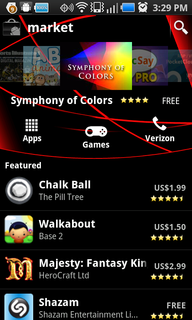

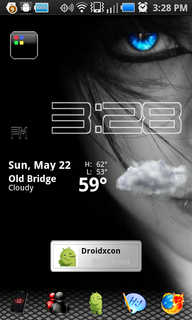

[INFO]THIS IS THE GOAL TO WHAT THIS ROM WILL LOOK LIKE, IT IS NOT THERE YET SO DONT ASK WHY IT DOESNT LOOK LIKE THIS PLEASE

[/INFO]

For those that ask if there is lag


This is still an ALPHA build so please do not be to critical, it needs alot of themeing to be done and there is more i need to put on but i think everyone will be happy with the direction this is going with. This is inludes everything Striked off the list of things to include above.

After flashing it will boot right into clockwork, press power to reboot. Clearing cache partition and Dalvik is not a bad idea but if you dont it wont hurt anything.


[tip]If you do not already have voodoo installed boot time should be 5-7 mins do not panic just be patient.[/tip]

DOWNLOAD Altered Beast voodoo+cwm here:




Code:

Altered Beast Alpha 5 (to be flashed in CWM) this does not contain a kernel but is a full system flash not a patch


Change log 6/20
Hulu (on boot, before you sign into google, go to settings privacy and make sure auto restore is not checked. Also make sure flash doesnt update)
voodoo control app
alot of themeing by gunner and myself
new tv shutdown animation that i modded up
charging fixed
aosp launcher themed up by me
Teamnew widget added
Androphile wallpapers added
icons added to /system/icons may need ES explorer or root explorer to get to them

For those of you who dont know how to use clockwork there is plenty of info on this site, otherwise wait till tonight or tomorrow and i will be opening a new altered beast thread as this one is cluttered[/code][/CODE]




Change log: 5/27
Clock fixed
Voice input fixed
Partially themed
Flying windows added


Change log:5/26

Calendar fixed
Visual voicemail fixed
Dark Angel USB mod made
Carbon fiber quickpanel added

Hulu Patch: (Flash with clockwork)
AlteredBeast_Hulu_patch.zip



apks :(move to /system/app folder then reboot your device)
Calendarprovider.apk
VVMservices.apk
DeskCradle.apk
GoogleCalendarsyncAdapter.apk To fix Calendar problems
The Following 14 Users Say Thank You to DroidXcon For This Useful Post: [ Click to Expand ]

DroidXcon
Old
#2
Senior Member - OP
Thanks Meter 127
Posts: 262
Join Date: Oct 2010
Extracting a compressed file (ex. zip or rar)

1.) Download and install Winrar HERE

2.) Locate the compressed file you would like to extract


3.)Right mouse click on the file icon a drop down menu will appear , select Extract Here


4.) You will then see a progress pop up window that will appear then when completed will close itself


5.)This will leave an extracted file in the destination folder

Congrats you have successfully extracted the compressed file it is now ready for use
The Following User Says Thank You to DroidXcon For This Useful Post: [ Click to Expand ]

DroidXcon
Old
#3
Senior Member - OP
Thanks Meter 127
Posts: 262
Join Date: Oct 2010
To install ODIN packages on your device
1.Download and install drivers on your computer HERE
2. Next you will need to download the Altered Beast zip file from post #1 which will be extracted and placed in the PDA section of ODIN:
3.) You will need to download the ODIN application tool found here ODIN or ODIN MIRROR
4) Extract the Altered Beast zip file to get the .tar.md5 file
5.) If your phone is plugged into your computer, unplug it now.
6.) If your phone is not powered down, power it down now.
7.) Remove battery from phone.
8.) Launch ODIN on PC.
9.) Plug USB cable into phone.
10.) Plug your Droid Charge into the PC via the USB cable that came with your phone.
11.) Press and hold the volume down key until (approx 3 secs) you see a gigantic yellow triangle on your phone, and your phone will be in download mode. The first thin rectangle in the upper left of the ODIN applicate should also turn yellow and identify a com port. You can now release the volume key.

12.) Click on the PDA button in ODIN

Triple check that you pushed the PDA button. Do NOT click the Phone button prior to continuing to step 13. If you choose Phone, you will have bought your Fascinate a one-way ticket to hell.

13.) Find and double click on the Altered Beast .tar.md5 file you downloaded & click the Start button. (This should take approx 3 to 6mins)
14.) Phone will power down when finished.
15.) Close ODIN, remove USB cable from phone, reinsert battery, power on phone and let ROM fully load.
[TIP]It may boot into stock recovery simply Press the home button to reboot
It is also advised to wipe cache partition while you are in recovery [/TIP]


************************************************** ************************************************** **************************************
[INFO]Visual Instructions [/INFO]
First you must download
Odin v1.3


Once odin is downloaded open it, its an executable file so when you open it you will see the following :



Once this is up, do the following
-Remove the battery from your Device
-Plug in the USB cord
-Hold down the Volume Down button until you see a big bright triangle on your screen , underneath it will say Downloading and beneath that it will say Do not turn off target



At this point you will see one of the boxes in the corner turn yellow, letting you know there is a connection, it will look like this


after you are connected you want to hit the PDA button, NEVER PHONE, phone will erase your modem and you will have trouble connecting after that at all.


when you click the PDA button a pop up will appear and you will need to select the file you would like to flash and then click open



now you will see the file appear in the PDA window ,, with connection made and the file in the PDA window, you may now hit Start



Once you hit start this process Should take approx. 5 mins if you are returning to stock . shouldnt take any less time than that and not much more. So dont start freaking out at min 2...(wait till min 7) lol

If you are flashing a Clockworkmod file it should take approx 7seconds.

once it is completed you should see the following window:




Once you have reached this screen it is safe to unplug , put your battery in and boot up..
The Following 11 Users Say Thank You to DroidXcon For This Useful Post: [ Click to Expand ]

DroidXcon
Old
#4
Senior Member - OP
Thanks Meter 127
Posts: 262
Join Date: Oct 2010
Trouble Shooting

Odin application displays one of the following in message box OR Odin is locking up in the middle of the process
Quote:
<OSM> All threads completed. (succeed 0 / failed 0)
Quote:
<OSM> All threads completed. (succeed 0 / failed 1)
Resolution
90% of problems associated with Odin are due to communication between phone and computer

  • Reboot your computer
  • Redownload the odin package
  • Use USB ports in the back of the computer, if you already are use a different port
  • Make sure you did not forget to remove battery from phone (Should be out the ENTIRE process)
  • make sure Odin is the only application running and Antivirus is DISABLED
  • If you are using a laptop make sure its plugged in also find the nearest desktop and try from there

************************************************** **************************
After failed flash with odin upon power up the following is depicted on the screen

SOFT BRICK


Resolution
First off DO NOT PANIC. there is a simple solution, just remove the battery , plug the phone into the computer, press and hold volume down and it will enter download mode. Please review all the steps oulined in this thread and try and flash again
The Following 2 Users Say Thank You to DroidXcon For This Useful Post: [ Click to Expand ]

DroidXcon
Old
(Last edited by NotATreoFan; 27th May 2011 at 04:36 AM.) Reason: merging back in order
#5
Senior Member - OP
Thanks Meter 127
Posts: 262
Join Date: Oct 2010
Credits
  • AC Member drewwalton19216801 for assistance deodexing
  • AC Adviser Paul627g giving instructions on themeing
  • AC Moderator Ragnarox for overall advise on Roms
  • AC Super Moderator gbhil for assistance on pushing deodexed folders to system without clockwork
  • XDA Developer jt1134 for developing the Voodoo Kernel
  • XDA Developer nitsuj17 for aosp lockscreen mod

Grillrd
Old
#6
Senior Member
Thanks Meter 30
Posts: 196
Join Date: Aug 2010
Location: Pennsylvania
So we can't install this through cwm right(if we already have it)?

Sent from my SCH-I510 using Tapatalk

DroidXcon
Old
#7
Senior Member - OP
Thanks Meter 127
Posts: 262
Join Date: Oct 2010
Quote:
Originally Posted by Grillrd View Post
So we can't install this through cwm right(if we already have it)?

Sent from my SCH-I510 using Tapatalk

no i honestly i am not sure how to make it in zip flashable form yet hopefully a developer will show mercy upon me lol and show me how its done
The Following User Says Thank You to DroidXcon For This Useful Post: [ Click to Expand ]

ColSaulTigh
Old
(Last edited by ColSaulTigh; 26th May 2011 at 03:28 AM.)
#8
Member
Thanks Meter 18
Posts: 65
Join Date: May 2011
Location: Lake Mary, FL
I'm game!

Downloading now.

Just wanted to give y'all a big "THANKS" for all you do!

This is the first time I've flashed a ROM in a long time. SO far, it's been fun - let's see what this one does!

EDIT #1

WooHoo!

After rebooting, it booted into recovery mode (Red Text), so I just rebooted, and it went to the "Red Eye", and about 2 minutes later, we're golden!

BTW, the boot animation is still 'glitchy'. Could this be from my original flashing of v4 Kernel?

EDIT #2

Looks like email is missing....no ability to add either POP email or Exchange email, unless I'm missing something.

Grillrd
Old
#9
Senior Member
Thanks Meter 30
Posts: 196
Join Date: Aug 2010
Location: Pennsylvania
Thank you for the ROM ...loaded up perfectly. Are you planning on keeping the background image for the notification pull down or going with a solid color/transparent?
The Following User Says Thank You to Grillrd For This Useful Post: [ Click to Expand ]

mylasthope
Old
#10
Senior Member
Thanks Meter 6
Posts: 354
Join Date: Jul 2008
Rom is amazing.
HTC ReZound
S-Off

Transformer Prime
RMA'd since 4/26/12. =(
