ALL JIG VALUES here!

Tip us?

AdamOutler
Old
(Last edited by AdamOutler; 3rd June 2011 at 01:43 AM.)
#1
AdamOutler's Avatar
Recognized Developer - OP
Thanks Meter 9593
Posts: 5,189
Join Date: Feb 2011
Location: Louisiana


DONATE TO ME
Default ALL JIG VALUES here!

I've found the datasheet for the FSA9280 online today. So, now I can post about it.
http://www.mediafire.com/?d4e21efhuktctcb

This datasheet is valid for all GalaxyS and GalaxySII devices.

Ok... So, first off.. A JIG is the line on the FSA chip which leads to the processor. The JIG line is usually high. Any resistor which makes that line go LOW is a JIG resistor.

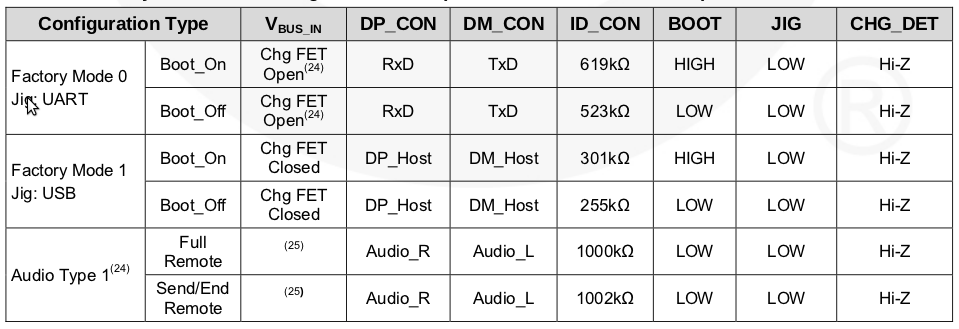

These are the JIG values. They are used on the usb port between pins 4(X or ID) and pin 5(ground).


Here are the rest:
Flash with Odin on Windows, Linux and Mac. Use JOdin3, Available in a web browser or offline
Check out my developer pages. Add me to your circles on Google Plus.
Wanna see the longest Linux BASH script ever made? click here.
The Following 22 Users Say Thank You to AdamOutler For This Useful Post: [ Click to Expand ]

chrisrotolo
Old
#2
chrisrotolo's Avatar
Senior Member
Thanks Meter 453
Posts: 1,850
Join Date: Nov 2010
Location: Hartford, Connecticut


DONATE TO ME
#WINNING!

genius, best of Luck!

go @Lulzsec!

othermark
Old
#3
othermark's Avatar
Senior Member
Thanks Meter 65
Posts: 208
Join Date: Sep 2010
Location: WA
Ok, so obviously the most interesting is the the factory mode boot on UART. Good stuff.

itskapil
Old
#4
Senior Member
Thanks Meter 58
Posts: 214
Join Date: Apr 2010
Location: Bhilwara
Didn't get much, but would be very happy if this helps in the development of devices/JIGs that would help in unbricking the dead devices. And this what is intended of all this, as I get it.

AdamOutler
Old
(Last edited by AdamOutler; 3rd June 2011 at 10:35 PM.)
#5
AdamOutler's Avatar
Recognized Developer - OP
Thanks Meter 9593
Posts: 5,189
Join Date: Feb 2011
Location: Louisiana


DONATE TO ME

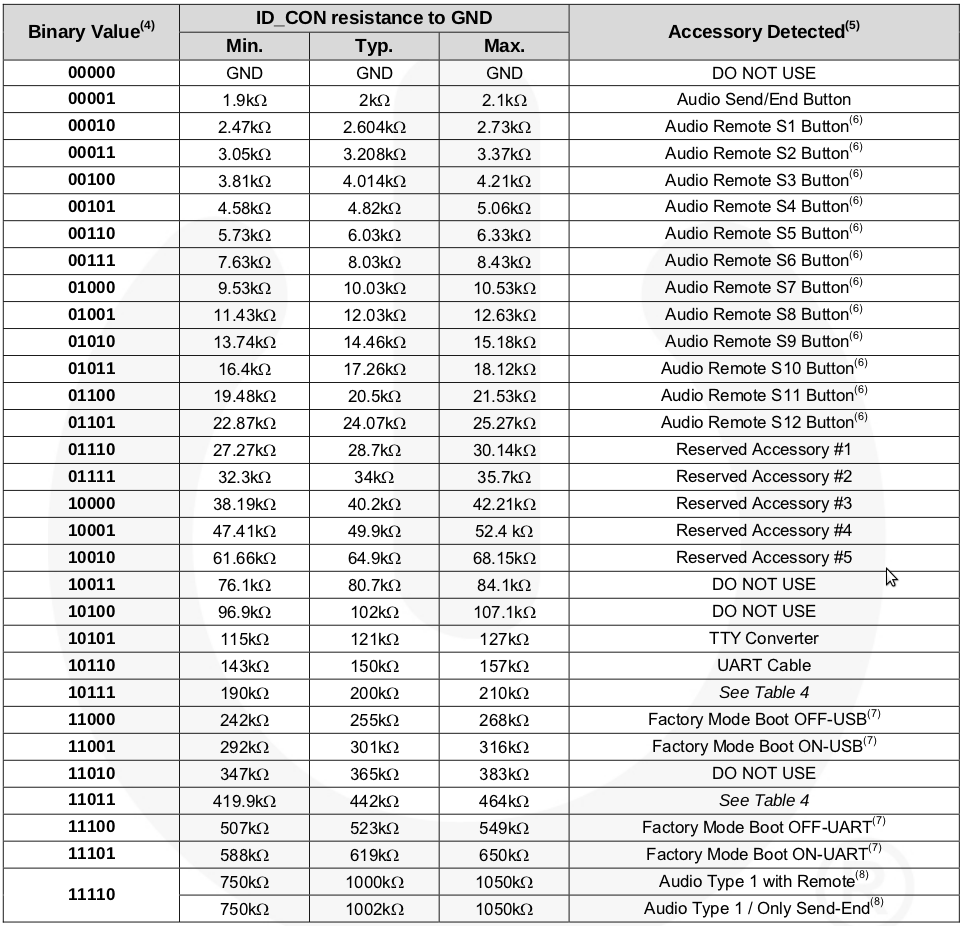

There's 32 bits. This is all resistor values.. All 5 bits are taken. 32 choices.

I graphed it out.
Flash with Odin on Windows, Linux and Mac. Use JOdin3, Available in a web browser or offline
Check out my developer pages. Add me to your circles on Google Plus.
Wanna see the longest Linux BASH script ever made? click here.

steph2
Old
#6
steph2's Avatar
Senior Member
Thanks Meter 71
Posts: 267
Join Date: Jan 2011
Location: Detriot
2000k

Sent from my GT-I9000 using XDA App
Captivate Stocky
GS2 ????

AdamOutler
Old
#7
AdamOutler's Avatar
Recognized Developer - OP
Thanks Meter 9593
Posts: 5,189
Join Date: Feb 2011
Location: Louisiana


DONATE TO ME
Quote:
Originally Posted by steph2 View Post
2000k

Sent from my GT-I9000 using XDA App
I just realized I missed both short and opened values... They set bits. Everything is taken. There cannot be any more. I updated the picture as well
Flash with Odin on Windows, Linux and Mac. Use JOdin3, Available in a web browser or offline
Check out my developer pages. Add me to your circles on Google Plus.
Wanna see the longest Linux BASH script ever made? click here.

alteregon
Old
#8
Junior Member
Thanks Meter 2
Posts: 17
Join Date: Feb 2011
thats really helpfull. thank you verry much!

yaboydrew
Old
#9
Junior Member
Thanks Meter 0
Posts: 28
Join Date: Apr 2010
I see there is an audio remote thing. Would it be possible to make an app in visual basic and use my sound card and a aux cable in the phone 3.5mm jack and send that into my phone?

Edit: there is also alot of commands on there with diffrent Ohms what do those commands do?

tamas970
Old
#10
Member
Thanks Meter 1
Posts: 69
Join Date: Jan 2010
Great finding Adam!

I would like to prepare a rescue set for the SGS-2, from a JIG and a microSD. If I read your table correctly, the 301kOhm USB JIG forces the device to boot in "Factory mode 1".

Is there a description somewhere, what these modes mean? (my goal is to convince the device to look for the bootloader on the microSD)
