[App] Flash Image GUI - Flash Kernels and Recoveries from normal Android mode!

OP joeykrim

17th October 2011, 12:37 AM   |  #1
OP Recognized Developer
Thanks Meter: 1,290

1,944 posts
Join Date:Joined: Jan 2009
Credits:
birbeck for the usual random java guidance, slushpupie for his previous java guidance, dodgejcr for extreme amounts of testing, and one_love_420 and shift for some great graphics!
testers: JT-, couga6442, happytweak and many others I might have forgot in the furry of the initial three days I built a lot of the app from scratch!
Thanks to SDX

Background:
flash_image (bmlwrite) is an extremely useful utility for flashing custom kernels, boot logos and recoveries. This binary has made it possible to easily flash all these items and is used almost everywhere behind the scenes (i.e. in custom recoveries, packaged into kernel /sbin, etc).

Description:
This Android App is a GUI interface for the linux binary, flash_image provided by google in AOSP for loading custom kernels and recovery images onto the phone.
This app allows the flashing of kernels and recovery images in normal android mode.
No recovery or adb needed!
LG Optimus One, V, S and T support includes flashing of anykernel type .zip files, boot.img type zip files and recovery.img files!

Current Device Support:
Full Kernel, Logo and Recovery flashing: Samsung Moment, Transform, Intercept and Acclaim - the s3c6410 series of devices
Full Kernel (Anykernel and boot.img) Flashing and Recovery flashing: LG Optimus, HTC EVO 3D (CDMA & GSM), HTC EVO, HTC EVO Shift & Nexus S/Nexus S 4G
Full Kernel (zImage) Flashing: Samsung Epic

Future Support:
Looking for feedback regarding making the app more user friendly or simplier to use for the HTC EVO. Thanks!

Install Directions:
Install process is the same as any other .apk. Download to computer and adb push or mount sdcard on computer and copy over or download directly to the phone. Use any file manager, adb, connectbot/terminal emulator to install.
My preferred method, maybe a bit technical: adb install c:\downloads\FlashImageGUI.apk

Download Locations
Market (99 cents!): Flash Image GUI
Release versions (free from my personal hosting): Flash Image GUI

Contact:
Any questions, comments, concerns, or issues, please post in this thread or send me an email! Thanks for all the help and support!

FAQ:
Q: Will this app support a marketplace to pick and chose kernels from?
A: No. Use Kernel Manager!

Screenshots:

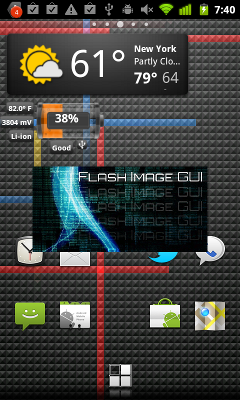

Splash Screen

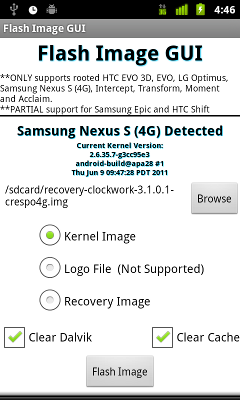

Main Screen

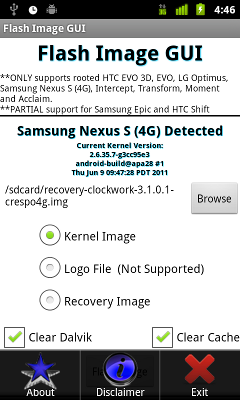

Options in Main Screen

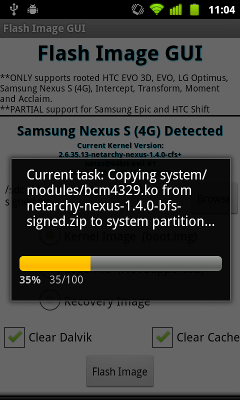

Flashing Netarchy Kernel with Progress Bar Details

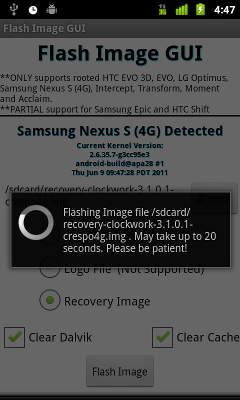

Flashing Clockworkmod Custom Recovery
Last edited by joeykrim; 8th December 2013 at 06:47 PM.
The Following 8 Users Say Thank You to joeykrim For This Useful Post: [ View ]
17th October 2011, 12:57 AM   |  #2
sweetnsour's Avatar
Senior Member
Thanks Meter: 2,512

2,581 posts
Join Date:Joined: May 2011
i know there is a thread on this already, but hey, you're the developer, so i can care less. thanks for the app!
17th October 2011, 05:42 PM   |  #3
Junior Member
Flag Bhubaneshwor
Thanks Meter: 24

24 posts
Join Date:Joined: Jan 2011
More
thnx !! its a cool app
17th October 2011, 09:35 PM   |  #4
eigokyoukan's Avatar
Senior Member
Flag Cincinnati
Thanks Meter: 308

705 posts
Join Date:Joined: Feb 2010
Awesome work! Kudos. Once I get home I will flash with it and test. sounds like a great front end

Sent from my LG-P500 using XDA App
18th October 2011, 10:56 AM   |  #5
Senior Member
Thanks Meter: 36

210 posts
Join Date:Joined: Sep 2011
yes working on my GB...thanks
27th July 2012, 11:19 AM   |  #6
Senior Member
Thanks Meter: 54

106 posts
Join Date:Joined: Jul 2012
More
Question
P500 now appears as an unsupported device with CM9.

With CM 7.2.0., we have this in /system/build.prop

Code:
ro.build.id=GRI40
ro.build.display.id=GWK74
ro.build.version.incremental=eng.jenkins.20120615.190413
ro.build.version.sdk=10
ro.build.version.codename=REL
ro.build.version.release=2.3.7
ro.build.date=Fri Jun 15 19:04:23 PDT 2012
ro.build.date.utc=0
ro.build.type=user
ro.build.user=jenkins
ro.build.host=cyanogenmod
ro.build.tags=test-keys
ro.product.model=LG-P500
ro.product.brand=lge
ro.product.name=cyanogen_p500
ro.product.device=p500
ro.product.board=p500
ro.product.cpu.abi=armeabi
ro.product.manufacturer=LGE
ro.product.locale.language=en
ro.product.locale.region=US
ro.wifi.channels=
ro.board.platform=msm7k
# ro.build.product is obsolete; use ro.product.device
ro.build.product=p500
With CM9 RC2, we have:

Code:
ro.build.id=IMM76L
ro.build.display.id=IMM76L
ro.build.version.incremental=eng.mint.20120726.140253
ro.build.version.sdk=15
ro.build.version.codename=REL
ro.build.version.release=4.0.4
ro.build.date=Thu Jul 26 14:03:34 EEST 2012
ro.build.date.utc=1343300614
ro.build.type=user
ro.build.user=mint
ro.build.host=androidmeda
ro.build.tags=test-keys
ro.product.model=LG-P500
ro.product.brand=lge
ro.product.name=lge_p500
ro.product.device=p500
ro.product.board=p500
ro.product.cpu.abi=armeabi-v6l
ro.product.cpu.abi2=armeabi
ro.product.manufacturer=LGE
ro.product.locale.language=en
ro.product.locale.region=US
ro.wifi.channels=
ro.board.platform=msm7x27
# ro.build.product is obsolete; use ro.product.device
ro.build.product=p500
I frankly do not see what it the problem here with the device identification, pretty much the only relevant difference being ro.product.name=cyanogen_p500 vs ro.product.name=lge_p500

27th July 2012, 11:27 AM   |  #7
OP Recognized Developer
Thanks Meter: 1,290

1,944 posts
Join Date:Joined: Jan 2009
Quote:
Originally Posted by lolphirae

P500 now appears as an unsupported device with CM9.

With CM 7.2.0., we have this in /system/build.prop

Code:
ro.build.id=GRI40
ro.build.display.id=GWK74
ro.build.version.incremental=eng.jenkins.20120615.190413
ro.build.version.sdk=10
ro.build.version.codename=REL
ro.build.version.release=2.3.7
ro.build.date=Fri Jun 15 19:04:23 PDT 2012
ro.build.date.utc=0
ro.build.type=user
ro.build.user=jenkins
ro.build.host=cyanogenmod
ro.build.tags=test-keys
ro.product.model=LG-P500
ro.product.brand=lge
ro.product.name=cyanogen_p500
ro.product.device=p500
ro.product.board=p500
ro.product.cpu.abi=armeabi
ro.product.manufacturer=LGE
ro.product.locale.language=en
ro.product.locale.region=US
ro.wifi.channels=
ro.board.platform=msm7k
# ro.build.product is obsolete; use ro.product.device
ro.build.product=p500
With CM9 RC2, we have:

Code:
ro.build.id=IMM76L
ro.build.display.id=IMM76L
ro.build.version.incremental=eng.mint.20120726.140253
ro.build.version.sdk=15
ro.build.version.codename=REL
ro.build.version.release=4.0.4
ro.build.date=Thu Jul 26 14:03:34 EEST 2012
ro.build.date.utc=1343300614
ro.build.type=user
ro.build.user=mint
ro.build.host=androidmeda
ro.build.tags=test-keys
ro.product.model=LG-P500
ro.product.brand=lge
ro.product.name=lge_p500
ro.product.device=p500
ro.product.board=p500
ro.product.cpu.abi=armeabi-v6l
ro.product.cpu.abi2=armeabi
ro.product.manufacturer=LGE
ro.product.locale.language=en
ro.product.locale.region=US
ro.wifi.channels=
ro.board.platform=msm7x27
# ro.build.product is obsolete; use ro.product.device
ro.build.product=p500
I frankly do not see what it the problem here with the device identification, pretty much the only relevant difference being ro.product.name=cyanogen_p500 vs ro.product.name=lge_p500

The build.prop is generally helpful but not being used by FIG in this case.

Can you post the results of ls -l / from each version?
This information is in the kernel and also important.
27th July 2012, 11:48 AM   |  #8
Senior Member
Thanks Meter: 54

106 posts
Join Date:Joined: Jul 2012
More
Quote:
Originally Posted by joeykrim

The build.prop is generally helpful but not being used by FIG in this case.

Can you post the results of ls -l / from each version?
This information is in the kernel and also important.

Uuuuh. Cannot find a nandroid backup of CM 7.2 anywhere and unfortunately do not have time to reinstall the entire phone ATM. Hopefully someone else on official CM7 will post the info here. Meanwhile, the info from CM9:

Code:
$ adb shell ls -l /
drwxr-xr-x root     root              2012-07-27 05:08 acct
drwxrwx--x system   cache             2012-07-26 17:31 cache
-rwxr-x--- root     root       248808 1970-01-01 02:00 charger
dr-x------ root     root              2012-07-27 05:08 config
lrwxrwxrwx root     root              2012-07-27 05:08 d -> /sys/kernel/debug
drwxrwx--x system   system            2012-07-26 17:23 data
-rw-r--r-- root     root          116 1970-01-01 02:00 default.prop
drwxr-xr-x root     root              2012-07-27 05:20 dev
lrwxrwxrwx root     root              2012-07-27 05:08 etc -> /system/etc
-rwxr-x--- root     root       102816 1970-01-01 02:00 init
-rwxr-x--- root     root         2344 1970-01-01 02:00 init.goldfish.rc
-rwxr-x--- root     root          717 1970-01-01 02:00 init.p500.rc
-rwxr-x--- root     root         7809 1970-01-01 02:00 init.qcom.rc
-rwxr-x--- root     root         1997 1970-01-01 02:00 init.qcom.sh
-rwxr-x--- root     root         2482 1970-01-01 02:00 init.qcom.usb.rc
-rwxr-x--- root     root        18533 1970-01-01 02:00 init.rc
drwxrwxr-x root     system            2012-07-27 05:08 mnt
dr-xr-xr-x root     root              1970-01-01 02:00 proc
drwxr-xr-x root     root              1970-01-01 02:00 res
drwx------ root     root              2012-07-26 13:36 root
drwxr-x--- root     root              1970-01-01 02:00 sbin
drwxrwx--x system   system            2012-07-26 17:24 sd-ext
lrwxrwxrwx root     root              2012-07-27 05:08 sdcard -> /mnt/sdcard
drwxr-xr-x root     root              2012-07-27 05:08 sys
drwxr-xr-x root     root              2012-07-26 17:17 system
-rw-r--r-- root     root          272 1970-01-01 02:00 ueventd.goldfish.rc
-rw-r--r-- root     root         5562 1970-01-01 02:00 ueventd.p500.rc
-rw-r--r-- root     root         5562 1970-01-01 02:00 ueventd.qcom.rc
-rw-r--r-- root     root         3825 1970-01-01 02:00 ueventd.rc
lrwxrwxrwx root     root              2012-07-27 05:08 vendor -> /system/vendor
Thanks!
3rd August 2012, 09:20 PM   |  #9
smokeboy67's Avatar
Junior Member
Thanks Meter: 1

15 posts
Join Date:Joined: Aug 2012
Does this work for the optimus v
3rd August 2012, 09:24 PM   |  #10
OP Recognized Developer
Thanks Meter: 1,290

1,944 posts
Join Date:Joined: Jan 2009
Quote:
Originally Posted by lolphirae

Uuuuh. Cannot find a nandroid backup of CM 7.2 anywhere and unfortunately do not have time to reinstall the entire phone ATM. Hopefully someone else on official CM7 will post the info here. Meanwhile, the info from CM9:

Code:
$ adb shell ls -l /
drwxr-xr-x root     root              2012-07-27 05:08 acct
drwxrwx--x system   cache             2012-07-26 17:31 cache
-rwxr-x--- root     root       248808 1970-01-01 02:00 charger
dr-x------ root     root              2012-07-27 05:08 config
lrwxrwxrwx root     root              2012-07-27 05:08 d -> /sys/kernel/debug
drwxrwx--x system   system            2012-07-26 17:23 data
-rw-r--r-- root     root          116 1970-01-01 02:00 default.prop
drwxr-xr-x root     root              2012-07-27 05:20 dev
lrwxrwxrwx root     root              2012-07-27 05:08 etc -> /system/etc
-rwxr-x--- root     root       102816 1970-01-01 02:00 init
-rwxr-x--- root     root         2344 1970-01-01 02:00 init.goldfish.rc
-rwxr-x--- root     root          717 1970-01-01 02:00 init.p500.rc
-rwxr-x--- root     root         7809 1970-01-01 02:00 init.qcom.rc
-rwxr-x--- root     root         1997 1970-01-01 02:00 init.qcom.sh
-rwxr-x--- root     root         2482 1970-01-01 02:00 init.qcom.usb.rc
-rwxr-x--- root     root        18533 1970-01-01 02:00 init.rc
drwxrwxr-x root     system            2012-07-27 05:08 mnt
dr-xr-xr-x root     root              1970-01-01 02:00 proc
drwxr-xr-x root     root              1970-01-01 02:00 res
drwx------ root     root              2012-07-26 13:36 root
drwxr-x--- root     root              1970-01-01 02:00 sbin
drwxrwx--x system   system            2012-07-26 17:24 sd-ext
lrwxrwxrwx root     root              2012-07-27 05:08 sdcard -> /mnt/sdcard
drwxr-xr-x root     root              2012-07-27 05:08 sys
drwxr-xr-x root     root              2012-07-26 17:17 system
-rw-r--r-- root     root          272 1970-01-01 02:00 ueventd.goldfish.rc
-rw-r--r-- root     root         5562 1970-01-01 02:00 ueventd.p500.rc
-rw-r--r-- root     root         5562 1970-01-01 02:00 ueventd.qcom.rc
-rw-r--r-- root     root         3825 1970-01-01 02:00 ueventd.rc
lrwxrwxrwx root     root              2012-07-27 05:08 vendor -> /system/vendor
Thanks!

this is exactly the type of information i need. im investigating the issue. optimistic it should be a simple fix. will keep you updated here.
if it is simple as i hope, ill push some other things aside and aim for releasing an update this weekend.

Quote:
Originally Posted by smokeboy67

Does this work for the optimus v

Yes, it should. If you have any issues, please post up the error message with a screenshot. Thanks!

The Following 2 Users Say Thank You to joeykrim For This Useful Post: [ View ]
Post Reply Subscribe to Thread
Previous Thread Next Thread
Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes
