[MOD] Nexus 7 UI v2.0 (StatBar & Navbar - Slimline) 25/Nov/2012 MZ604 | MZ602 | MZ601

Tip us?

LOGMD
Old
(Last edited by LOGMD; 25th November 2012 at 06:50 PM.) Reason: v2.0 release - multi dpi
#1
LOGMD's Avatar
Senior Member - OP
Thanks Meter 123
Posts: 189
Join Date: Jun 2010
Location: London
Default [MOD] Nexus 7 UI v2.0 (StatBar & Navbar - Slimline) 25/Nov/2012 MZ604 | MZ602 | MZ601

NOTE: FInally got some time to release an update - will be focusing on EOS3 STABLE for MZ604 for now, am still updating my tool, check changelog for update

Development on pause (or very slow progress) due to my being in my final year at university and my dissertation is just taking TOO much time! will return to my beloved droids when i get the time :'(!!

NexUI v2.0


What does it do: Combine Navbar with the Phablet style status bar to give a more Nexus7 feel

Current features:
  • framework.apk for specific device/rom combos (to be pushed to system)
  • slim NavBar
  • StatBar (same dpi as Navbar symmetrical)
  • CWM flashable ZIP
  • use the ZIP to change DPI also

Plans:
  • Single Zip download and autorecognise device per rom
  • some requests features
  • Support MZ602 & Roms

TESTED ON:
- I USE WINGRAY... i can not test for MZ602 or MZ601 versions!

-CodenameAndroid v3.5.0(MZ604 Wingray: working) (OTHERS: N/A)
-CM10 nightlys(MZ604 Wingray: working) (OTHERS: N/A)
-EOS3 Nightly's(MZ604 | MZ601: working) (MZ602: N/A)

WARNING:
- PLEASE SELECT APPROPRATE "framework-res.apk" FOR YOUR ROM BUILD i.e. EOS3 use EOS3 link!
- PLEASE SELECT APPROPRIATE download for your HARDWARE BUILD (ie wingray stingray)
- DO NOT TRY on anything other than the above unless you know what you are doing
- STRONGLY reccomend you have at least 10MB space on /system partition, use a root explorer to check
(i usually execute "adb shell rm /system/media/video" to clear some space)
- I did everything using ADB on windows so try the adb methods if it does not work

- STEPS TO RECOVER FROM BOOTLOOP (win7, quickest methods first... only do the next step if the previous did not work)

A: using the original framework-res.apk
"adb shell mount -o remount,rw /system"
"adb push framework-res.apk /system/framework" (make sure you point to the framework-res.apk folder in your pc)
"adb reboot"

B: reflash CURRENT rom without wipe and reboot (also Gapps if not CM10)


INSTRUCTIONS:
(Repeat i am not responsible for bootloops etc but i will share my knowledge on fixing as far as i know)

v1.0+ EASY
-NANDROID/framework-res/build.prop backup
-DOWNLOAD zip for your XOOM Model/Rom combo (VERY IMPORTANT)
-Flash through CWM recovery

Pre v1.0
- NANDROID and framework-res backup
- Replace framework-res (will make flashable zip soon) [use ADB or root explorers]
- Reboot (if you get bootloop please report, send your old framework back or reflash rom without wipe)
- mod dpi (proppmodder 0.60 or edit build.prop to 180dpi or over)

DIY: do the mods yourself:

*** Written guide coming soon...

- In the meantime, CLICK HERE for a windows script to do this all for you!
--download
--unzip
--follow instruction on redme

Download: ("file > download" for google docs)

MZ604-----------------------------------------
*EOS3 STABLE v2.0

*EOS3 N v1.1 (nightly 131)
*CM10 N v1.1 (nightly 19SEP2012)
*CodeName v0.3 (v3.5.0)

MZ602-----------------------------------------
*EOS3 N --
*CM10 N -- v1.1 (nightly 20SEP2012)
*CodeName --

MZ601-----------------------------------------
*EOS3 N v1.1 (nightly 114)
*CM10 N --
*CodeName --

[CENTER]

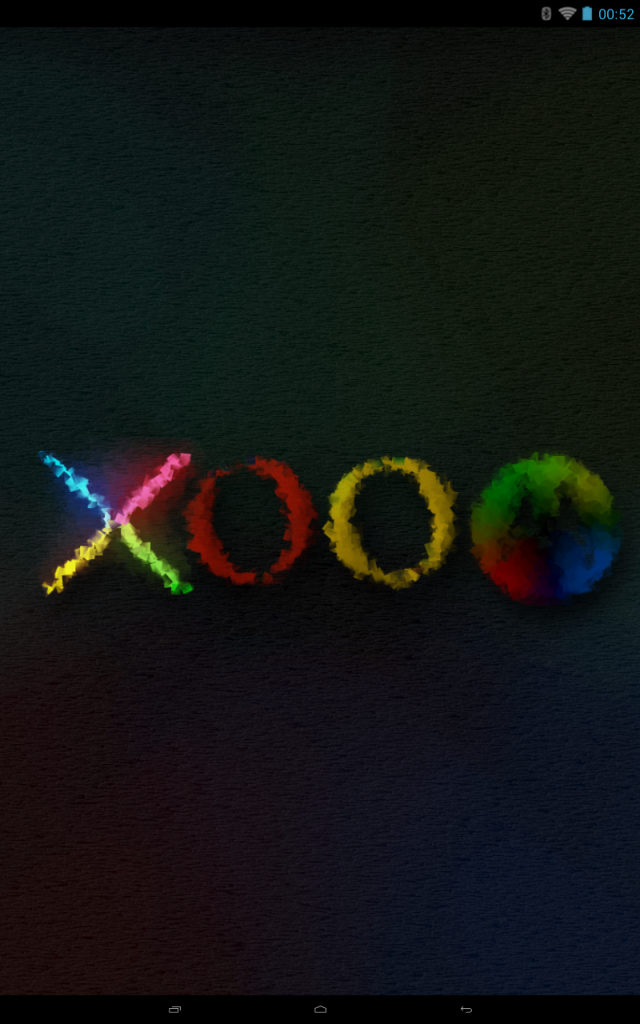

screenshots




Changelog:
Code:
v2.0 25th Nov 2012
-EOS3 Stable support
-Multi DPI Play Store ported from i9100 (thanks to MyLifeRocks10 | thread here)

v1.1a 21 Sep 2012
-Added support for EOS3 MZ601
-Added support for CM10 MZ602
-Added DIY script

v1.0 20th Sep 2012 (CM10 ONLY)
-Flashable Zip (Navbar mod & dpi to 180 mod)
-Made both statusbar and navbar 32dp for symmetric display


v0.4 19th Sep 2012
- Support for CM10 WINGRAY Nightly
- CM10 Stock Navbar only

v0.3 19th Sep 2012
- Support for EOS3 WINGRAY nightly 143 added (may work on earlier/later version)
- EOS3 version is 48DPI navbar and stock DPI status bar

v0.2 19th Sep 2012
- Lockscreen Rotation Enabled *** (still not working in codenameandroid)
- smaller navbar dpi (avoids accidental hitting spacebar when typing)

v0.1 19th Sep 2012
- Support for codenameandroid WINGRAY
- enabled bar in bools.xml
Last but not least THANKS!:
- CM10 Wingray tester matt4321
Attached Thumbnails
Click image for larger version

Name:	Screenshot_2012-09-19-00-29-23.jpg
Views:	1797
Size:	11.3 KB
ID:	1337256
|----- If my work or answer helped you, then your THANKS is much appreciated =P -----|
The Following 6 Users Say Thank You to LOGMD For This Useful Post: [ Click to Expand ]

z1gackly
Old
#2
z1gackly's Avatar
Senior Member
Thanks Meter 466
Posts: 466
Join Date: Jul 2012
Location: London
Nice work - I'd considered doing this myself.

Do you have a screenshot with the notification shade pulled down? How much of the screen width does it use?
Stuff I've made: http://goo.im/devs/zigackly
My source code: https://github.com/zigackly
If you like my stuff, click the thanks button. It makes me smile.

LOGMD
Old
#3
LOGMD's Avatar
Senior Member - OP
Thanks Meter 123
Posts: 189
Join Date: Jun 2010
Location: London
Quote:
Originally Posted by z1gackly View Post
Nice work - I'd considered doing this myself.

Do you have a screenshot with the notification shade pulled down? How much of the screen width does it use?
Thanks mate! i was up most of the night 2 days in a row trying to see why i was getting bootloops lol! now i figured it out unlocked the potential to alot more small mods!

btw heres the pics u asked for (ill attach to main post also)
Attached Thumbnails
Click image for larger version

Name:	Screenshot_2012-09-19-10-46-23.jpg
Views:	1288
Size:	9.3 KB
ID:	1338132   Click image for larger version

Name:	Screenshot_2012-09-19-10-38-11.jpg
Views:	1280
Size:	11.1 KB
ID:	1338133   Click image for larger version

Name:	Screenshot_2012-09-19-10-39-33.jpg
Views:	1311
Size:	14.5 KB
ID:	1338134
|----- If my work or answer helped you, then your THANKS is much appreciated =P -----|

matt4321
Old
#4
matt4321's Avatar
Recognized Contributor
Thanks Meter 1,164
Posts: 1,551
Join Date: Dec 2011
Location: Oxford/Leicester, UK


DONATE TO ME
CyanogenMod 10 nightlies gave me a bootloop

Nexus 7 (2013) | Nexus 5 | Motorola Xoom
Follow Me On Twitter

LOGMD
Old
#5
LOGMD's Avatar
Senior Member - OP
Thanks Meter 123
Posts: 189
Join Date: Jun 2010
Location: London
Quote:
Originally Posted by matt4321 View Post
CyanogenMod 10 nightlies gave me a bootloop
hmm thanks, i think i need to extract the framework-res from cyanogen and do the mods seperately, thanks for the update!
|----- If my work or answer helped you, then your THANKS is much appreciated =P -----|

LOGMD
Old
#6
LOGMD's Avatar
Senior Member - OP
Thanks Meter 123
Posts: 189
Join Date: Jun 2010
Location: London
Quote:
Originally Posted by matt4321 View Post
CyanogenMod 10 nightlies gave me a bootloop
I am uploading a version for CM10 most recent WINGRAY nightly could you try it out? if you are using Stingray ill try extract a stingray version and edit it later thanks!
|----- If my work or answer helped you, then your THANKS is much appreciated =P -----|

matt4321
Old
#7
matt4321's Avatar
Recognized Contributor
Thanks Meter 1,164
Posts: 1,551
Join Date: Dec 2011
Location: Oxford/Leicester, UK


DONATE TO ME
Quote:
Originally Posted by emofishcake View Post
I am uploading a version for CM10 most recent WINGRAY nightly could you try it out? if you are using Stingray ill try extract a stingray version and edit it later thanks!
Yeah I'm on wingray, I'll give it a whirl for you

I'll report back in a little bit

Nexus 7 (2013) | Nexus 5 | Motorola Xoom
Follow Me On Twitter
The Following User Says Thank You to matt4321 For This Useful Post: [ Click to Expand ]

LOGMD
Old
#8
LOGMD's Avatar
Senior Member - OP
Thanks Meter 123
Posts: 189
Join Date: Jun 2010
Location: London
Default Thanks!

Quote:
Originally Posted by matt4321 View Post
Yeah I'm on wingray, I'll give it a whirl for you

I'll report back in a little bit
cheers mate, im off out now anyways but soon will have a flashable zip, if you want anymore small mods give us a shout i can change the bools.xml to try a couple of things
|----- If my work or answer helped you, then your THANKS is much appreciated =P -----|
The Following User Says Thank You to LOGMD For This Useful Post: [ Click to Expand ]

matt4321
Old
#9
matt4321's Avatar
Recognized Contributor
Thanks Meter 1,164
Posts: 1,551
Join Date: Dec 2011
Location: Oxford/Leicester, UK


DONATE TO ME
Can confirm working on CM10 nightlies.

MZ604 wingray.
framework-res.apk replaced
dpi changed to 180

All works perfectly mate

Nexus 7 (2013) | Nexus 5 | Motorola Xoom
Follow Me On Twitter

LOGMD
Old
#10
LOGMD's Avatar
Senior Member - OP
Thanks Meter 123
Posts: 189
Join Date: Jun 2010
Location: London
Quote:
Originally Posted by matt4321 View Post
Can confirm working on CM10 nightlies.

MZ604 wingray.
framework-res.apk replaced
dpi changed to 180

All works perfectly mate
NICEE okay ill sort out the rest tonigh using flashable zips and release v1.0 thanks for the testing
|----- If my work or answer helped you, then your THANKS is much appreciated =P -----|
