Mod for sony liveview stock watchband to facilitate charging

OP gorgy76

8th October 2012, 05:07 PM   |  #1
gorgy76's Avatar
OP Senior Member
Thanks Meter: 39

266 posts
Join Date:Joined: Nov 2010
Hi,

I have here a simple mod for the stock sony liveview watch band to facilitate charging without taking out the liveview at its retaining base. I would just like to share this simple mod so that anyone with a broken tabs that clips the liveview in place can use their stock watchband again (Mine broke the other day ,the engineer who design this thing must be fired) or for those anybody that would like to use their stock watchband and was tired of constantly taking out their liveview for charging. This mod will allow the liveview to be charged still attached to the stock watchband. (Caution; Pics are very huge....sorry). Liveview app has a recently updated so it improves connectivity but no auto connect yet. Otherwise I'm enjoying it more now on jellybean than previously where it stays more of its time inside my desk unused, so for now will be using it more frequently.

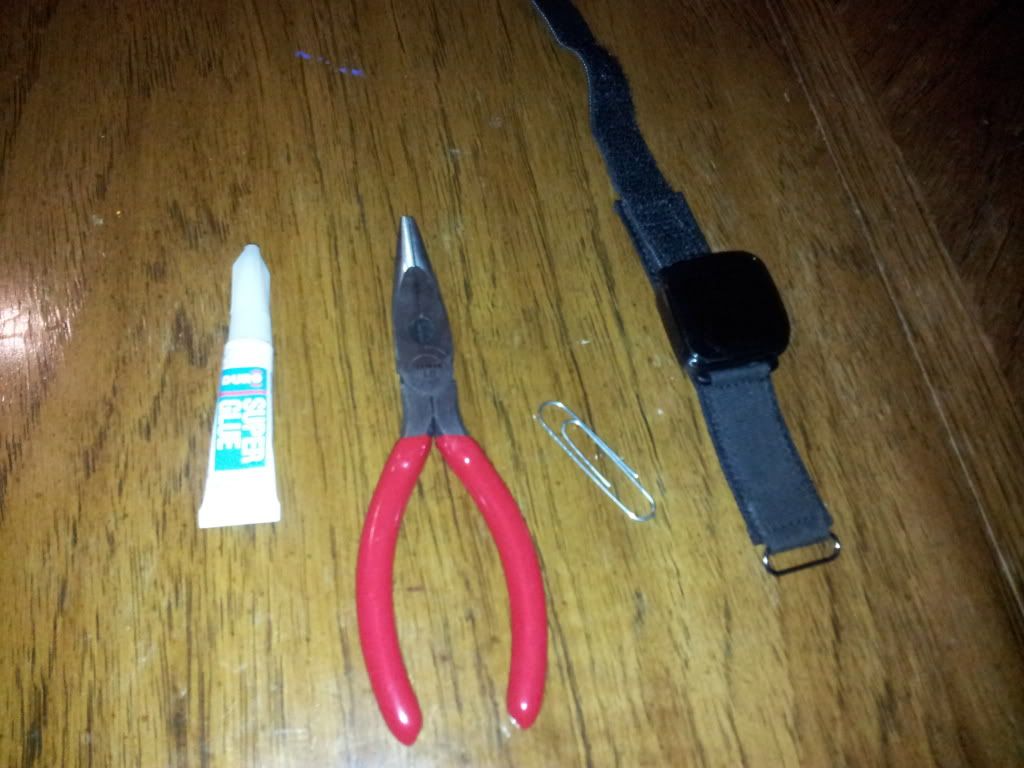

Materials needed are the following:

a. Long nose flier (preferred as it allow small length bending of the paper clip)
b. paper clip
c. super glue (for those with broken tabs)


http://i1223.photobucket.com/albums/...g?t=1349708425


Steps:

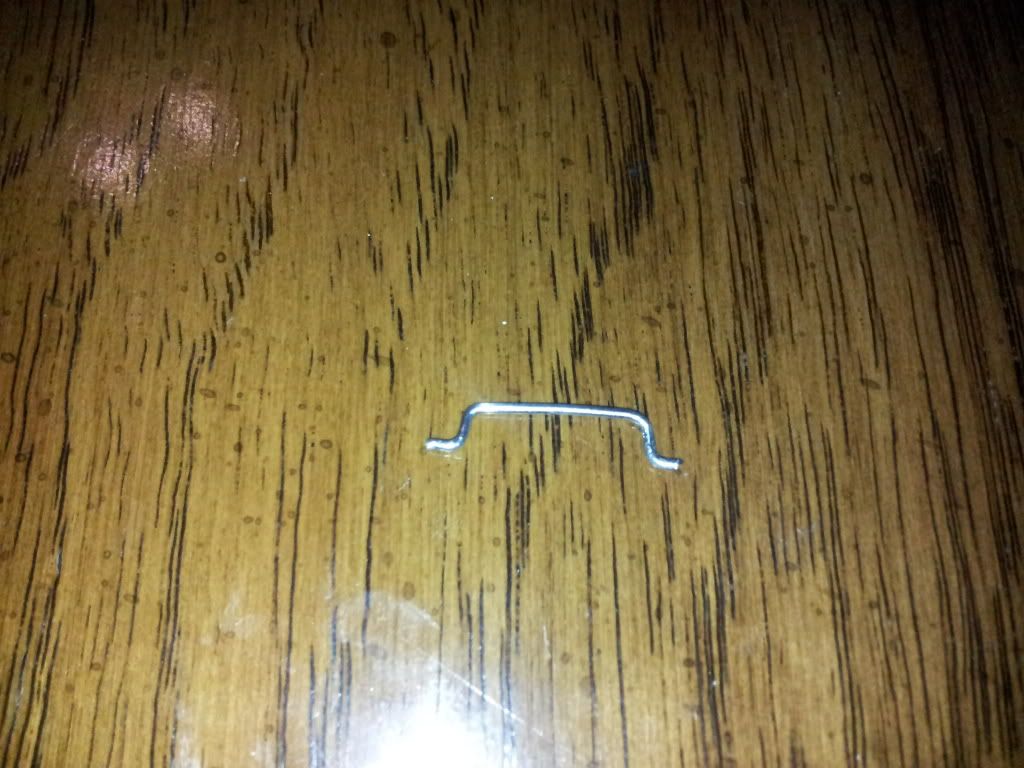

1. Cut, measure and shape the paper clip according to the image shown. Remember to measure the lenght of the clips and its bending in proportion where the retaining pin is attached to the watch base. ( I would not explain further as a picture is worth a thousand words)


http://i1223.photobucket.com/albums/...g?t=1349708412

2. when done, remove the stock retaining pin from the watchband. You will have to enlarge the hole where the retaining pin is attached to the base of your live view by using the extra paper clip and heating the tip of it using a gas stove, a candle or anything at your own convenience. (Be careful with this procedure, take extra caution). While the tip of the paper clip is still red hot immediately insert it to the hole and take it out afterwards and do the opposite side.

3. Now that the hole is larger, and your modded paper clip pin is ready to be inserted to the notch. Now replace the stock retaining pin with your modded paper clip retaining pin and place it back. Put your liveview back. For those with broken tabs super glue on the back of your liveview and put it back allow the glue to dry for several minutes.

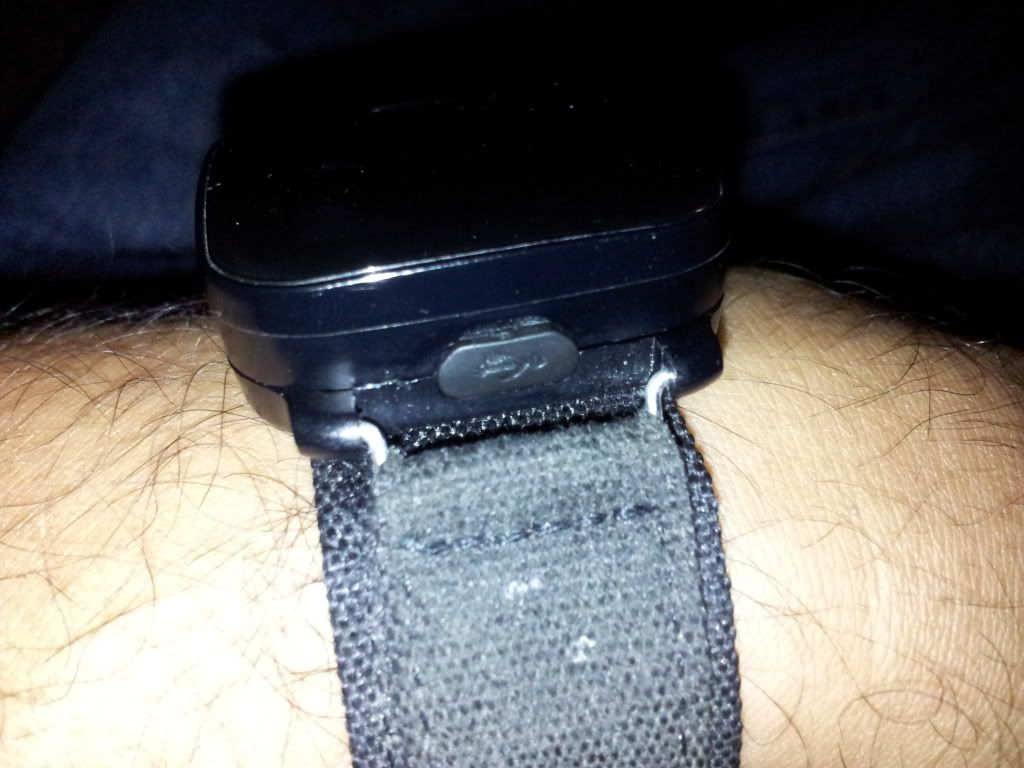

Here are some pics in action: You still retain factory look and gain some convenience charging with the port without removing anything( except for the rubber cover which you will still have to open). Enjoy (Sorry if I have made some grammatical error or did not explain properly as english is not my primary language).

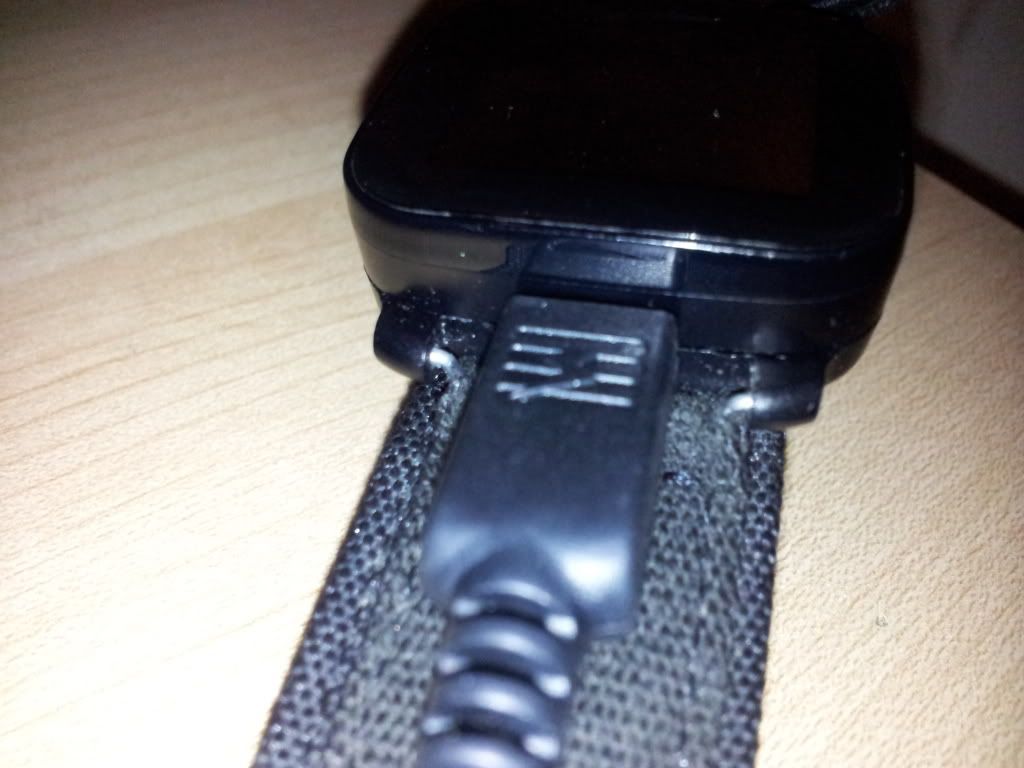

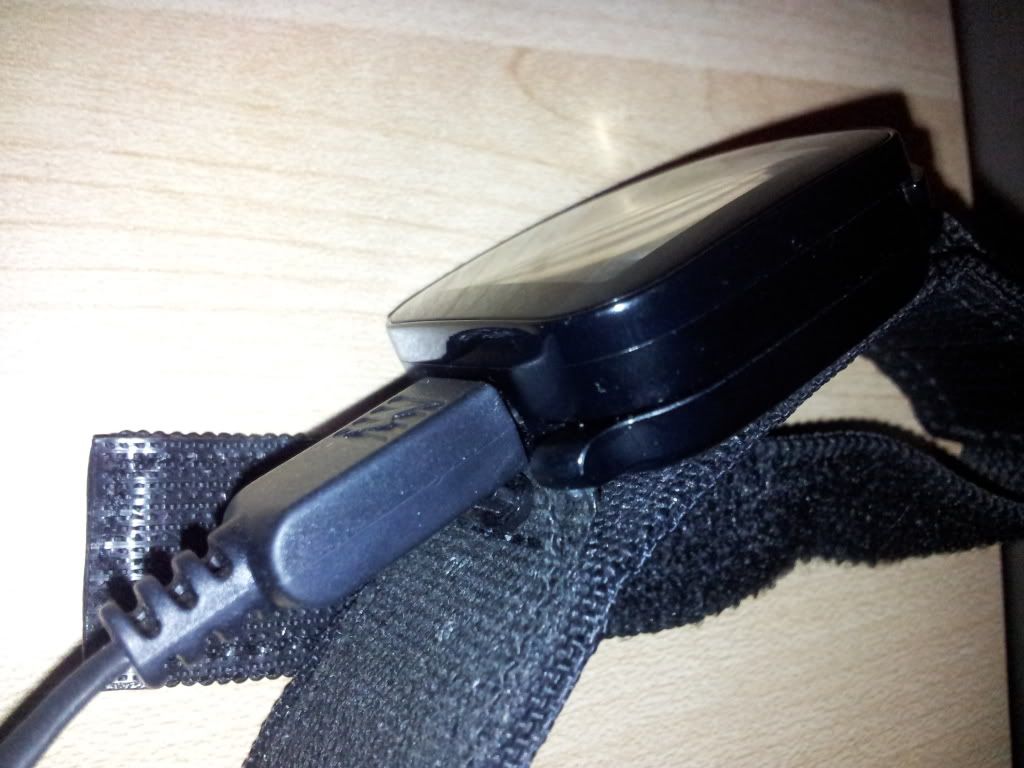

http://i1223.photobucket.com/albums/...g?t=1349708444


http://i1223.photobucket.com/albums/...g?t=1349708435


http://i1223.photobucket.com/albums/...g?t=1349708665


http://i1223.photobucket.com/albums/...g?t=1349708656
Last edited by gorgy76; 8th October 2012 at 05:36 PM.
