[MOD] Self Powered USB OTG on the HP Touchpad! (v2 Full Size) 11-30-12

Tip us?

mpgrimm2
Old
(Last edited by mpgrimm2; 28th December 2012 at 12:48 PM.)
#1
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Default [MOD] Self Powered USB OTG on the HP Touchpad! (v2 Full Size) 11-30-12

First:
Major Credit to SDX's FTEN for being first with his very original idea and micro Usb version of this hardware mod. If it weren't for him, I would not have dared to do this.
See his original thread:
Self Powered USB Host on the HP Touchpad! and at RootzWiki

SDX Version of this thread
Rootzwiki Version of this thread

DISCLAIMER: I'm not a dev, nor do I play one on t.v. Use the information and links at your own risk. Read and understand what you're doing FIRST is the best bet. I take no credit for the original idea, just ran a bit farther out on the branch before it broke.

Afterwards be sure to check out:
[Tips and Tricks] OTG (USB Host Support) - Requires kernel support
and
My 2 Port 2 Amp OTG Charger & Mod post further down.

This is a difficult modification that requires you to completely disassemble Touchpad (correct tools a plus), cut and dremel out excess material from the back cover (risk of permanent damage) and display frame. You also need to have some soldering equipment plus skill with very small circuit boards/traces (if you want more than a full size power port) and loads of patience (this took several hours over 4-6 separate days).
Still interested? Have a look:

Parts:
- USB-A Female Connector from a USB Extension cable (and it's spare wire)
(or optional microUSB breakout as FTEN used in his original version)
- Small, thin, SPDT switch (single pole double throw) from a Dollar Store toy, ie "DollarTree"
- VPack PRT-08290 (5v Regulator) and it's PDF Reference file
- micro USB (M) connector from a cable or OTG Adapter (if you can't get the Enable switch landed you'll need this cut up into a plug with the ID pin shorted)
( or maybe AppleCable's Powered OTG Cable )

Tools:
- Spudger Tool set (or similar for cracking open the TP)
- Variable Speed Dremel with "Rotary File" bit
- Decent Soldering Iron (ie: Weller WES51) with small conical tip, and small electrical solder (LeadFree compatible recommended)
- Hobby knife Set (ie X-Acto with various blades and handles)
- Hot Glue Gun and sticks

Basic Disassembly/Reassembly: iFixit's HP Touchpad Battery Removal Guide
(You should be confident with the above. Be prepared to break a few of the 7 clips; superglue helps).

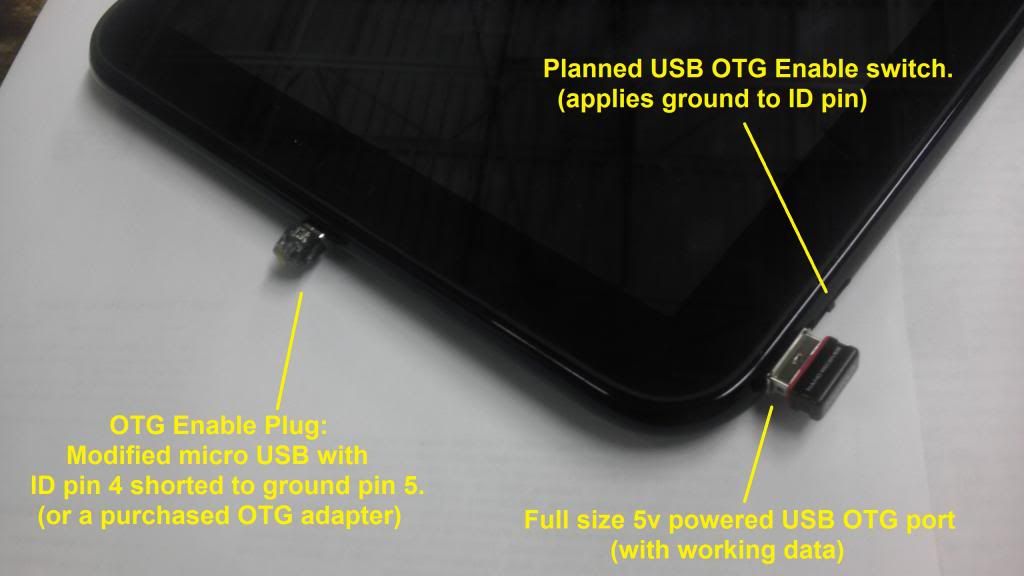

The Finished Product:
The Following 11 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
(Last edited by mpgrimm2; 30th November 2012 at 09:09 AM.)
#2
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 0 - Parts, Planning, & Schematics:

My Original sketch of the wiring schematic for the mod


The 3.7v to 5vdc Step-Up Regulator board


My wife's Simon Toy supplied the OTG Enable Switch (she wasn't thrilled)



Here's another option for the switch from my local "DollarTree" store




Here's the Full Size USB-A Extension Cable before and after modifiying


Lesson Learned: Go ahead and strip the Potting Material off the USB-A (F) connector to expose the 4 solder points and remove the wires (or at least the 2 DATA lines). I think you will have better success if you "land" the Data wires and OTG Enable Switch wire to the TP's USB Controller Board first and then connect the leads to the USB-A Connector and Enable Switch since those solder points are more durable.
** Make sure that the cable wiring is "Copper Colored" not silver, etc. The copper wire will solder more easily without damage to the USB Controller Board later on **
The Following User Says Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
#3
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 1 Pictures (MB Power Leads and Routing):





The Following 3 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
#4
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 1 pictures (Sim Slot Modification & Test Fitting):















When it's all mounted up (Later) the connector will stick out the back like this:
The Following 3 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
#5
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 1 Pictures (Regulator/Connector Placement and Wiring)

Soldering the Battery leads to the Regulator input (take time to get the length & routing correct)


* See Previous note about soldering Data and OTG Switch wire to USB Controller Board First *


Here the 5vdc to the USB connector is soldered to the Regulator Output & a DC Rtn from the regulator is soldered to the switch's "common".




The Following 3 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
#6
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 2 Pictures (Sim Slot/Display frame notching)





The Following User Says Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
#7
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 3 Pictures (USB Controller Board info)







Part 3 Pictures (USB Controller Board info)

Note: You can skip this step if you just want a full size USB-A power port and don't care about it having working "data" communication and OTG Enable Switch (I screwed up the enable switch solder pad).

Please read the notes in the pictures for this section, they will help avoid my mistakes.







The Following 2 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
(Last edited by mpgrimm2; 5th December 2012 at 08:32 AM.)
#8
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Part 4 Pictures (finished)













Updated: 12-3-12
The Following 4 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
#9
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Additional Reference Info

Here'a an OTG Cable reference schematic that I made to help people make their own OTG cables and OTG shorting plugs. It works as a good reference to figure out how a purchased cable is wired up (some are different).


And here's a picture of the micro-USB breakout board (4pins only) from Sparkfun.com that Ften used in his original mod mentioned at the top of the OP. If you prefer, you can squeeze this into the sim slot without dremeling the back cover to a "paper thinness" and hook up your data and pwr to it, but you will have to make or purchase a male microUSB to USB-A adapter (an OTG one would work since there isn't an ID pin hooked up). I avoided this option because I don't want someone hooking it up to a USB wall charger by accident and possibly killing the regulator
The Following 3 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]

mpgrimm2
Old
(Last edited by mpgrimm2; 9th December 2012 at 12:42 PM.)
#10
mpgrimm2's Avatar
Recognized Contributor - OP
Thanks Meter 1038
Posts: 1,590
Join Date: Nov 2011
Location: Virginia
Default 2 Port 2Amp USB OTG Charger & Mod

Here's an update...

My CrazyOnDigital 2 port charger doesn't have the data pins shorted (D+ and D-) like the stock HTC unit. This causes any "Android" phone to charge at the lower 500ma Max "Charging USB" rate vs "AC Charging" (explains my slow charging when travelling), but a bonus is that it allows me to pass data b/w the 2 ports like a simple hub.

- If the D+ and D- pins are shorted when an OTG USB cable is plugged in, the phone/device will go into "AC Charging" mode, but not allow OTG devices to work, but if the phone is still connected and the data pins opened back up, you retain "AC Charging" mode and have USB OTG functions.
(I'm thinking that a simple on/off switch installed across the data pins of my charger will give me a dual mode charger).

AC CHARGING / USB CHARGING (Data Pass Through) MOD 12-1-12
- I got tired of having a 2 port 2 Amp charger that only allowed 500ma "USB Charging" with Android & OTG. See pix:








The Following 3 Users Say Thank You to mpgrimm2 For This Useful Post: [ Click to Expand ]
