[Q] Cannot flash Galaxy S4 GT-I9502?

Tip us?

MarrkDaviid
Old
#1
MarrkDaviid's Avatar
Senior Member - OP
Thanks Meter 49
Posts: 130
Join Date: Mar 2011
Location: Brisbane
Default [Q] Cannot flash Galaxy S4 GT-I9502?

Hey Guys,

I am trying to return a Galaxy S4 Duos GT-I9502 back to stock, for someone who attempted to root the device, which failed. I am however experiencing some difficulty doing so, and would appreciate some help, if anyone has any suggestions.

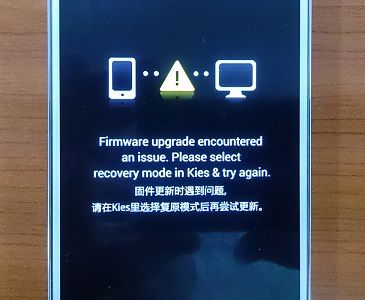

This is the screen on the device:



I am able to put the device into download mode, though I keep getting this error message when I try flashing the device in Odin.

"Complete(Write) operation failed."

When attempting to flash the device, it quickly goes through boot.img, recovery.img and system.img (when it should take longer for each step, and you should see the little green progress bar move), before failing. Does this mean that Odin is having issues writing to the device?



I am pretty confident that I have the correct Samsung drivers installed, and I have tried completely closing all of the Samsung Kies processes on the computer. I have even tried using a different computer, and two different ROMs.

I have tried flashing the below ROMs:

I9502ZNUBMG2_I9502CHUBMG2_CHU
I9502ZNUAME3_I9502CHUAME3_CHU

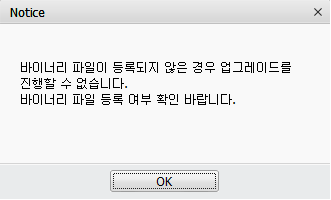

I have also tried the 'Firmware upgrade and initialization' option in Samsung Kies, though I keep on getting this error message, before it closes (I do not know what it says, Google translate doesn't give a good translation).



"Binary files are not registered U.S. Congress gyeongmu mouth mid-sprocket
Bow can proceed
Please check the binary file registration myeobu"

Does anyone have any suggestion / idea of what is going wrong? Any help would be highly appreciated!

MarrkDaviid
Old
#2
MarrkDaviid's Avatar
Senior Member - OP
Thanks Meter 49
Posts: 130
Join Date: Mar 2011
Location: Brisbane
Never mind, I was able to resolve the issue by re-flashing CWM recovery!

mtad2002
Old
#3
Junior Member
Thanks Meter 0
Posts: 3
Join Date: Oct 2013
Default same problem

i have exactly same problem with I9502ZNUBMH4 version , does anyone know how to flash this device because i tried 100 time with different versions of odin , and every time i failed repaird it with cwm .
oh and the device won`t do a full wipe , every time i full wiped it my files didn`t deleted ?!

Mensis_82
Old
#4
Junior Member
Thanks Meter 0
Posts: 2
Join Date: Feb 2014
Default Samsung S4 GT-I9502 root / flash failed - HELP

Hey Guys,

I tried to root my Samsung S4 GT-I9502 (OS Android 4.3), for that I found this website:
http://marrkdaviid.com/2013/08/fix-c...laxy-s4-i9502/

But it failed (see more Information below) and I had the following error message and no wifi.

"Complete(Write) operation failed."

When attempting to flash the device, it quickly goes through boot.img, recovery.img and system.img (when it should take longer for each step, and you should see the little green progress bar move), before failing. Does this mean that Odin is having issues writing to the device?


I live in China and I just bought the phone, I needed 5 days to download the necessary files, because most download pages are blocked in China. So I am loosing my last nerve right now.

I am pretty confident that I have the correct Samsung drivers installed. I don’t have Samsung Kies installed. I have even tried using a different computer (Laptops), and two different ROMs.

I have tried flashing the below ROMs:

I9502ZNUCMG2_I9502CHUCMG2_I9502ZNUCMG2_HOME.tar.md 5
I9502ZNUEMK3_I9502CHUEMK3_I9502ZNUEMK3_SVA.tar.md5

Someone with a the same problem tried the 'Firmware upgrade and initialization' option in Samsung Kies, but it didn’t work, so I didn’t try. (Here the link: http://forum.xda-developers.com/show....php?t=2382979)

Instead I tried a recovery. I used Odin 3.07 and the following file:
i9502-cwm-recovery.tar.md5

I got my phone back to work for a while, I reset the phone, just in case. But know I can’t switch the Wifi on and the phone wants to Reboot.
So I allowed the phone to Reboot, I clicked on “reboot system now” and then on “Yes – (I forgot what was written behind the Yes, but I didn’t just click on the normal Yes, I clicked on the Yes - …)

The problem here: The Phone changed to a China Unicom Screen and stayed like that. After 5 h I took the battery out, but I couldn’t restart the phone.

So I did an cwm recovery and know I am afraid to reboot. The Wifi is not working and I can’t find any information about how to fix it.
So please help me. Do I reboot? Can I already install SVA ROM, although I couldn’t flash the Stock Firmware? Do I send the phone back and give up?

Please let me know if you need any other information to be able to help me.

PS: This is the first time that I flash a smart phone. And although I already spent several days now, searching the internet for how-to-dos, tips & tricks, guidelines, Q&As and god knows what, I still do not fully understand what exactly I am doing here. Hence, I would be very happy to receive somewhat easy understandable answers.


Thank you so much for your help!
Anna

saulo866
Old
#5
Senior Member
Thanks Meter 2
Posts: 455
Join Date: Mar 2004
Location: Beijing
Default Philz 6.00.2

I have a similar problem.
I tried to install philz _touch_6.00.2-i9505.tar, by uisng Odin 3.09

Everything went OK. I got PASS! and my Samsung S4 i9505 rebooted into the stock ROM

However I cannot enter Philz. I tried to keep pressed volume Up + Home + Power but the phone goes immediately into the main Samsung screen. I have tried many combinations...the only working combination is:
volume Down + Home + Power > which leads to download mode (for Odin)

Thank you for your suggestions!
SA
