[HANDS-ON] Galaxy Note 3 Connectivity thread - USB OTG/MHL etc!

Tip us?

NZtechfreak
Old
(Last edited by NZtechfreak; 8th December 2013 at 11:41 AM.)
#1
Senior Member - OP
Thanks Meter 932
Posts: 2,402
Join Date: Sep 2008
Wink [HANDS-ON] Galaxy Note 3 Connectivity thread - USB OTG/MHL etc!

Hi everyone,

I got a good few hours with the Galaxy Note 3 over the weekend, tried out a bunch of stuff and can answer a lot of the questions people have here in relation to what sorts of connectivity work and which don't (the USB 3.0 has people wondering whether their existing stuff will work).

A few findings of mine from the weekend:
  • External drives work, but unfortunately NTFS formatted drives still don't work on stock ROMs. It had the power to spin up a 1TB Seagate drive! Unfortunately the drive was NTFS formatted so couldn't do more to see how well it was working, but definitely was powered with a solid indicator light. Promising.
  • The Smart Dock works with the Note 3
  • The S3/Note 2 MHL adapters definitely work
  • The Samsung MHL 2.0 adapter works without needing a charging input plugged in and IS outputting at 60Hz
  • USB audio working, I tried several DACs. The ones that worked were the HiFimeDIY, Tiny-M, HeadAmp Pico. Unfortunately Apex Glacier did not work (did not work on the S4 either).
  • USB keyboards/mice working as they did with the older Samsungs
  • PS3 controller working over USB OTG
  • Ditto for the Xbox 360 for Microsoft controller (which required an app on older Samsungs in order to work)
  • Logitech F310 controller works too
  • Ditto the Logitech F710
  • It also worked with a cheapie gamepad from Ebay (like $6), although button mappings seemed limited and did not have time to try it in emulators etc to see whether all could be mapped.
  • BT keyboard and mouse working, as expected
  • IR blaster via the inbuilt app works great with my LG TV
  • MHL and USB OTG do not work together using the Samsung MHL 2.0 adapter
  • Moga Pro gamepad working well
  • Tried several ethernet adapters, none work.

Unfortunately the one I had did not have the USB 3.0 cable/charger, so could not benchmark read/write speeds or charging speeds using that connectivity.

UPDATE:

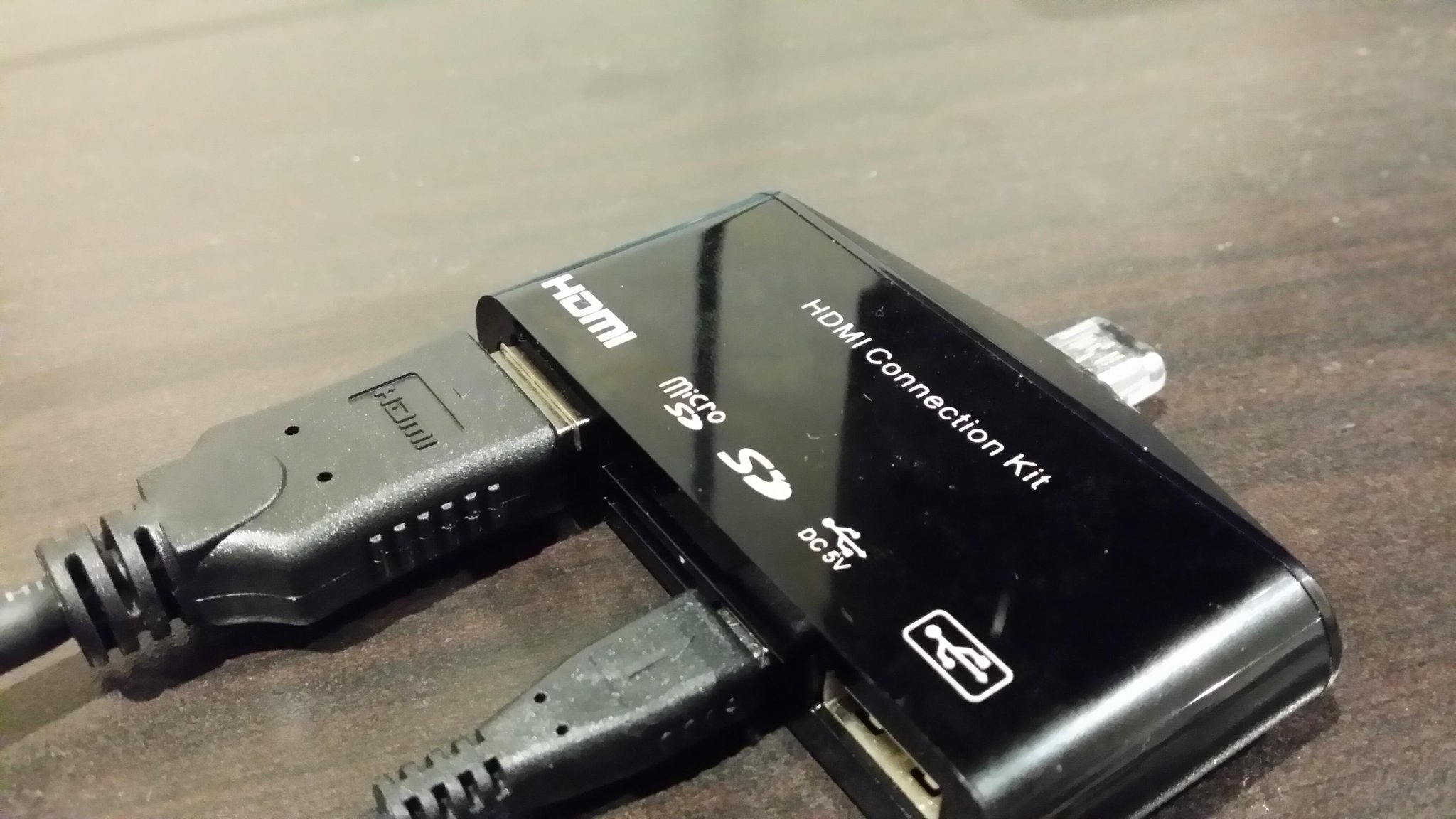

This arrived for me this week, finally got around to testing it tonight and can confirm it works well, which is a great result for the $11USD it cost me from Ebay (including shipping). Considering it basically does everything the Samsung Smart Dock does I'm well pleased.

Few notes:

Yes, it is MHL 1.0 - I kind of expect them to revise these to MHL 2.0 before Samsung actually get around to releasing an updated dock.

USB OTG functions will not work without a 2A Samsung charger connected apparently, I was initially using a cheap charger that happened to be in the multi-board the TV was plugged into and was disappointed when nothing would work. Got of my lazy @$$ and grabbed my Samsung charger and all working. Plugged in my externally powered USB hub and then a Logitech K400 keyboard/mouse combo, card reader with a 16GB full-sized SD card in it and also a Logitech F710 controller. Happily watched some video from the card and then played some Dead Trigger 2 on the HDTV with the controller.
Twitter: @nztechfreak
Blogs: androidnz.net, blog.clove.co.uk
Facebook: http://goo.gl/baZHQ


The Following 31 Users Say Thank You to NZtechfreak For This Useful Post: [ Click to Expand ]

maxnik1
Old
(Last edited by maxnik1; 16th September 2013 at 04:41 PM.)
#2
maxnik1's Avatar
Member
Thanks Meter 18
Posts: 88
Join Date: Jan 2009
Location: Ruse
Thanks as always.

I am a bit sad that Samsung did not update the smart dock to MHL 2.0, in my opinion 60Hz is so much better. So for now, there is no option for simultaneous USB OG and MHL 2.0.

Oh and I am seriously tempted by Moga Pro, but it is so damn expensive to import and game support make it even more difficult to buy. I am hoping Google will follow Apple and announce some sort of API for game controllers.

macdroid01
Old
#3
Senior Member
Thanks Meter 19
Posts: 140
Join Date: Mar 2011
i am also said we still can not do MHL with a USB keyboard+mouse and video out.

That could turn it into a portable laptop. Which is why I want a Note anyway. It's big. Ideally I'd also like it if the Flipcover had a built in bluetooth keyboard with hardware keys or perhaps someone made a QWERTY slider case for it. Yes I know it is big but yes it is what I ideally want.

How cool would it be to set your Note down, plug in keyboard, mouse, and to a monitor? Bam. Get to work (or surfing). Heck I'd probably stop using my laptop for a lot of things! Get a mini-USB hub for like 5 bucks and the possibilities are endless. Would be really cool if someone set up an easy dual-boot Linux and Android ROM too or maybe that is around. But the key is having video AND keyboard/mouse at the same time. I think over time Samsung will add this, though. They deliver on cool features like this. I bet it would be possible to add in an update of software to the Note 3??? USB 3 has so much bandwidth shouldn't it be possible?
The Following 2 Users Say Thank You to macdroid01 For This Useful Post: [ Click to Expand ]

fishma2
Old
#4
Junior Member
Thanks Meter 0
Posts: 1
Join Date: Jan 2010
Thank you very much!! I have been looking for someone to post this type of info. Has anyone seen anything that points to a OTG cable that supports 3.0 standards?

betelgeuse.aldebaran
Old
#5
Junior Member
Thanks Meter 1
Posts: 18
Join Date: Dec 2012
Thanks a lot. Happy to hear that smart dock works with it. With 2.3Ghz quad core, it definitely will replace my desktop.

mystik1
Old
#6
Member
Thanks Meter 7
Posts: 64
Join Date: Sep 2010
Quote:
Originally Posted by macdroid01 View Post

That could turn it into a portable laptop. Which is why I want a Note anyway. It's big. Ideally I'd also like it if the Flipcover had a built in bluetooth keyboard with hardware keys or perhaps someone made a QWERTY slider case for it. Yes I know it is big but yes it is what I ideally want.
I want this too. Something that you can hold without having to prop up the phone/screen. Slider would be ideal. I don't care if it adds a bit of bulk...just not as much as the one I tried for the S4. It was horrible, and didn't work well anyway. I'd love to see a really good solution put out for this.

hoezay
Old
#7
Senior Member
Thanks Meter 34
Posts: 202
Join Date: Oct 2010
Location: Mumbai
great info ! thanks !
The Following User Says Thank You to hoezay For This Useful Post: [ Click to Expand ]

BlueChris
Old
#8
BlueChris's Avatar
Senior Member
Thanks Meter 198
Posts: 676
Join Date: Aug 2011
Location: Athens


DONATE TO ME
Quote:
Originally Posted by macdroid01 View Post
i am also said we still can not do MHL with a USB keyboard+mouse and video out.

That could turn it into a portable laptop. Which is why I want a Note anyway. It's big. Ideally I'd also like it if the Flipcover had a built in bluetooth keyboard with hardware keys or perhaps someone made a QWERTY slider case for it. Yes I know it is big but yes it is what I ideally want.

How cool would it be to set your Note down, plug in keyboard, mouse, and to a monitor? Bam. Get to work (or surfing). Heck I'd probably stop using my laptop for a lot of things! Get a mini-USB hub for like 5 bucks and the possibilities are endless. Would be really cool if someone set up an easy dual-boot Linux and Android ROM too or maybe that is around. But the key is having video AND keyboard/mouse at the same time. I think over time Samsung will add this, though. They deliver on cool features like this. I bet it would be possible to add in an update of software to the Note 3??? USB 3 has so much bandwidth shouldn't it be possible?
I do exactly this with my note 10.1 .. bluetooth keyboard & Bluetooth mouse and Samsung All Share Cast Dongle to connect to TV. I suppose my note 3 when i receive it tommorow will be able to do the same

orbitech
Old
#9
Member
Thanks Meter 10
Posts: 70
Join Date: Dec 2009
Thank you for your feedback very informative and useful..
The Following User Says Thank You to orbitech For This Useful Post: [ Click to Expand ]

zmore
Old
#10
zmore's Avatar
Senior Member
Thanks Meter 887
Posts: 1,585
Join Date: Apr 2011
Location: NYC
Hah - Good to see you over here NZtechfreak. I remember your galaxys3 posts wrt to ps3 controllers from last year.

Glad to know that my old S3 MHL adapter will work.
Primary Phone: Note3 (SM-N900T); ROM: CyanogenMod 11 (KitKat 4.4.*); kernel: Stock @ 2.3GHz; misc: Incipio DualPro; 64GB class10 microSDXC
Other devices: Nexus 10 (stock), Moto X (GSM, unlocked & rooted)
Retired devices: SGS1 Captivate (SGH-i897) (internal flash died), SGS3 (SGH-i747), Nexus 7 (2012), Kindle Fire (otter), OG Galaxy Tab 7, ...)


The Following User Says Thank You to zmore For This Useful Post: [ Click to Expand ]
