[PREVIEW] Galaxy S3 - MultiBoot project in progress

OP Phil_Suz

20th December 2013, 02:34 AM   |  #1
OP Member
Flag Montreal
Thanks Meter: 287

91 posts
Join Date:Joined: Dec 2013
More

For technical questions,
Please use this thread now in dev subforum
:
http://forum.xda-developers.com/show....php?t=2684052
(new versions are published there)

[Updated 2014/03/10]
version 1.2
migration to twrp2.7.0.0
sizing of system/data/cache now possible
real internal/external sd mounted ( respectively in /storage/intsdcard and /storage/extsdcard )
new way to boot roms
[Updated 2014/02/07]
version 1.1 to fix kernel injection bug ( Slimkat not starting ) - kload_hardboot
[Updated 2014/02/05]
- new version d2att-twrp-v2.6.3-mb-v1.0 :
- Xposed fixed
- new feature to reboot from android
- new app multiboot.apk ( need d2att-twrp-v2.6.3-mb-v1.0 )

- add credits/reference at the end of message

- add zip version ( to be able to install without odin - only for d2att )


Hi all,

I managed to make working multiboot feature on Galaxy S3.

Below are some videos preview that I did demonstrating the features ( don't look at sound, I removed it because my english is not fluent).

This project is at an early stage but already working with limitations.

If you want to try it, beware that it is dangerous (no risk to brick but if you make mistake you risk to install a zip into your internal rom), so to test it, please follow exactly the operations in videos examples.

Very important recommendations to test :

- BACKUP all your data first !
- Use only your internal if you have at least 4G available ( 7GB recommended because I create sparsed img files but if you fill all the rom, it will take 7GB )
- Use your external sd card only if :
- you have at least 7 GB free
- your filesystem is vfat or ext4 ( exfat,ntfs not supported for the moment )
- Very very important : when you use "set rom" option, you have to see "command succeded" at the end of the output. If not, don't go further and reboot.
- start by playing with recovery roms ( check video ) before testing full rom
- creating rom on vfat can take about 15 minutes (to create img files). Be patient...
The method used is an adapted kexec-hardboot method created by mkasic (http://forum.xda-developers.com/show....php?t=1266827), but with a complete replacement of kexec by another userspace program ( kload-harboot ) and a very small kernel patch ( hardboot-reserve ).
Note also that this adapted method is easily portable to any android devices.

If you are interested in this project ( to help for testing, to help dev, to add features etc..), I will open a thread in the developpement subforum, to published sources and explanations.

Booting multiples ROMs demo:


Playing with recovery roms:


Creating a new rom, installing gapps ( if not done at first stage ) :

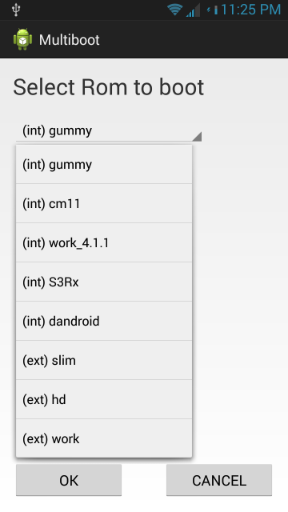

New Multiboot android app



Attachements :
Odin : use d2att-twrp-v2.6.3-mb-v1.1.tar
TWRP/CWM : d2att-twrp-v2.6.3-mb-v1.1.zip
Android app : Multiboot.apk ( need to allow unknown sources )
d2att-twrp2.7-mb-v1.2 : http://www.androidfilehost.com/?fid=23329332407577797


References / Credits :
mkasic : kexec-hardboot creator - http://forum.xda-developers.com/show....php?t=1266827
Tassadar : MultiROM creator - best project - http://forum.xda-developers.com/show....php?t=2011403 - bbootimg used
TWRP Team : http://www.teamw.in/project/twrp2

Philippe,
Attached Files
File Type: apk Multiboot_v1.0.apk - [Click for QR Code] (274.8 KB, 398 views)
File Type: tar d2att-recovery-mb-v1.1.tar - [Click for QR Code] (7.20 MB, 114 views)
File Type: zip d2att-recovery-mb-v1.1.zip - [Click for QR Code] (7.34 MB, 178 views)
Last edited by Phil_Suz; 6th April 2014 at 08:03 AM.
The Following 19 Users Say Thank You to Phil_Suz For This Useful Post: [ View ]
22nd December 2013, 02:38 PM   |  #2
Smash2Bash's Avatar
Senior Member
Thanks Meter: 135

411 posts
Join Date:Joined: Sep 2012
Is this for the i747? Because it can cause I brick. Not trying to bust your...yeah. But I wanna try it and don't wanna send it back to AT&T with a lie

Edit: Got it installed. Gotta use odin guys. All good. testing multiboot soon.

EditEdit lol: tested and good.
Sent from my SAMSUNG-SGH-I747 using Tapatalk
Last edited by Smash2Bash; 23rd December 2013 at 03:32 AM.
The Following User Says Thank You to Smash2Bash For This Useful Post: [ View ]
23rd December 2013, 04:00 AM   |  #3
OP Member
Flag Montreal
Thanks Meter: 287

91 posts
Join Date:Joined: Dec 2013
More
Quote:
Originally Posted by Smash2Bash

Is this for the i747? Because it can cause I brick. Not trying to bust your...yeah. But I wanna try it and don't wanna send it back to AT&T with a lie

Edit: Got it installed. Gotta use odin guys. All good. testing multiboot soon.

EditEdit lol: tested and good.
Sent from my SAMSUNG-SGH-I747 using Tapatalk

Hi Smash2Bash,

Sorry to answer lately. I did this program on i747M ( Bell canada provider ) with d2att cm10.2 kernel but as we share the same kernel, it should be fine. Just take care of warnings that I putted in first message. If you can share your experience and tell me if you found problems/bugs.
When I reach 10 posts, I will probalby open a dev thread.

Phil_Suz,
The Following User Says Thank You to Phil_Suz For This Useful Post: [ View ]
23rd December 2013, 04:05 AM   |  #4
Smash2Bash's Avatar
Senior Member
Thanks Meter: 135

411 posts
Join Date:Joined: Sep 2012
Quote:
Originally Posted by Phil_Suz

Hi Smash2Bash,

Sorry to answer lately. I did this program on i747M ( Bell canada provider ) with d2att cm10.2 kernel but as we share the same kernel, it should be fine. Just take care of warnings that I putted in first message. If you can share your experience and tell me if you found problems/bugs.
When I reach 10 posts, I will probalby open a dev thread.

Phil_Suz,

No problem man. It's working good. I tested cm11 paranoid android and it worked good. But I tested avatar ROM 4.3 and it didn't work so well. Probably a ROM issue. And these were tested with my internal ROM as 4.3 touchwiz. You should put in the OP to flash with Odin. And I found a bug I think....

When you make a new ROM and flash the ROM in the new slot, you must swap back to internal in order for it to boot. So you can't swap to it, and then boot it.

Sent from my SAMSUNG-SGH-I747 using Tapatalk
23rd December 2013, 08:33 AM   |  #5
Mikessv's Avatar
Senior Member
Flag Burlington, NJ
Thanks Meter: 39

219 posts
Join Date:Joined: Jul 2012
Donate to Me
More
Is there anyway to make a regular zip for this? I don't have access to a computer for Odin

Sent from my SAMSUNG-SGH-I747 using Tapatalk 2
23rd December 2013, 04:41 PM   |  #6
Junior Member
Flag Veracruz, México
Thanks Meter: 1

26 posts
Join Date:Joined: Dec 2011
More
Talking
it's a great tool for the people than change ROM all the time or the testers...well....it's my opinion....XD
23rd December 2013, 04:43 PM   |  #7
Smash2Bash's Avatar
Senior Member
Thanks Meter: 135

411 posts
Join Date:Joined: Sep 2012
Quote:
Originally Posted by fire_angel

it's a great tool for the people than change ROM all the time or the testers...well....it's my opinion....XD

Exactly! That's about be my exact purpose with this

Sent from my SAMSUNG-SGH-I747 using Tapatalk
24th December 2013, 02:28 AM   |  #8
OP Member
Flag Montreal
Thanks Meter: 287

91 posts
Join Date:Joined: Dec 2013
More
Quote:
Originally Posted by Smash2Bash

No problem man. It's working good. I tested cm11 paranoid android and it worked good. But I tested avatar ROM 4.3 and it didn't work so well. Probably a ROM issue. And these were tested with my internal ROM as 4.3 touchwiz. You should put in the OP to flash with Odin. And I found a bug I think....

When you make a new ROM and flash the ROM in the new slot, you must swap back to internal in order for it to boot. So you can't swap to it, and then boot it.

Sent from my SAMSUNG-SGH-I747 using Tapatalk

Thank's for feedback.
I will add the information that this preview has to be installed with Odin.
In fact, it is prerequisite to go back to original rom to be able to boot a Rom that you installed on internal sdcard ( /data/media/../) .
When you select a rom, it is to make operation on it ( install, wipe etc.. ) but not to boot on it. I admit that it is not very clear...

Quote:
Originally Posted by Mikessv

Is there anyway to make a regular zip for this? I don't have access to a computer for Odin

Sent from my SAMSUNG-SGH-I747 using Tapatalk 2

Yes, I will do it soon.

Quote:
Originally Posted by fire_angel

it's a great tool for the people than change ROM all the time or the testers...well....it's my opinion....XD

In my case, it was also to have my original rom (not rooted) for my work during work time, and use other roms outside work.
Last edited by Phil_Suz; 24th December 2013 at 02:33 AM.
The Following User Says Thank You to Phil_Suz For This Useful Post: [ View ]
15th January 2014, 05:07 AM   |  #9
balrog558's Avatar
Senior Member
Thanks Meter: 36

149 posts
Join Date:Joined: Apr 2012
This looks awesome I will try it out asap. Thanks for the hard work

Sent from my SAMSUNG-SGH-I747 using Tapatalk
15th January 2014, 05:52 PM   |  #10
Member
Thanks Meter: 6

54 posts
Join Date:Joined: Dec 2013
More
Wow! This looks awesome! I'll have to try it when I grow a pair of balls haha. I'm too scared to mess with my phone any further. (Especially since I did the 4.3 OTA.)
