[UTILITY|S-OFF] RegawMOD Bootloader Customizer for Verizon HTC One

Tip us?

junkmail9
Old
(Last edited by junkmail9; 25th October 2013 at 08:35 PM.)
#1
junkmail9's Avatar
Senior Member - OP
Thanks Meter 214
Posts: 409
Join Date: Jul 2008
Default [UTILITY|S-OFF] RegawMOD Bootloader Customizer for Verizon HTC One

Description
Verizon HTC One Plug-In for the RegawMOD Bootloader Customizer is now available!

WARNING: YOU MUST BE S-OFF TO USE THIS TOOL AND PLUG-IN

This plug-in will allow you to use the RegawMOD Bootloader Customizer written by regaw_leinad.

With the tool and this plug-in, you can easily create a custom HTC firmware zip for the Verizon HTC One containing a custom bootloader image. You will be able to edit the *** UNLOCKED *** text on the top to whatever you want it to say, change the S-OFF to S-ON, change the bootloader's minor version number, update the bootloader's date and time stamp, and either hide or customize the splash screen disclaimer. Using this tool to change S-OFF to S-ON changes only the text on the screen, it does not change your s-off status of the phone. Same goes for "locked"/"unlocked"/"Relocked" so be careful to remember the correct state of your phone.

Choosing the "Stock" option, the tool automatically sets your banner to say *** LOCKED ***, changes S-OFF to S-ON and hides the HTC Development Splash Screen Disclaimer.

This program will NOT flash the zip for you, but it will create a PN07VZW.ZIP file and save it your computer. From there, you then need to flash it via fastboot.

The process (flashing a new bootloader) is dangerous and may possibly brick your device if done incorrectly. You have been warned

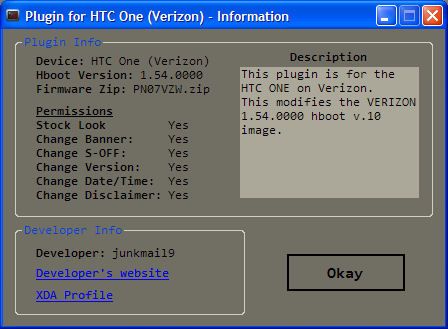

App Screenshot




Screenshot




This plug-in is based on the stock 1.54.000 hboot (v.10).


[SIZE=2]How To Flash A firmware zip (Devices without a removable sdcard)
  1. Reboot the phone into the bootloader by either:
    • Powering off your phone completely, then hold Volume-Down and Power until the phone boots into the bootloader
    • If you have the android sdk set up, type 'adb reboot-bootloader'
    • Use the RegawMOD Rebooter
  2. Connect your phone to the computer (if it isn't already) and issue the fastboot command
    Code:
    fastboot oem rebootRUU
  3. To flash the zip, issue the fastboot command
    Code:
    fastboot flash zip <YourZipName>.zip
  4. The device's progress bar may not be complete, but when the fastboot command says it's complete, issue the fastboot command below to see your changes
    Code:
    fastboot reboot-bootloader
  5. To complete the process, issue the fastboot command below to reboot your phone to normal operation
    Code:
    fastboot reboot

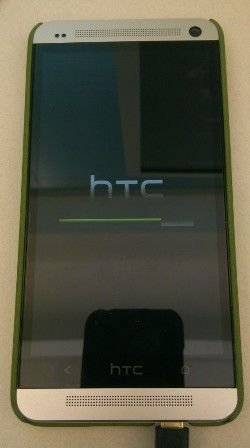

As noted in #4, the progress bar may not reach 100% when flashing this, and the the progress bar will likely look like this:



Just be sure to get the success response from the fastboot flash command and reboot via fastboot. Do not remove your phone from the computer until it has rebooted from the fastboot reboot command.

Download Latest Plug-In Release

Stock hboot 1.54.0000 v.10 Plug-In

MD5s are on the linked page. Be SURE to verify after downloading the plug-in.

This plug in works for the main app version 2.2.3 and newer.

Download Latest Bootloader Customizer App
The main app can be found in regaw_leinad's OP here: http://forum.xda-developers.com/show....php?t=1786498


Reminder
WARNING: YOU MUST BE S-OFF TO USE THIS TOOL AND PLUG-IN
USE AT YOUR OWN RISK - YOU COULD BRICK YOUR PHONE


Credits
Main Program and awesome instructions for plug-in: regaw_leinad <-- Be sure give him "Thanks" on his OP
Verizon HTC One Plug-in: Me
Brave Tester & Additional Support: mdmower
Also thanks to mdmower for the outstanding phone screenshots.
Additional thanks to:
cyber_prometheus for offering to be first to test
andybones for the request to make this plugin in the first place.
The Following 10 Users Say Thank You to junkmail9 For This Useful Post: [ Click to Expand ]

junkmail9
Old
#2
junkmail9's Avatar
Senior Member - OP
Thanks Meter 214
Posts: 409
Join Date: Jul 2008
Reserved
The Following 2 Users Say Thank You to junkmail9 For This Useful Post: [ Click to Expand ]

BreakingVZW
Old
#3
BreakingVZW's Avatar
Senior Member
Thanks Meter 322
Posts: 901
Join Date: Jul 2012
Location: Carmel
Lol awesome. Gonna use this like a mofo. Chocolate Chip Kick-Ass HTC One here I come.

Sent from my HTC6500LVW using XDA Premium 4 mobile app

---------- Post added at 05:43 PM ---------- Previous post was at 05:39 PM ----------

Who wants me to change it to F*ck Verizon and then go into a store and have their "tech support" check it out?

Sent from my HTC6500LVW using XDA Premium 4 mobile app
The Following 2 Users Say Thank You to BreakingVZW For This Useful Post: [ Click to Expand ]

andybones
Old
#4
andybones's Avatar
Senior Member
Thanks Meter 8861
Posts: 9,209
Join Date: May 2010
Location: Upstate NY


DONATE TO ME
will this v.10 hboot work correctly when I am still on firmware .8?
Team Ecliptic - Member/Co-Lead Developer

Motorola Droid > HTC Eris > HTC Incredible > HTC Incredible 2 > Galaxy Nexus > HTC Rezound > HTC Incredible 4G > Samsung Galaxy S3 > Samsung Galaxy S4 > HTC One M7 > HTC One M8

Buy me a beer.

mdmower
Old
#5
mdmower's Avatar
Senior Member
Thanks Meter 1040
Posts: 819
Join Date: Sep 2011
Location: Columbia, MO
@junkmail9: In step 4, how about having users do
Code:
fastboot reboot-bootloader
so they can see the results of their mod?
My Devices:
HTC Incredible 4G LTE (fireball) - CyanogenMod 10.2
Verizon HTC One (m7vzw) - CyanogenMod 10.2
ASUS Nexus 7 FHD (flo) - CyanogenMod 10.2

Worthwhile reads:
XDA Devs vs. NooBs | logcat or GTFO
So you want to root and mod your phone
My Projects:
HTC Incredible 4G LTE
CyanogenMod 10.1 | CyanogenMod 10.2 | TWRP Recovery
CWM(R-Touch) Recovery | Automated Unlock/SuperCID/Temp-Root scripts

HTC One Verizon
CyanogenMod 10.2
The Following User Says Thank You to mdmower For This Useful Post: [ Click to Expand ]

junkmail9
Old
#6
junkmail9's Avatar
Senior Member - OP
Thanks Meter 214
Posts: 409
Join Date: Jul 2008
Quote:
Originally Posted by mdmower View Post
@junkmail9: In step 4, how about having users do
Code:
fastboot reboot-bootloader
so they can see the results of their mod?
Excellent suggestion! I'll update the OP.

mdmower
Old
#7
mdmower's Avatar
Senior Member
Thanks Meter 1040
Posts: 819
Join Date: Sep 2011
Location: Columbia, MO
Quote:
Originally Posted by andybones View Post
will this v.10 hboot work correctly when I am still on firmware .8?
The answer is likely yes as long as you stay s-off, assuming only decryption keys were updated between hboots which is likely considering the hboot version number didn't increment between OTAs. Really though, the safest route is to install stock and let the v10 OTA apply. It is mostly just a radio update I believe, and then you're sure to have compatible firmware. You can stay s-off through this whole process.
My Devices:
HTC Incredible 4G LTE (fireball) - CyanogenMod 10.2
Verizon HTC One (m7vzw) - CyanogenMod 10.2
ASUS Nexus 7 FHD (flo) - CyanogenMod 10.2

Worthwhile reads:
XDA Devs vs. NooBs | logcat or GTFO
So you want to root and mod your phone
My Projects:
HTC Incredible 4G LTE
CyanogenMod 10.1 | CyanogenMod 10.2 | TWRP Recovery
CWM(R-Touch) Recovery | Automated Unlock/SuperCID/Temp-Root scripts

HTC One Verizon
CyanogenMod 10.2

regaw_leinad
Old
#8
regaw_leinad's Avatar
Recognized Contributor / Recognized Developer
Thanks Meter 3621
Posts: 3,658
Join Date: Jan 2010
Location: Seattle, WA
Awesome you got this tested! Nice work, @junkmail9.
Device: HTC One (AT&T)
Recovery:TWRP 2.6.3.0 | Bootloader: S-OFF
ROM: Stock



My Development Threads

Watch my programming tutorials on YouTube - BetterCoder
I'm also a professional musician - YouTube - SoundCloud


Please don't post just to say "Thanks" - There's a button for that . Be sure to use it!
The Following 2 Users Say Thank You to regaw_leinad For This Useful Post: [ Click to Expand ]

regaw_leinad
Old
#9
regaw_leinad's Avatar
Recognized Contributor / Recognized Developer
Thanks Meter 3621
Posts: 3,658
Join Date: Jan 2010
Location: Seattle, WA
weird double post... oops
Device: HTC One (AT&T)
Recovery:TWRP 2.6.3.0 | Bootloader: S-OFF
ROM: Stock



My Development Threads

Watch my programming tutorials on YouTube - BetterCoder
I'm also a professional musician - YouTube - SoundCloud


Please don't post just to say "Thanks" - There's a button for that . Be sure to use it!
The Following User Says Thank You to regaw_leinad For This Useful Post: [ Click to Expand ]

jmotyka
Old
#10
jmotyka's Avatar
Senior Member
Thanks Meter 58
Posts: 456
Join Date: May 2009
Location: Right behind U!
I keep getting error loading plugin even though i have it in the same folder as RegawMod. They are the only two files in that folder TBH. IDK what to do from here.
