Talking [GUIDE] How To Make Bootanimation

Hello Everyone
Here Is The Tutorial On How to Create Ur Own Boot Animation for U r Mobile... (Specifically Using Bootanimation Factory By @despotovski01)
Requirements :
1) Windows OS
2) BootAnimation Factory ( Press Thanks Button For His Awesome Work Without Which I Would Have Never Learned It )
3) Image Resizer (To change the resolution of the images)
4) Image Editing Software ( Your wish)
(A)Photoshop (B) GIMP
5) 7Zip
6) Notepad++


What Is BootAnimation??
The Android boot animation is contained within a an uncompressed zip file called bootanimation.zip that can be found in the media folder of the system partition i.e. /system/media on the internal memory of the device. This single file contains all the information required to play the boot animation, and is loaded automatically when the device boots.

What a Bootanimation.zip Contains??
. If you extract the contents of the bootanimation.zip file to your computer, you will see:
1) A desc.txt file
2) A part0 folder (Contains PNG images named in incremental numbers)
3) More part1, part2 etc. folders (May or may not be present)
As you can see, bootanimation.zip merely contains one text file and one or more folders with PNG images. The animation is played simply by displaying the images in a sequence, and the text file defines how they are to be played. In essence, first the PNG files in the part0 folder are displayed one after the other and afterwards, those in the part1 file – if it exists – are displayed, again one after the other, and so on. All of this is defined in the desc.txt file.hence desc.txt file is vital file for creating a bootanimation.


Now Will See What Each Files And Folder Does
Imp : This Guide Is Applicable To All Devices..The Change is The RESOLUTION of your Device Change The Resolution Suitable To Your Device Using Image Resizer.Resolution Details Can Be Found On Device Specification.

The folders

These contain PNG images named in numbers, starting from something like 0000.jpg or 00001.jpg and proceeding with increments of 1. There has to be at least one folder, and there is no known upper limit to the number of folders.
The desc.txt file

This file defines how the images in the folder(s) are displayed during the boot animation, in the following format:
Width Height Frame-rate
p Loop Pause Folder1
p Loop Pause Folder2
An example of a desc.txt file is:
720 1280 30
p 1 0 part0
p 0 0 part1
As you can see, in the first line, 720 and 1280 define the width and height of the boot animation in pixels for this example. This must be the same as the screen resolution of your device for the boot animation to properly play in full screen. 30 is the frame rate in fps (frames per second) i.e. number of images to display per second.
The second and third lines have a same format, start with p, which stands for a part of the animation and end in part0 or part1, which denotes the folder in which the images for that part are present.
The number after ‘p’ defines how many times this part will loop (repeat playback) before switching to the next part (if present). Specifying 0 would make the part loop indefinitely till the phone has fully booted.
The next number is for the pause, and is expressed in the number of frames, which can be translated into time by dividing it by the frame rate. A pause of 15 for example, would mean pausing for the time it takes 15 frames to play and since the frame rate is 30 frames per second, 15 frames would take half a second.
Translating all of this in case of the above example, the boot animation will play at a resolution of 720 by 1280 pixels, at a frame rate of 30 fps, starting with the contents of part0 folder and after playing them in one loop, switching to contents of part1 folder and playing them continuously till the device fully boots. Best method to find which FPS suits your mobile is open the current Running Bootanimation from your device open the desc.txt and see and enter the same value.

Steps To Create Ur Own Bootanimations
1) Download All The Necessary Tools U need To For This.
2) Install The Necessary Softwares.
3) Go through the entire Inside the bootanimation.zip File Which I will attach at the end of this guide.
4) Plan how your boot animation will run. This includes how many distinct parts it will have, how long will each part play and what will be the sequence of the parts.
5) Make a new folder at any convenient location on your computer, and name it bootanimation.
6) In this folder, create a folder for each part of your boot animation, named part0, part1 and so on.
7) In the image editor of your choice (Adobe Photoshop,GIMP), make all the image files for each part of your boot animation with the proper dimensions equal to your phone’s screen resolution, and save them in the respective folder for each part, in PNG format. Up to 32 bit PNGs are supported.
Note: In case you are converting an existing boot animation to fit your phone’s screen, simply extract the images from it and resize each of them to your device’s screen resolution.
8) Make sure the images are named in numerical format and in proper sequence, i.e. the images in the first part should start with let’s say 00000.jpg and go on till 00075.jpg, and the images in the second part should then start off with 00076.jpg and go on till – for instance – 00123.jpg.
9) Now open the Boot Animation Factory Tool.

10) Click on “Create a New Boot Animation” Button.
11) There will be 2 options Asking for Source (1)From folder and (2) From GIF. Since In This Guide I have used Folder Method, Select Folder and click OK

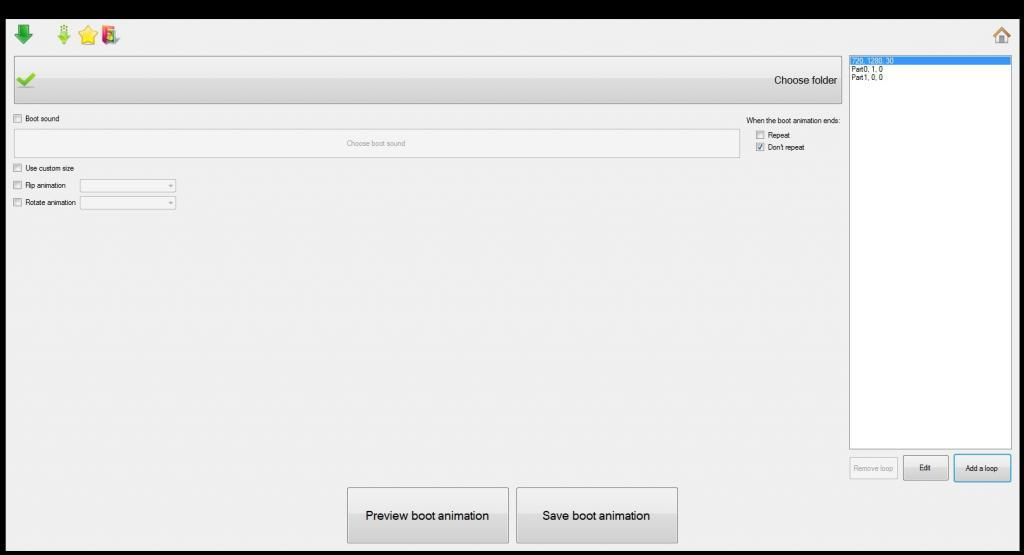

12) Click On Choose folder and Select The bootanimation folder were u had stored all the necessary folders and images.

13) At the Right Hand Side You Can see the tab were the Resolution of The pics will be displayed..You can edit it and change the resolution and FPS too. Let the setting be “Don’t Repeat”

14) click on add loop button.
15) Select The Folder Ex: part0 . For this folder Set THE LOOP to 1 and TIME DELAY to 0 ( You Can Put your Custom delay if u wish) and Click ADD button.

16) Repeat the Step 15 but here Select the next part In Folder Ex : part1
17) If U have more part folders select the respective part and repeat the Step 15.
18) For last folder ( Ex : If part1 is last folder ) the SET THE LOOP to 0 . So that it Repeats

19) You can PREVIEW your bootanimation before saving by clicking on PREVIEW Button.
20) Click Save Boot Animation Button and name it has “bootanimation”


You Have Done A Bootanimation Successfully..

How To Put It In Your Device?
File browser method (Rooted devices only):

1) Connect your phone to your computer via USB and mount the storage card for file transfer.
2) Copy the bootanimation.zip file that you want to install, to your SD card.
3) Unmount USB storage and launch the file browser of your choice on your phone.
4) Browse to /system/media, copy the existing bootanimation.zip file from there and paste it somewhere safe on your SD card.
5) Browse to the location on the SD card where you copied the new bootanimation.zip and copy it.
6) Browse to /system/media and paste the bootanimation.zip file there.
7) If you are using Root Explorer App, you will have to Touch ‘Mount R/W’. This will make your system partition writeable.
8) Check if the permissions are rw-r—r—. If not, change them to that.
9) Reboot And Enjoy Your New Bootanimation Done by You

Credits :
@despotovski01 for his AWESOME BOOTANIMATION FACTORY.... Thread Located Here

FOR SAMPLE DOWNLOAD ANY FROM GOOGLE
Any Doubts Always Free To Post Here
IF ANYONE HAS DONE BOOTANIMATION SUCCESSFULLY POST IT HERE OR DO LET ME KNOW HERE.
ENJOY!!!



IF IT HELPED YOU KINDLY PRESS THANKS BUTTON SO THAT I WILL KNOW HOW MANY PEOPLE ARE BENEFITED FROM IT
MY WORKS

Rom's

AICP [I9082] , [Mi3]
Liquidsmooth [I9082]
Nameless [i9082] , [Mi3]
Spirit Rom [I9300] , [N7000]

Carbon Rom [ Xiaomi Mi 3]

Guides

Android Rom Development
Bootanimation

The Following 55 Users Say Thank You to jackeagle For This Useful Post: [ Click to Expand ]

jackeagle
Old
(Last edited by jackeagle; 22nd May 2014 at 06:23 PM.)
#2
jackeagle's Avatar
Recognized Contributor - OP
Thanks Meter 1,158
Posts: 756
Join Date: Apr 2013
Location: XDA
Talking Converting Video Into Bootanimation...!!

POST - 2

Converting Video Into Bootanimation...!!

Here is the Tutorial on How To Extract Frames From Video File for Creating Bootanimation!!

Requirements
1) Windows OS.
2) Free Video to JPG Converter

Steps To Extract Frames (Images) from A Video :
1) Download the necessary tools required.
2) Open Free Video to JPG Converter.

3) Now Click On The Browse Button And Add Your Video File To Software.

4) Click the lower Browse (Save To) button. Choose the location where you would like to save your snapshots. Click Ok.
5) Set the video frames you want to save as snapshots.
6) For example you can extract every hundredth video frame, frames in every 10 seconds, total 200 frames or even every frame.


Note: Be careful with the "Every frame" option. The total size of the extracted images may be several times bigger than the input file size!
7) Click convert button and wait images to be extracted.

7) Now Resize the Images To The Resolution Of Your Device Using Image Resizer ( Post 1). Example: In my case I take 480x800

8) Follow The Guide In Post (1) To Create Bootanimation using these Images.


IF IT HELPED YOU KINDLY PRESS THANKS BUTTON SO THAT I WILL KNOW HOW MANY PEOPLE ARE BENEFITED FROM IT
MY WORKS

Rom's

AICP [I9082] , [Mi3]
Liquidsmooth [I9082]
Nameless [i9082] , [Mi3]
Spirit Rom [I9300] , [N7000]

Carbon Rom [ Xiaomi Mi 3]

Guides

Android Rom Development
Bootanimation

The Following 12 Users Say Thank You to jackeagle For This Useful Post: [ Click to Expand ]

jackeagle
Old
(Last edited by jackeagle; 30th May 2014 at 05:14 PM.)
#3
jackeagle's Avatar
Recognized Contributor - OP
Thanks Meter 1,158
Posts: 756
Join Date: Apr 2013
Location: XDA
POST-3

THIS GUIDE (POST-3) IS ONLY APPLICABLE TO SAMSUNG DEVICES NOT ANY OTHER ONLY SAMSUNG MOBILES.
CONVERTING BOOTANIMATION.ZIP TO .QMG FILE FOR STOCK ROM'S

HELLO EVERYONE
Requirements :
1) Windows OS
2) Image Resizer (To change the resolution of the images)
3) Image Editing Software ( Your wish)
4) 7Zip
5) Samsung Theme Designer

THIS GUIDE IS THE PART OF [GUIDE] How To Make Custom Bootanimation
What is .QMG files?
These files are done by using Samsung Theme Creater Officially. Its there own way of making animation which ends with making files having .qmg extension. Shocking is Samsung Theme Designer cannot open QMG files, it can only create them
What Does it Contain?
It has 2 files
1) Bootsamsung.qmg
2) Bootsamsungloop.qmg

These 2 files are always together has in general they are together bootanimation.zip.
What Does Each File Do?
1) Bootsamsung.qmg
It contains the files needed for boot. These files are not repeatable.
Ex : From bootanimation.zip if there are 2 folders part0 and part1 then part0 is the folder used to make bootsamsung.qmg
2) Bootsamsungloop.qmg
It contains the files for loop execution. These files are repeatable. Its similar to desc.txt file instruction.
Ex : From bootanimation.zip if there are 2 folders part0 and part1 then part1 is your loop and this folder is used to create Bootsamsungloop.qmg.Remember when we made bootanimation .zip we had put no of loops=0

How To Convert Bootanimation.zip To .QMG files

IMP : HERE I CONSIDER THAT THE BOOTANIMATION.ZIP CONTAINS PART0 AND PART1 FOLDER.
MAKING BOOTSAMSUNG.QMG

1) Open Samsung Theme Designer Software.

2) Click create new theme, use type "feature(NonTouch) phone", then "select model" and use any model.
3) Select Default and Name your theme.

4) Choose "Idle Component" then "Idle Background" and change "Background Type" to "animated".


5) Enter No of Frames and hit enter that is nothing but no of pics in part0 folder.


6) Enter delay (This is bit tricky) here its in ms (milli seconds not FPS) to convert that follow this 1000 / (framerate) = (time given in ms)
for example:
1000 / 20fps = 50ms
or
1000 / 25fps = 40ms

7) Under Repeat option select FALSE for bootsamsung.qmg and TRUE for bootsamsungloop.qmg.

8) Drag your image files sequence from your folder(here its part0 folder) to the empty squares in the bottom of the theme designer.

9) Now export your theme and accept the Samsung terms & conditions and wait for your .STM file theme to be created.


10) Once its done click yes to open the saved folder there Rename the .STM file to .ZIP file and open it.


11) After opening zip file drag "IdleBgAnimObj.qmg" to anywere u wish preferably to desktop.


12) Rename the "IdleBgAnimObj.qmg" has bootsamsung.qmg


13) Now your boot file is Read but wait still loop is not done for that follow the below steps.

Creating Loop File :
1) Open Samsung Theme Designer Software.
2) Click create new theme, use type "feature(NonTouch) phone", then "select model" and use same model has above.
3) Select Default and Name your theme.
4) Choose "Idle Component" then "Idle Background" and change "Background Type" to "animated".
5) Enter No of Frames that is nothing but no of pics in part1 folder.

6) Enter delay (This is bit tricky) here its in ms (milli seconds not FPS) to convert that follow this
1000 / (framerate) = (time given in ms)
for example:
1000 / 20fps = 50ms
or
1000 / 25fps = 40ms
7) Under Repeat option select TRUE for bootsamsungloop.qmg.

8) Drag your image files sequence from your folder(here its part1 folder) to the empty squares in the bottom of the theme designer.

9) Now export your theme and accept the Samsung terms & conditions and wait for your .STM file theme to be created.
10) Once its done click yes to open the saved folder there Rename the .STM file to .ZIP file and open it.
11) After opening zip file drag "IdleBgAnimObj.qmg" to anywere you wish preferably to desktop.
12) Rename the "IdleBgAnimObj.qmg" has bootsamsungloop.qmg

13) Copy the both files and keep them together.

YOU HAVE SUCCESSFULLY DONE THE .QMG FOR STOCK ROM'S
