Default Custom Boot Images here

I merged all the bootscreens from the original boot screen thread in development. Over taking "aron4588" as the thread creator of this one. His original post is in 12.
Sorry "aron4588"

This is updated with the latest tool. (Windows)
I included a zip with all files you may need at the bottom of the post.

1. Turn off your phone

2. Turn on the phone into bootloader (camera+power).
Make sure it say fastboot in the middle if not hit back and it should appear-

3. Make sure your device is found in device manger
If you don't see adb device up top in device manger find the yellow mark devices
Right Click, update driver, and point to the location of the USB Driver
(http://dl.google.com/android/android_usb_windows.zip)
(Driver for 1.5r2)
If you have the "new spl" you're going to need the new usb drivers
(http://sapphire-port-dream.googlecod...er_updated.zip)

4. Open and extract the below zip to your desktop
You should now have a custom and fastboot folder on your desktop

5. Open up a dos window (start>run>CMD)

6. Type cd desktop then cd fastboot

7. If you would not like to flash the sample images skip to step 9

8. copy and paste the command line by line
fastboot flash splash1 mysplash.rgb565
fastboot flash splash2 mysplash.rgb565 You dont get a splash2 option with the "NEW SPL"
fastboot reboot

Part 2 Making your own images
9. Open up the "create" folder

10. Run CreateG1Splash.exe

11. Open up your image in the program and click convert

12. Go to the folder of your images and their you will find mysplash.rgb565

13. Place the mysplash.rgb565 into the fastboot folder

14. copy and paste the command line by line
fastboot flash splash1 mysplash.rgb565
fastboot flash splash2 mysplash.rgb565
fastboot reboot


Files updated 1/4/08
Credit to JF for all app to make this possible

OR get Boot Screen Flasher 3000 by dom2684 & Octoberriot
Attached Files
File Type: zip Boot_images.zip - [Click for QR Code] (880.8 KB, 4328 views)

xMemphisx
Old
#2
xMemphisx's Avatar
Member - OP
Thanks Meter 32
Posts: 78
Join Date: Dec 2008
to build the file yourself go to the root android source directory (mine is linux, but it looks like this "/home/ryan/android_source"), your's might look something like "C:/Source Codes/android/" or whatever. Once you navigate to that directory (via the command prompt... just go to start > run > and type in 'cmd' and hit enter, then use the 'cd' command to get there... e.g., "cd C:/Source Codes/android/"), once there, simply type 'make' and hit enter and it will start building everything, it might take a few minutes to complete. Then just go into the 'out' directory, then it's under "host/windows-x86/bin" (i'm not sure about the windows-x86 part, it might just be windows or something like it, i'm just assuming based on mine), once in that folder you'll have the fastboot as well as all of the other binary files ready to go. Then you can just type fastboot w/e w/e and it'll work just fine.

Here's my updated bootloader logo:



It's kind of difficult to see, my camera sucks... it's my fraternity letters with the crest in the background. Here's the image i used for it:


TheDudeOfLife
Old
#3
Senior Member
Thanks Meter 42
Posts: 888
Join Date: Jul 2008
Location: Chicago


DONATE TO ME


Here's what I finally settled on.

Take 2...


damien667
Old
#4
Senior Member
Thanks Meter 41
Posts: 143
Join Date: Oct 2008
I found this one on google, I think it suits me
Attached Thumbnails
Click image for larger version

Name:	Think_Linux_320X480_iPhone_Mobile_Wallpaper.jpg
Views:	1636
Size:	9.3 KB
ID:	193436

wyseman76
Old
#5
Member
Thanks Meter 0
Posts: 30
Join Date: May 2008
Ok, before i go dual booting my system , as i have Vista x64 now. I want to know if i can use ubuntu x64 for this process or would it be best to use the 32 bit version.

Here is the boot image I put together that i want to use. Still futzing with it but this is the general idea.


SGTDavePwnage
Old
#6
Senior Member
Thanks Meter 0
Posts: 157
Join Date: Nov 2008
Exclamation Stock Boot Logos

For anyone that wants a copy of the stock images, for instances of RMA/repair.......Here they are.

The file contains both UK and US logos





Thanks to JesusFreke and Tobes, for the rip coding and the UK logo
Attached Files
File Type: zip Boot logos.zip - [Click for QR Code] (9.7 KB, 621 views)

LGSilva
Old
#7
LGSilva's Avatar
Senior Member
Thanks Meter 141
Posts: 647
Join Date: May 2007
Default Custom Boot Screen

Just sharing the boot screen I'm using. Made by me on PS. Enjoy.

LGSilva
Old
#8
LGSilva's Avatar
Senior Member
Thanks Meter 141
Posts: 647
Join Date: May 2007
Yes, you need to convert the picture.
Just in case here is the raw file.
Attached Files
File Type: zip mysplash.zip - [Click for QR Code] (39.3 KB, 468 views)

Stericson
Old
#9
Stericson's Avatar
Retired Senior Mod / Senior Recognized Developer - Godfather of Android Theming
Thanks Meter 380
Posts: 1,193
Join Date: Nov 2008
Sure, I can provide the base image. On mine however, I customized it with some of my information, such as my name, etc. That way if it ever gets stolen, the thief will be reminded of it everyday

Stericson
Attached Thumbnails
Click image for larger version

Name:	splash.png
Views:	587
Size:	48.4 KB
ID:	193439

s0niqu3
Old
#10
s0niqu3's Avatar
Senior Member
Thanks Meter 389
Posts: 716
Join Date: Feb 2005


DONATE TO ME
Quote:
Originally Posted by infernix View Post

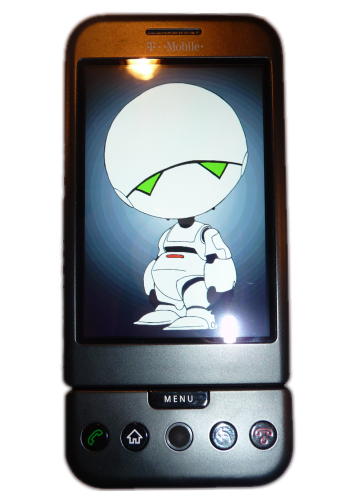

“It won't work,” droned Marvin, “I have an exceptionally large mind.”

I really liked this idea, so I found the image at deviantart, and made a copy of your boot image, and for anyone else, I've attached the splash.raw565 file (zipped) to this post.

Cheers guys, and happy new year!

-- michael
Attached Files
File Type: zip marvin_splash.zip - [Click for QR Code] (78.5 KB, 779 views)
