[Jan 16] [Tutorial] Use Your Windows Phone 7 HD2 As A Portable USB Drive

16th January 2011, 04:52 AM   |  #1
cdguider's Avatar
OP Senior Member
Flag Georgia
Thanks Meter: 169

580 posts
Join Date:Joined: Nov 2006
Donate to Me
More
Source: How to Use Your Windows Phone 7 Device as a Portable USB Drive

If you find this usefel please click Thanks.

With the new Microsoft Windows Phone 7 platform the possibility of having access to the file system on your device has disappeared compared to the Older Windows Phones. However with a couple simple registry edits you are able to have access again to the file system on your Windows Phone 7 , just like an USB drive.

As mentioned above it takes just a few steps in the Registry of your computer to make your Windows Phone device visible as one of the drives in “My Computer” If you are not familiar with the Registry Editor I will warn you that caution is needed and you might not want to try this.

Steps to activate the USB mode of your Windows Phone 7 device.
•Open Windows Registry Editor by typing regedit in your start menu
•Go to HKEY_LOCAL_MACHINESYSTEM
•Then go to HKEY_LOCAL_MACHINESYSTEMCurrentControlSetEnumUSB (and not the other ControlSet01 or 02 if you have them) and then search for ZuneDriver using the Edit-> Find in the top menu bar
•One of the folders you will find close by is named VID_045E&PID_04EC&MI_00
•The sub folder under one or two below are your possible devices. In my case there are 2 devices.



•Change ShowInShell from 0 to 1<- this enable Windows Explorer to show the device when pluged in
•Change PortableDeviceNameSpaceExcludeFromShell from 1 to 0
•Change EnableLegacySupport from 0 to 1 <- this enables Windows Explorer to detect the device.
•You can repeat these steps for your other sub-folders under VID_045E&PID_04EC&MI_00 if you have more devices.

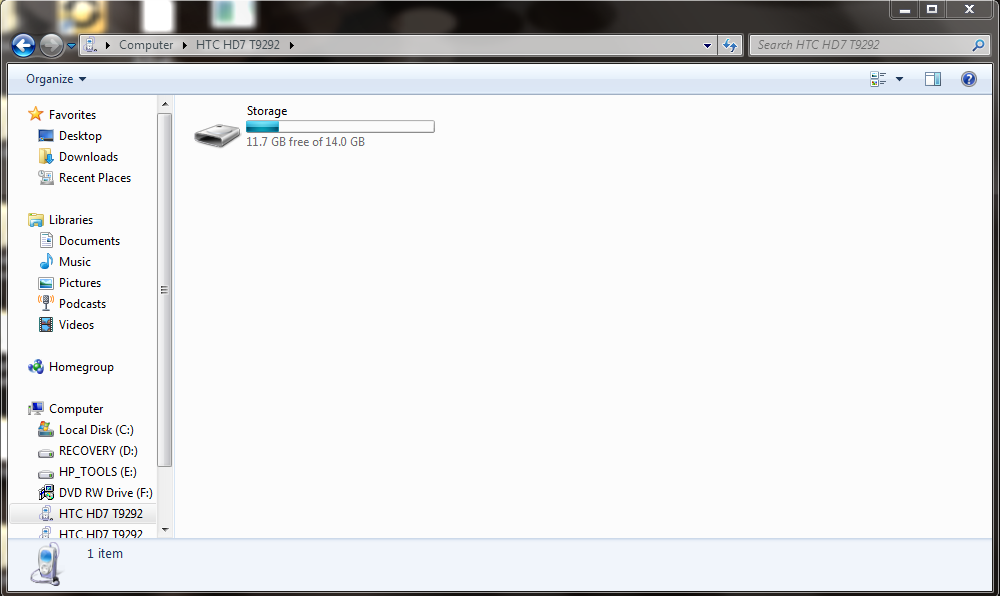

Now you just connect your Windows Phone 7 device to your desktop. Your Zune software will automatically, let it sync. Once it is done close your Zune Desktop application and now you will be able to see and browse your device as a drive in “My Computer”



If you have any questions ask or send me a PM.
Last edited by cdguider; 25th January 2011 at 04:30 AM.
The Following 96 Users Say Thank You to cdguider For This Useful Post: [ View ]
16th January 2011, 05:15 AM   |  #2
Senior Member
Thanks Meter: 3

201 posts
Join Date:Joined: Jun 2007
Thanks it worked for me.
So now I can just copy my word docs to the phone.
The Following User Says Thank You to craig540 For This Useful Post: [ View ]
16th January 2011, 07:11 AM   |  #3
Member
Flag Tehran
Thanks Meter: 29

71 posts
Join Date:Joined: Nov 2010
More
Cool.
Will the same registry steps work for Windows XP as well?
16th January 2011, 07:22 AM   |  #4
Member
Thanks Meter: 0

31 posts
Join Date:Joined: Feb 2010
thanks a lot man.. it works for me too!!
16th January 2011, 07:23 AM   |  #5
cdguider's Avatar
OP Senior Member
Flag Georgia
Thanks Meter: 169

580 posts
Join Date:Joined: Nov 2006
Donate to Me
More
Maybe
All you can do is try,

Shouldn't hurt anything.


Quote:
Originally Posted by aadd

Cool.
Will the same registry steps work for Windows XP as well?

16th January 2011, 08:01 AM   |  #6
swordfish2009's Avatar
Senior Member
mumbai
Thanks Meter: 15

290 posts
Join Date:Joined: May 2008
More
sweet... Now windows 7 developement will boost and HD2 people are here..
16th January 2011, 09:49 AM   |  #7
Senior Member
Thanks Meter: 2

115 posts
Join Date:Joined: Mar 2006
XP?
What about us poor bastards still using the good ol' XP? There's no ZuneDriver entry in the registry.
16th January 2011, 09:54 AM   |  #8
-Spyros-'s Avatar
Member
Flag Illerzell
Thanks Meter: 5

57 posts
Join Date:Joined: Dec 2009
More
Hey,

do u have ZUNE installed?

@cdguider,

THNX!!!!!!...It works

Greetings
16th January 2011, 10:07 AM   |  #9
Senior Member
Flag BrasoV
Thanks Meter: 208

1,743 posts
Join Date:Joined: Aug 2008
Donate to Me
More
or u can install this reg - remove .zip extension.. (zune must be instaled)
Attached Files
File Type: zip usb zune.reg.zip - [Click for QR Code] (5.4 KB, 1943 views)
The Following User Says Thank You to criszz For This Useful Post: [ View ]
16th January 2011, 10:42 AM   |  #10
cdguider's Avatar
OP Senior Member
Flag Georgia
Thanks Meter: 169

580 posts
Join Date:Joined: Nov 2006
Donate to Me
More
Registry Edit Attachment
Let me know if this is working for anyone.

The registry file attached would have to add an additional device.

In theory it should work.

Quote:
Originally Posted by criszz

or u can install this reg - remove .zip extension.. (zune must be instaled)


The Following User Says Thank You to cdguider For This Useful Post: [ View ]
