Battery charging rate

[Rockman195]

Hey everyone I'm trying to gauge if my note pro is faulty or if this is just normal for them. It seems to take a really long time to charge and I've even had the battery percentage go down While plugged in and doing some light browsing. Here's a screenshot of the battery info while charging and it seems like that's a really long for it to charge. I appreciate any insight thanks.

Sent from my SM-P900 using XDA Free mobile app



[rodnok1]

If you are using less than 2 amp charger it will not keep up with tablet on. Tablet off charging time doubles if 1 amp charger. I use a standard micro USB cable usually, the usb 3 cable charges faster when using 2 amp charger I believe.

Sent from my SAMSUNG-SM-P907A using XDA Free mobile app



[Rockman195]

Not sure why the screenshoot I took didn't show but let me try again.

I've had the tablet discharge even when using the 2A charger, but it was microusb not usb3. If I'm using the 2A brick does the microusb vs usb3 cable make a difference?

The screenshoot was taken while plugged into a microusb cable into a 1A brick. I get that the 1A will be slower, but 2 hours to go 15% seems crazy and the tablet was merely powered on and connected to wifi, not in use.



[Beut]

Hey everyone I'm trying to gauge if my note pro is faulty or if this is just normal for them. It seems to take a really long time to charge and I've even had the battery percentage go down While plugged in and doing some light browsing. Here's a screenshot of the battery info while charging and it seems like that's a really long for it to charge. I appreciate any insight thanks.

Sent from my SM-P900 using XDA Free mobile app

Common problem of Galaxy Note and Tab Pro: cracked battery connector. Resolder battery connector will fix : quick discharge, long charge time, not fully charged, battery capacity fluctuation....etc...
This black battery connector was re soldered already to fix this problem:

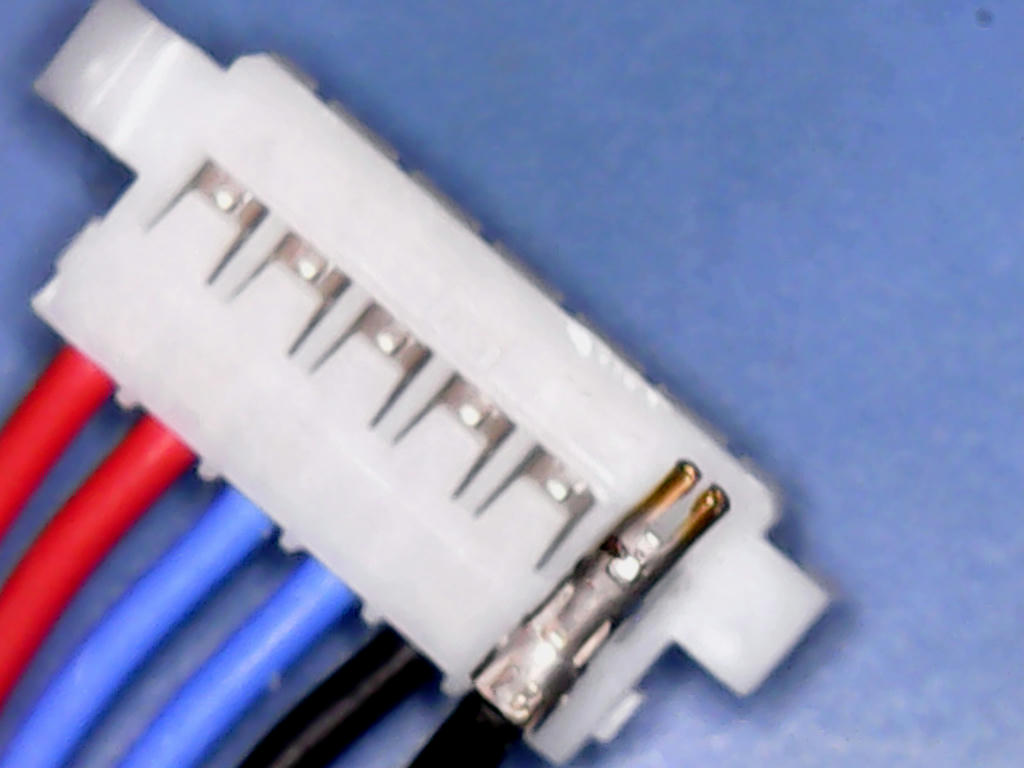

As seen in above picture, battery cables are not fully contact with pins of male battery connector also are the source of problem.

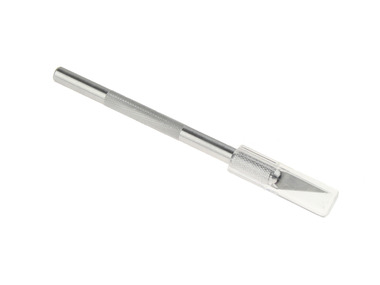

The fix is simple: pushing the opening closer, you need a magnified glass and thin knife to do this:

After the fix, this is a good connection between male and female battery connector:



[BarryH_GEG]

It takes Exynos (which a P900 is) Note 12's over 8 hours to fully charge. I had a Exynos 10.1-14 and it took seven hours. It's one of the reasons I got a Snapdragon Note 12 because it cuts charging time dramatically.



[ShadowLea]

A few things to consider:

Never, absolutely never use a 1A charger with a device this powerful. It will drain more than it charges.
1A chargers are not powerful enough for modern quadcore devices. Even the Note 3 (which has the same hardware) requires 2 hours to charge 30% when using a 1A charger. (It has a significantly smaller battery than the NotePro)

USB2/MicroUSB charges at a rate of 500mA.
USB3 charges at a rate of 900mA.

(The small side of the USB3 plug is what makes it USB3, the other side is just a regular MicroUSB 2.0)

This also applies to the amount of power the cable itself will transfer. A such, using a USB2.0 cable will severely limit charging speed.

Another thing of importance is the device itself. The P905 has Qualcomm Fastcharge. The P900 does not. That amounts to several hours of difference in charging rate.



[Rockman195]

A few things to consider:

Never, absolutely never use a 1A charger with a device this powerful. It will drain more than it charges.
1A chargers are not powerful enough for modern quadcore devices. Even the Note 3 (which has the same hardware) requires 2 hours to charge 30% when using a 1A charger. (It has a significantly smaller battery than the NotePro)

USB2/MicroUSB charges at a rate of 500mA.
USB3 charges at a rate of 900mA.

(The small side of the USB3 plug is what makes it USB3, the other side is just a regular MicroUSB 2.0)

This also applies to the amount of power the cable itself will transfer. A such, using a USB2.0 cable will severely limit charging speed.

Another thing of importance is the device itself. The P905 has Qualcomm Fastcharge. The P900 does not. That amounts to several hours of difference in charging rate.

Interesting and good to know. Would a Micro USB to usb3 adapter do anything on a cable or no? Ordered some 2a power bricks since I only had one previously

Sent from my SAMSUNG-SM-G920A using XDA Free mobile app



[BarryH_GEG]

Using a USB2.0 cable will severely limit charging speed.

Not true. The way Samsung implented USB 3.0 the sole advantage is transferring files from the device more quickly. So no need to waste money on clunky USB 3.0 cables that arent compatible with other mobile devices. From Anandtech...

There’s been a lot of talk about the presence of USB 3.0, even though the micro B connector type has been around for considerable time already and in a ton of devices. The Note 3 just has the misfortune of apparently being many people’s first exposure to the connector, whose awkward double lobed shape gives it forwards compatibility with microUSB 2.0. The rightmost region is just the familiar microUSB 2.0 connector, the left contains the pins for SuperSpeed signaling for 3.0. Plug something into the right 2.0 jack and you get 2.0 speed for transfers and charging. 3.0 at present should give you faster transfer rate, and eventually faster charging, but the Note 3 continues to use Samsung’s 2.0 amp charging spec and rate, but more on that later.

Charging is an interesting story on the Note 3, but primarily because of what doesn’t change. The Note 3 continues to use Samsung’s tablet charging specification and charger, which has 2 amps of maximum output. The Note 3 draws 2 amps over a considerable amount of the charging curve, like other Samsung devices (in the linear part of the charge curve). USB 3.0 doesn’t change things up here quite yet with the new supported charge voltages that are coming eventually with the power delivery specification.

The move to USB 3.0 is interesting and could be a big benefit when it comes to getting large files off of the device (the NAND/eMMC isn't quick enough to make USB 3 any faster at putting data on the phone).

http://www.anandtech.com/show/7376/samsung-galaxy-note-3-review



[muzzy996]

Not true. The way Samsung implented USB 3.0 the sole advantage is transferring files from the device more quickly. So no need to waste money on clunky USB 3.0 cables that arent compatible with other mobile devices. From Anandtech...

[/i]

Agree . . I may not have an inline amp meter to verify for sure but based on my own charge rate observations using GSam Battery Monitor Pro I see no noticeable difference between a 2.0 vs stock 3.0 cable using the stock charger.

Those charge ratings quoted by Shadowlea I believe are for the USB specs themselves which may or may not be adhered to when the device is plugged into a computer but don't necessarily translate to using 2.0 vs 3.0 cables on 2 amp chargers.



[BarryH_GEG]

Those charge ratings quoted by Shadowlea I believe are for the USB specs themselves which may or may not be adhered to when the device is plugged into a computer but don't necessarily translate to using 2.0 vs 3.0 cables on 2 amp chargers.

If we have Quick Charge, and I'm not sure we do, it's 1.0. The Note 4 was the first to support adaptive fast charging which Qualcomm introduced in QC 2.0.

From Qualcomm...

In laboratory tests using a 3300mAh battery, a Quick Charge 2.0 enabled device went from 0% to 60% charge in 30 minutes, while a device without Quick Charge 2.0 using a conventional (5 volt, 1 amp) charger achieved just a 12% gain in the same 30 minutes. A device with Quick Charge 1.0 managed a 30% charge in that time period.



[ShadowLea]

Not true. The way Samsung implented USB 3.0 the sole advantage is transferring files from the device more quickly. So no need to waste money on clunky USB 3.0 cables that arent compatible with other mobile devices. From Anandtech...

[/i]

When using the same charger: (Namely the original NotePro charger)
(Ignore the average rate, that's useless given the fact that I just installed the app).

With Original Samsung TabPro USB 2.0 MicroUSB cable:

With Original Samsung NotePro USB 3.0 Cable:

Both cables are the same age, both are official and neither is damaged. Fun fact, the NotePro cable is 1 meter longer, but still charges faster.

I get the exact same results on my Note 3 and my S5.

The NotePro can't be charged through a computer's USB port, by the way. Not without turning the device off completely and waiting three days.



[BarryH_GEG]

You can't charge any faster than the 2A spec Samsung's provided no matter what charger and cable you use. Some non-Samsung cables and chargers may degrade charging but peak is peak. There are two sites I don't question and they're Anandtech and GSMArena. I accept what I quoted as truth. That and I personally see no charging difference using my stock 3.0 Cable and charger and my Note 5's fast charger and cable used in multiple combinations.

BTW, we do have Quick Charge 1.0; it started being included in Snapdragon S3's. It's 30% faster than a 1A charger but Samsung's always supported 2A so I don't know what the actual benefit is to us. 15%?
