Cut lapdock HDMI internal cable

[fantomv50]

HI

I got a Motorola Lapdock for use with my raspberry pi B+2 the new 1gb quad core version. from CEX not knowing that it has the problem
someone has opened it up and cut the hdmi cable. its too small for me to re-solder it so does anyone know of where I can get a replacement from.

has the following information on it

PAD00 Micro HDMI+USB CABLE
DC30100E100 REV:1.0
2011/04/28 MEC 8-2-1


Thanks



[thecjan]

HI

I got a Motorola Lapdock for use with my raspberry pi B+2 the new 1gb quad core version. from CEX not knowing that it has the problem
someone has opened it up and cut the hdmi cable. its too small for me to re-solder it so does anyone know of where I can get a replacement from.

has the following information on it

PAD00 Micro HDMI+USB CABLE
DC30100E100 REV:1.0
2011/04/28 MEC 8-2-1


Thanks

buy this, make it simple.
http://www.ebay.co.uk/itm/Raspberry...ther_Computing_Networking&hash=item2c9373020a



[fantomv50]

Hi

I have all the external cables I need for the job.

It's the internal Hdmi and micro usb cable that connects to the main board and then has the cable to the two micro plugs you find at the back of the Atrix lapdock.


Thanks



[CJE-4D]

Any success?

Hi fantomv50

Did you manage to find a source?

I need a couple myself.



[d3xt3r01]

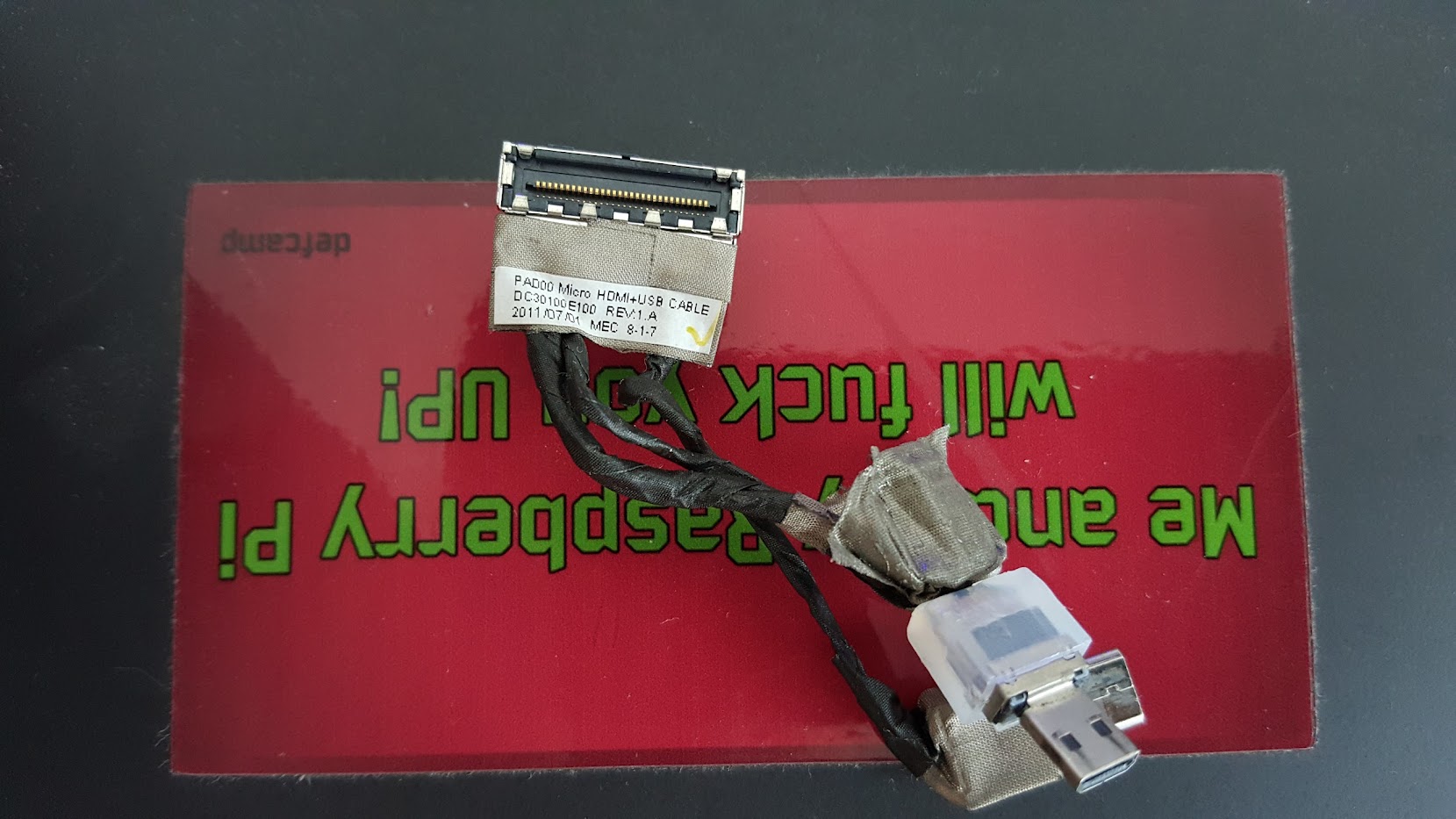

Sorry for reviving old threads .. I'm in a similar jar .. I've broke mine ! Having the cable on/off .. moving it all over the place .. acted live a "lever" and it seems it broke !
Attaced pics !



[eltopo35]

Nothing?



[llenp]

I know... Old thread... But just throwing this in here as a reference!

I converted my lapdock to contain both an hdmi and micro usb port.

This is reallllllly time consuming as you are dealing with small wires- not to mention 20 of them. Look up a pinouts for both a micro-hdmi male, and full-hdmi female. Match them up. Draw it out. (I made the mistake of reversing the wires. Male-to-Female wiring can be confusing)

Pictures of the product show its a bit ugly... but it all works. As a display and with the keyboard/trackpad combo. I have more pictures of the final product.. but I'd have to look for them.



[thecjan]

@llenp, very handy skill.
do you have Rpi2 problem with keyboard, my case is keyboard press delay but touchpad is good.



[llenp]

@llenp, very handy skill.
do you have Rpi2 problem with keyboard, my case is keyboard press delay but touchpad is good.

Thanks for the compliment!
None that I have noticed with the keyboard. If anything, there were times where the trackpad would stop working.



[Vyrus26x]

Could you just make a picture of the wiring ?



[gimsech]

Dc30100e100

Can anyone tell a source, where I can finde this spare Part?

This Guy seems to have found a pinout.
go to armas-spann.de > me. > downloads > atrix_pinout.pdf (48,3 KiB)

Can anyone telle me the name auf the soket on the circuit board?



[gradd]

Can anyone tell a source, where I can finde this spare Part?

This Guy seems to have found a pinout.
go to armas-spann.de > me. > downloads > atrix_pinout.pdf (48,3 KiB)

Can anyone telle me the name auf the soket on the circuit board?

its good to hear someone still using the old atrix, i still got mine though but i have broken micro hdmi port on the phone part. my lapdock is still good i guess theres nothing j could try on, rpi still cost a huge amount in our country, cable conversions were also hard to find (micro hdmi female to hdmi)



[Dittui]

I have the lapdock and the audio dock. I want to connect my sony xperia z1 with the screen broken in it and use. I opened the back and left the cables out of the lapdock. I also opened the desk dock and left the exposed cables to make it easier to connect the Z1. When I plugged the Z1 into the desk dock it charged the normal beter, but the OTG function did not work. Well I would connect the HDMI to the USB input of the desktop dock to pass the Z1 pro lapdock image. Does anyone know why USB port did not work as OTG?



[fuel426]

I converted my lapdock to contain both an hdmi and micro usb port.

This is reallllllly time consuming as you are dealing with small wires- not to mention 20 of them. Look up a pinouts for both a micro-hdmi male, and full-hdmi female. Match them up. Draw it out. (I made the mistake of reversing the wires. Male-to-Female wiring can be confusing)

Pictures of the product show its a bit ugly... but it all works. As a display and with the keyboard/trackpad combo. I have more pictures of the final product.. but I'd have to look for them.

I know this is an old thread, but I busted my usb connection, can you please help me with the pinout???



[d3xt3r01]

And as usual... I'm a little bit late to the party. The pdf isn't there anymore .. I'm wondering if anyone else can share it ?
Also, I'm curious where all the broken screen or broken mobo lapdocks go.. I still can't find any on ebay !
