GUIDE EDL POINTS and TOOL (no fake points)

[Speedo.thc]

Hi , here's how i managed to start edl on my bricked Poco X3
- The true points are hidden by the usb map , and NOT at the place mentionned in many "putaclic" web pages.
- This place make it really harder to connect than in other know devices.
- Here is my solution :

01 remove cover ..

now remove green screws on the top+orange screw in order to remove plastic cover and access mother board.
02 unplug power map (in red) + usb map (in green)

03 now you see test points (in green) and fakes ones (in red)

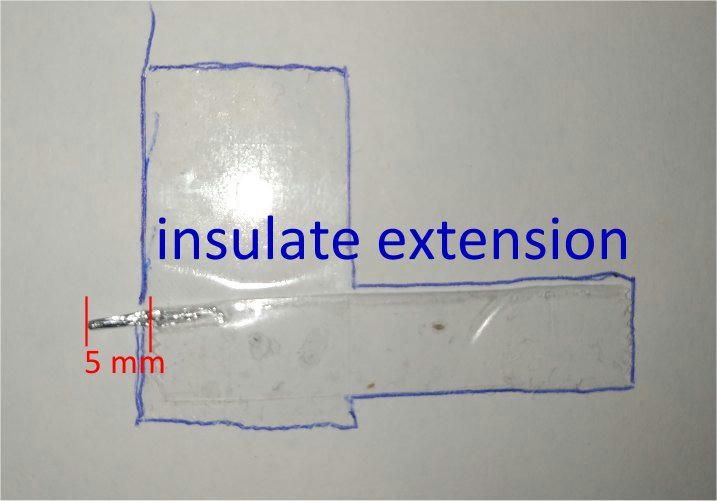

04 make a tool using aluminium or coper paper and adhesive

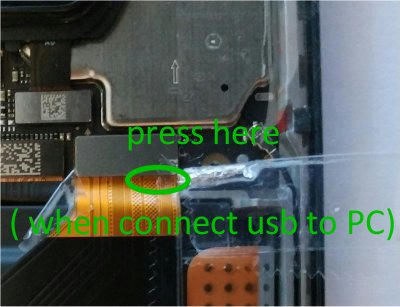

05 place the tool in order to contact points like this :

06 reconnect usb map

you will have to press with your favorite nail to get edl start

Thx and Credits:
@mahajant99 (XDA and telegram) for found the points
Myself for the tool and method without remove mother board



[Xfirstname]

Thanks for sharing, Btw "putaclic" is a very french way to say "clickbait" haha



[Bryceicle1971]

Thanks for sharing, Btw "putaclic" is a very french way to say "clickbait" haha

?



[kudaj316]

Wow this is some scary **** when you bricked your phone. Hope i wont be included with the unlucky ones. How do we prevent from getting hard bricked. Any tips?



[terror_rest45]

Wow this is some scary **** when you bricked your phone. Hope i wont be included with the unlucky ones. How do we prevent from getting hard bricked. Any tips?

For my personal tips, I would avoid flashing custom ROMs and stick with the stock one until at least a stable version of recovery and ROM had been released. I had 4 devices prior to this present Poco X3 and none of them I had hard bricked. Only bootloops.



[__halvar__]

Anybody now about THE edl point for note 9 pro is? I test it from pictures om Google but it didnt work



[Bryceicle1971]

Thank you very much for this helpful guide. I hope I do not need it. Very deceptive of people to publish false EDL points. Thanks for that tip ??



[Ungeskriptet]

I'm curious, can the back panel be easily removed and attached again or is it glued?



[Speedo.thc]

I'm curious, can the back panel be easily removed and attached again or is it glued?

Glue like Poco X2



[vygavedha]

For my personal tips, I would avoid flashing custom ROMs and stick with the stock one until at least a stable version of recovery and ROM had been released. I had 4 devices prior to this present Poco X3 and none of them I had hard bricked. Only bootloops.

Planing to buy this device.
Can u confirm the stable version of recovery and rom for this?
Ps: from India, belive flipkart had only non NFC model



[Castle 1401]

Planing to buy this device.
Can u confirm the stable version of recovery and rom for this?
Ps: from India, belive flipkart had only non NFC model

Not yet, while there are official roms (could be stable). Recovery is a disaster, many bugs and flaw because all of them are still at Alpha version. So i think you gotta wait for another month



[Deses]

OP

So what do you do after that? What did you do to recover the phone? What software? What rom? Please explain more, I'm sure more people will get stuck there...

Like myself.



[Nick0-72]

Don't the old xiaomi edl cable method work anymore??
