[GUIDE] How to unlock your bootloader, install TWRP and gain root access

mac.os.x

Senior Member
Dec 30, 2013
83
13
0
Dayton
Please post your T-mobile results, when you get a chance.
and I will and something to the Index

---------- Post added at 07:03 PM ---------- Previous post was at 06:55 PM ----------

see
Turbo on other US networks, (T-Mobile and AT&T) by gordonzhao 30th November 2015
i will np

---------- Post added at 12:36 AM ---------- Previous post was at 12:07 AM ----------

cant i flash this droid with cm or something and get more LTE options to use metropcs?


sd_shadow

Recognized Contributor
Sep 21, 2011
16,594
7,526
253
South Dakota
goo.gl
i will np

---------- Post added at 12:36 AM ---------- Previous post was at 12:07 AM ----------

cant i flash this droid with cm or something and get more LTE options to use metropcs?
Not likely, it's hardware limited
but it wouldn't hurt to try, and you might like CM13
Just make a backup of stock in Twrp, then you can easily restore stock if you want to

p.s. This is my 12,000th post on XDA


iiWoodstocK

Senior Member
Nov 30, 2015
606
504
0
Verizon legally cannot SIM lock the Droid Turbo (or any other LTE device after 2012) to their network dating back to 2012 as part of their agreement with the FCC when they purchased the 700 mHz Block C LTE spectrum (band 13). That agreement with the FCC requires Verizon's LTE devices to be SIM unlocked. With that said, the Droid Turbo will work on MetroPCS (and any carrier) as long as they allow customers "bring your own device." If MetroPCS requires a device to be certified for use on their network, then the Droid Turbo won't be usable on MetroPCS. For example T-Mobile restricts devices band 12 LTE access to certified devices only because of VoLTE.

Last edited:
  • Like
Reactions: ChazzMatt

Cobra04

Senior Member
Dec 11, 2012
307
124
0
Verizon legally cannot SIM lock the Droid Turbo (or any other LTE device after 2012) to their network dating back to 2012 as part of their agreement with the FCC when they purchased the 700 mHz Block C LTE spectrum (band 13). That agreement with the FCC requires Verizon's LTE devices to be SIM unlocked. With that said, the Droid Turbo will work on MetroPCS (and any carrier) as long as they allow customers "bring your own device." If MetroPCS requires a device to be certified for use on their network, then the Droid Turbo won't be usable on MetroPCS. For example T-Mobile restricts devices band 12 LTE access to certified devices only because of VoLTE.
Too bad the only way to use my prepaid Verizon Moto E LTE with my postpaid SIM is to pay Verizon a bs first month payment. Killed my account for a day before when I tried it.


iiWoodstocK

Senior Member
Nov 30, 2015
606
504
0
Too bad the only way to use my prepaid Verizon Moto E LTE with my postpaid SIM is to pay Verizon a bs first month payment. Killed my account for a day before when I tried it.
I *think* they can legally do that because it's a prepaid device. I believe that FCC stipulation only applies to non prepaid devices. But I'm not entirely sure. But I do know the Droid Turbo is usable on other carriers without any issue.


ChazzMatt

Recognized Contributor
Nov 30, 2010
18,326
14,179
253
Atlanta, Georgia
Please post your T-mobile results, when you get a chance.
and I will and something to the Index

---------- Post added at 07:03 PM ---------- Previous post was at 06:55 PM ----------

see
Turbo on other US networks, (T-Mobile and AT&T) by gordonzhao 30th November 2015
Lots of people have been running the Droid Turbo on T-mobile and AT&T from the very beginning.

I know, because we kept answering the same questions over and over. Everyone would start a new thread just to ask if they could use the Droid Turbo on T-mobile or AT&T. But here's people from October 2014 using T-mobile...

OCTOBER 2014
I am using the turbo on T-mo
Hey,

I purchased the turbo and popped my t-mo sim in and set the APN for T-mo, and I am getting G, 3G and LTE. I dont seem to be getting HSPA. I get LTE most of the time and normal speeds, like 30MBps. I am really happy to have LTE. I am in minnespolis, so I am not sure which band is coming in...
NOVEMBER 2014
I just bought the phone today and swapped in my Tmobile Nano Sim. Its working perfectly with full LTE in Chicago. I had to add the Apn settings under mobike network to get it to work. Whenever I reboot the phone a notification reminds me that i'm not using a verizon sim. Its easily dismissed. I cant be happier, this is the "Nexus" I wanted all along.
(Just like me, he was aghast at the size of the Moto Nexus 6, coming after the 2013 5" LG Nexus 5. For the next Nexus phone in 2014 everyone wanted slightly larger, like 5.2", 5.3" at most, and 1440p for the gen6 Nexus but not 6 inches! So, this 5.2" 1440p AMOLED Moto Quark was the "Nexus 6" we wanted. Had almost all the same specs, and even a bigger battery than the Moto Nexus 6 but in a reasonable size.)

No activation at Verizon. Just pop in your sim and configure the APN correctly to use tmobile, and you're off and running
Tons more.

Those users get LTE bands 2, 4 plus HSPA. They'll get T-mobile and AT&T LTE bands, just not all the LTE bands.

FCC ID IHDT56PK1


  • Droid Turbo XT1254 (and XT1250) has LTE bands 2, 3, 4, 7, 13
  • AT&T has LTE bands 2, 4, 5, 17. (Very little LTE band 5 locations and even then rarely only LTE band 5, so LTE band 5 is not extremely important but I wanted it since I use AT&T.)
  • T-mobile (USA) has LTE bands 2, 4, 12.

Two years ago, LTE band 12 for T-mobile was not that important but now it is.

Here's a YouTube video from November 2014 (soon after the phone was released):

Droid Turbo working on Sprint, AT&T, T-mobile & more
https://www.youtube.com/watch?v=yDs--1vVuBE

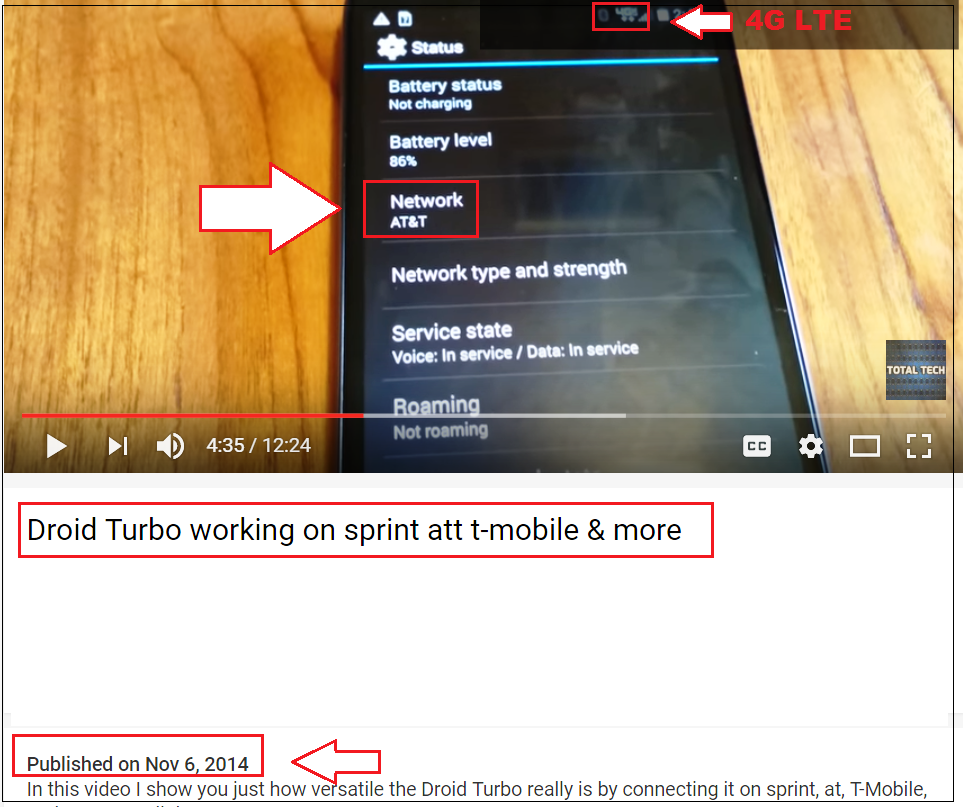

screenshot from that video:


ALSO:
How to Use the Motorola Droid Turbo on Other Carriers (November 2014)
https://www.youtube.com/watch?v=uK5gdPXClUk

How to use the Droid Turbo with any SIM card and GSM network (November 2014)
https://www.youtube.com/watch?v=HFZbJWqNRKs

How to Use the Motorola Droid Turbo on Other Carriers (Video)
November 3, 2014
https://theunlockr.com/2014/11/03/how-to-use-the-motorola-droid-turbo-on-other-carriers-video/

However, in that article above, he's wrong that the Droid Turbo was exclusive to Verizon. The name "Droid" is exclusive to Verizon but the exact same device, with exact same FCC ID and bands was sold by regional U.S. LTE/CDMA carriers under the XT1250 Moto Maxx name. The "Turbo" name was also attached to another Quark, the Moto Turbo XT1225 in India.

NOTHING about the Droid Turbo was "exclusive" to Verizon, except the locked-down bootloader. :rolleyes: But Verizon's PR department did a magnificent job convincing the world otherwise!



---------- Post added at 03:49 AM ---------- Previous post was at 03:43 AM ----------

I *think* they can legally do that because it's a prepaid device. I believe that FCC stipulation only applies to non prepaid devices. But I'm not entirely sure. But I do know the Droid Turbo is usable on other carriers without any issue.
Right. I can show a few dozen posts from T-mobile and AT&T users dating back to October 2014. The only issue is people wish the Droid Turbo XT1254 had more LTE bands for AT&T (LTE band 17 and even LTE band 5) and T-mobile (LTE band 12), which is why I bought the "international" version -- the Moto XT1225 -- which had all the AT&T LTE bands.

Even then Motorola wouldn't initially officially admit the XT1225 had LTE band 5, even though the FCC found it. :rolleyes: Later, when the XT1225 was released in India (same FCC number, therefor the same bands) they admitted LTE band 5 and another HSPA band used by T-mobile (HSPA band IV). Of course by then, users in Canada had confirmed those were already there and I had found them using Qualcomm modem testing software QPST, etc. So, Motorola was only admitting what we already knew -- finally. :rolleyes:

The XT1225 and XT1254/XT1250 all share LTE bands 2, 3, 4, 7.

The XT1225 additionally has LTE band 5 and 17 (more bands used by AT&T).
___________________
FCC ID IHDT56PK2




---------- Post added at 03:55 AM ---------- Previous post was at 03:49 AM ----------

Too bad the only way to use my prepaid Verizon Moto E LTE with my postpaid SIM is to pay Verizon a bs first month payment. Killed my account for a day before when I tried it.
Here's their policy, a part of which I quoted on the previous page.
http://www.verizon.com/about/consumer-safety/device-unlocking-policy

Postpay they do not touch:

We do not lock our 4G LTE devices, and no code is needed to program them for use with another carrier.
Droid Turbo was postpay.

But if curious, for prepay:
We do not lock our 4G devices, other than our 4G Phone-in-the-Box Prepaid phones. In order to partially offset the subsidy we provide to make our 4G Phone-in-the-Box Prepaid phones more affordable to service customers, our 4G Phone-in-a-Box phones may only be used with Verizon Prepaid service for 1 year from original activation date or until payments in the amount specified on the back of the Phone-in-a-Box package are added to the Prepaid account.

Once either of these criteria is satisfied, you can contact us at *611 from your Verizon Wireless Prepaid phone, or (888) 294-6804, and we will provide you with programming instructions so you can unlock your phone. If the user guide for your phone does not provide instructions to access the programming menu, we can help you with that as well.

Last edited:

iiWoodstocK

Senior Member
Nov 30, 2015
606
504
0
For anyone that wants it, here's a link to a FCC document regarding the whole Verizon SIM Unlock thing after purchasing band 13 LTE, it references the exact section/clause that restricts Verizon's ability to SIM lock: https://www.google.com/url?sa=t&sou...ggiMAI&usg=AFQjCNFDz-wHUEbTJ_gTRHMdEPVOFHKzFA just a heads up, the link auto-downloads a PDF from the FCC's site, but I already downloaded it so I'll attach it here since I can't seem to grab the true link from my phone.


Attachments

Last edited:

mac.os.x

Senior Member
Dec 30, 2013
83
13
0
Dayton
Haha, yea exclusively locked bootloader.

Sent from my XT1254 using Tapatalk

---------- Post added at 01:49 AM ---------- Previous post was at 01:48 AM ----------

There should be no reason MetroPCS can't flash the turbo over., Their using T-Mobile network anyway

Sent from my XT1254 using Tapatalk


QiGung

New member
Sep 20, 2016
3
1
0
Having the same issues you were!

I tried that first and foremost. Now I'm wondering what encryption policy ATF is talking about. Sunshine still fails.
Could you forward the advise given to you. All my requirements are met as far a phone compatibility as per the instructions but can't get Sunshine to work. Thanks!!!

---------- Post added at 05:09 PM ---------- Previous post was at 04:51 PM ----------

Thanks to all the little tips and a private message I got it working. Did not realize Wifi had to be on and the tip to "Fastboot reboot-bootloader" was the other step that made everything work. I appreciate everyone here in XDA.

Could you forward the advise given to you. All my requirements are met as far a phone compatibility as per the instructions but can't get Sunshine to work. Thanks!!!


beaups

Senior Recognized Developer
Nov 28, 2007
3,276
7,257
0
Dublin, OH
Could you forward the advise given to you. All my requirements are met as far a phone compatibility as per the instructions but can't get Sunshine to work. Thanks!!!

---------- Post added at 05:09 PM ---------- Previous post was at 04:51 PM ----------




Could you forward the advise given to you. All my requirements are met as far a phone compatibility as per the instructions but can't get Sunshine to work. Thanks!!!
What issue are you having?


mac.os.x

Senior Member
Dec 30, 2013
83
13
0
Dayton
I'm using MetroPCS, right now, on my Droid Turbo. All I had to do was change the serial number on the phone to the new phone and enter it into pc, also rocking 4G LTE, SAME SPEEDS, and evrrthing

Sent from my XT1254 using XDA Labs


beaups

Senior Recognized Developer
Nov 28, 2007
3,276
7,257
0
Dublin, OH
I'm using MetroPCS, right now, on my Droid Turbo. All I had to do was change the serial number on the phone to the new phone and enter it into pc, also rocking 4G LTE, SAME SPEEDS, and evrrthing

Sent from my XT1254 using XDA Labs
What issue are you having with SunShine?

--beaups


mac.os.x

Senior Member
Dec 30, 2013
83
13
0
Dayton
I'm having no issues. My bootloader is unlocked, plus rooted with supersu. Flashed with 49, rolling on MetroPCS now

Sent from my XT1254 using XDA Labs

---------- Post added at 12:05 PM ---------- Previous post was at 12:04 PM ----------

Bout to install Xposed framework next I think. Maybe try a custom ROM.

Sent from my XT1254 using XDA Labs


Claps1775

Senior Member
Aug 15, 2011
427
69
0
Meridian, ID
May we pay sunshine via Amazon gift card.? If yes then how?
It should give you the option to pay with PayPal in the app. Once you select PayPal, it will load to the PayPal site. Sign in and it will show you what your paying for and how much. Then once it confirms you paid. You will automatically go back to sunshine app and then the app will confirm you paid. Once it does, a license will be generated and accepted. Then sunshine will finish the bootloader unlocking. That is it. You can also use there chat option at the sunshine site. They are very helpful. If you have problem, they can look on there server and see what happened with your phone. Also, make sure your wifi is on.

  • Like
Reactions: Nido221
