[GUIDE][UPDATED] How to deodex stock kitkat roms

Search This thread

AndikaTedja

Senior Member
Feb 24, 2013
162
205
Denpasar, Bali
For those doesnt know how to deodex kitkat roms, here is a guide to deodex your rom
This tool is based on kamome tool for Xperia 4.4, so i edit it a little:laugh:

ALWAYS DO A NANDROID BACKUP

Pre-requested :
  1. Java
  2. Rooted phone
  3. Odexed rom
  4. USB Debugging enabled (If you want to pull files from your device)
  5. Custom Recovery (Tested on CWM)

Download :
Non Zipalign :
Kitkat_Deodexer
Mirror 1
Mirror 2
Please dont make another mirrors

With Zipalign
Kitkat_Deodexer_With_Zipalign
Mirror 1
Please dont make another mirrors

Guide :
  1. Extract downloaded tool
  2. Run main.bat
  3. Type 1 to create working folder
  4. Plug in your phone, then type 2 to pull files from your device
    This step can be skipped if you manually copy /system/app, /system/framework, /system/priv-app to /Kitkat_Deodexer/system
  5. Type 3 to start deodexing
  6. Type 4 to zipalign apks (not tested by me)
  7. Type 5 to create flashable zip
    This step also can be skipped if you want to build your own flashable zip by editing updater-script
  8. Done

To install it :
  1. Copy deodex_install.zip to your sdcard
  2. Go to CWM recovery
  3. Flash the zip
  4. Done

Note:
  1. Zipalign tested and worked by @thisisapoorusernamechoice

Credits :
Thanks to @hagurekamome
@RyokoN
@liv3dn8as for adding zipalign

If you dont understand, broken link, errors, please reply ;)

Last edited:

KnifeHead

Senior Member
Nov 22, 2013
179
87
No reply???
Then I am first :laugh:
Thanks for this one gan @AndikaTedja :highfive: , now I can make deodexed rom without bootloop.
Recomended for newbies who want to try to make deodexed custom rom, like me :eek: :cyclops:

Last edited:
  • Like
Reactions: stalker7q

NikosR6

Member
Nov 17, 2013
40
5
Hello!!

Hello hello Bro....can you please check the download link?it does not work to me...or i am doing something wrong?
Special thanks in advance!:laugh:

I am sorry...the link is perfect the mistake was mine!
From usb donggle i couldnt dowloadthe file...please forgive me!

Last edited:

khelwani

Senior Member
Dec 2, 2010
178
74
Thaaaanks...

I've been waiting for this from ages ago

I'll let you know the results

really thanks

Sent from my GT-I9505 using Tapatalk

-------------------------


Working 100% on i9505 4.4.2 stock...

now i'm deodexd ")

Thanks again

Last edited:

AndikaTedja

Senior Member
Feb 24, 2013
162
205
Denpasar, Bali
Hello hello Bro....can you please check the download link?it does not work to me...or i am doing something wrong?
Special thanks in advance!:laugh:

I am sorry...the link is perfect the mistake was mine!
From usb donggle i couldnt dowloadthe file...please forgive me!
Try these links
Mirror 1
Mirror 2
Please dont make another mirror ;)

Thaaaanks...

I've been waiting for this from ages ago

I'll let you know the results

really thanks

Sent from my GT-I9505 using Tapatalk
Okay ;)


androidrouen

Senior Member
Jan 27, 2014
597
232
★ ★ ★ ★ ★ ★
question

your tool is great and works good, but ^^ : i tried to deodex framework of i9500 4.3 stock rom, all fw.jar is ok but services.jar deodex cause bootloop ? why ? can you help me ?
thanks a lot :):laugh:


AndikaTedja

Senior Member
Feb 24, 2013
162
205
Denpasar, Bali
help please . when i do this tutorial my phones stuck in samsung logo. can somebody help me?
Its bootloop, try to restore your nandroid backup (i ve told before)

your tool is great and works good, but ^^ : i tried to deodex framework of i9500 4.3 stock rom, all fw.jar is ok but services.jar deodex cause bootloop ? why ? can you help me ?
thanks a lot :):laugh:
For 4.3 try this guide
http://forum.xda-developers.com/showthread.php?t=2492401

  • Like
Reactions: sharkie405

joseph-

Senior Member
Mar 23, 2014
860
191
Its bootloop, try to restore your nandroid backup (i ve told before)


For 4.3 try this guide
http://forum.xda-developers.com/showthread.php?t=2492401

Someone please send me the Java link please

---------- Post added at 07:01 PM ---------- Previous post was at 06:25 PM ----------

help please . when i do this tutorial my phones stuck in samsung logo. can somebody help me?

I'm having a problem my computer telling me Java not installed but it's installed please help


AndikaTedja

Senior Member
Feb 24, 2013
162
205
Denpasar, Bali
  • Like
Reactions: mitky82

iKustomize

Member
Jun 26, 2013
17
1
hi i used this method followed steps 1-7 and it seem to go well kept saying everything is ok however when i placed the deodex_install.zip on my sd card and tried to run it i just got..

Finding update package...
Opening update package...
Installing update...
Installation aborted.

what could be the problem i am on a Galaxy s4 i9505 running XXUFNB8 stock kitkat rom, Rooted with cwm installed

Last edited:

AndikaTedja

Senior Member
Feb 24, 2013
162
205
Denpasar, Bali
hi i used this method followed steps 1-7 and it seem to go well kept saying everything is ok however when i placed the deodex_install.zip on my sd card and tried to run it i just got..

Finding update package...
Opening update package...
Installing update...
Installation aborted.

what could be the problem i am on a Galaxy s4 i9505 running XXUFNB8 stock kitkat rom, Rooted with cwm installed
Try to reinstall or manually zip system,meta-inf,del_odex.sh (Found in deodex_install.zip)
or try to mount /system manually on cwm
Also remember to do a nandroid backup


Roby DM

New member
May 6, 2014
1
0
surabaya
ask

Guide :

Extract downloaded tool

Run main.bat

Type 1 to create working folder

Plug in your phone, then type 2 to pull files from your device

This step can be skipped if you manually copy /system/app, /system/framework, /system/priv-app to /Kitkat_Deodexer/system

Type 3 to start deodexing

Type 4 to create flashable zip

This step also can be skipped if you want to build your own flashable zip by editing updater-script

Done

i always get a error message.. error : more than one device and emulator

Last edited:

AndikaTedja

Senior Member
Feb 24, 2013
162
205
Denpasar, Bali
Try this

i always get a error message.. error : more than one device and emulator
Okay try this (Remember to turn on usb debugging)
1. hold shift button + right click on cmd folder(in Deodex_Kitkat folder) then click "open command window here"

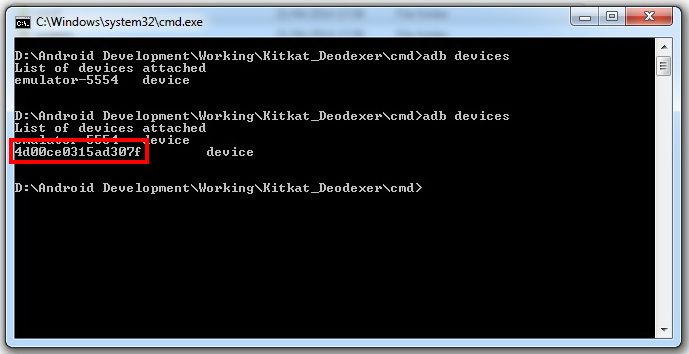

2. Type adb devices (allow on your phone)
3. Remember your device number or whatever is that :p

4. Open main.bat with Notepad++ or Notepad
5. Sarch this line
Code:
cmd\adb pull /system/app system\app
cmd\adb pull /system/priv-app system\priv-app
cmd\adb pull /system/framework system\framework
6. Add
Code:
-s xxxxxxxxxxxxx
after cmd\adb line (for example mine is 4d00ce0315ad307f)
so it would like this
Code:
cmd\adb -s 4d00ce0315ad307f pull /system/app system\app
cmd\adb -s 4d00ce0315ad307f pull /system/priv-app system\priv-app
cmd\adb -s 4d00ce0315ad307f pull /system/framework system\framework
7. Save
8. Run main.bat

Let me know the result


cnn888

Senior Member
Dec 13, 2008
842
107
will it work on exynos s5?
there is no custom rom for g900h variant yet as of now
