[ROM][4.4.2 TouchWiz] Gnabo ROM V8 Ported for Note 8.0 GT-N5100 / GT-N5110

Status
Not open for further replies.

andrei1412

Senior Member
Jul 11, 2014
717
258
0
Bucharest, Romania

// No support & updates for this ROM //


























(V1.6)

(V1.5)


(V1.6)
- phone function (you can't hear cleary the other person)
- Toolbox menu in settings will not be implemented as in this secsettings it's really buggy (unfixable). Use S5 toolbox addon app provided in the ROM to choose which apps you want in toolbox (more than the stock 5 apps). Don't add more than 10 apps because you will get bootloop! In addition, when toolbox is on, install button of .apk files won't work. Disable toolbox to install apks outside playstore.
- Settings --> location --> My places, adding name in name field causes FC on settings.
- Reading mode / Smart pause / Smart scroll


(V1.5)
- Galaxy TAB S TW with Magazine UX
- New Wallpaper Pick-up
- Camera Orientation Bug Fixed (for Samsung Camera Stock Camera use the workaround below.)
(V.1.6)
- Note 5 icons
- Bluetooth fix
- New calculator
- S Studio
- New keyboard
- New weather widget (in style of S6)
- Galaxy S6 Tw_Touch sound
- Screen mirroring is working


Camera Fix (Workaround): Click Here
Root: Click (flash throught recovery)
Bluetooth Fix: Click (flash throught recovery)
Recovery (works for GT-N5110 / GT-N5100 too) Click


You need custom recovery to flash this ROM (rooted device) => lost your warranty
1. Download and copy the ROM to your device (preferably on internal SD)
2. Please Backup (full nandroid!) your device, in case you wanted to revert back the way it was.
3. Reboot into PhilzTouch Recovery
4. Do Wipe Data/Factory Reset in PhilzTouch recovery.
5. Do Wipe Caches in PhilzTouch recovery
6. Go to Advance --> Whipe Dalvik Caches in PhilzTouch recovery
7. Flash the Gnabo ROM for Note 8.0 by Andrei1412 V1.5.zip, when it finishes, reboot your tablet.
8. After your tablet reboots, do not touch anything, just wait at least a few mins, so that ROM settles down.
.

XDA:DevDB Information
[ROM][4.4.2 TouchWiz] Gnabo ROM V8 Ported to Note 8.0 GT-N5100, ROM for the Samsung Galaxy Note 8.0

Contributors
andrei1412, Mikyno, jazzespresso, Civato
ROM OS Version: 4.4.2 KitKat

Version Information
Status: Stable
Created 2015-06-16
Last Updated 2015-07-10

Last edited:

jazzespresso

Elite Member
Jul 24, 2012
2,845
1,647
0
NYC-USA
Gnabo ROM Port For GT-N5110 (WiFi)

Gnabo ROM Port For GT-N5110 (WiFi)
Important!: Since this ROM based on Gnabo ROM, please make sure you read the first post above @andrei1412 OP thread for additional instructions, bug fixes, latest updates, and details.

#############################################################################################
Current Version: V2.2 BE [Base Edition]
Download Link: Gnabo_ROM_Port_GT_N5110_WiFi_V2.2
#############################################################################################


#############################################################################################
New Version: V3.0 SE [Special Edition]
Download Link: .::[ROM] [4.4.2] Gnabo ROM Port For Note 8 GT-N5110 with Tab S Magazine UX [SE]::.
#############################################################################################

Last edited:

andrei1412

Senior Member
Jul 11, 2014
717
258
0
Bucharest, Romania
I have love& hate relationship with Samsung TouchWiz launchers. I like it because most of Samsung apps, widgets plays quite nicely, I hate it when it sluggish, heavy, and not much customization (Finally Samsung realized theming option, so they are bringing themes to newest devices). I tried to make every effort to increase smoothness of these launchers, and faster when moving once screen to another. However, the more apps you have, the more widgets you have, means when you open widgets, it takes a few sec. It is also no brainier that more apps you have, the slowest sluggish tablet gets, so don't blame the launchers nor ROM itself.

The ROM comes with TouchWiz MagazineUX Launcher installed as default, however you will have flexibility and options to use different version of TouchWiz Launchers listed here below in this ROM.
Don't think that all Samsung TouchWiz launcher works out of box; all these TouchWiz Launchers listed here below specially moded/edited/ported by me to work on this ROM. Keep in mind that these TouchWiz launcher DPI dependent, means moded/resized to work 160 DPI as this ROM based on - Do NOT ask me to re-mode it for different DPI.
When you want to switch to different TouchWiz launcher, you need to follow these instruction very carefully as this requires manually copying files..etc.

If you want to use different TouchWiz launcher, first download the one you want to your tablet, and follow these steps below;
First, make sure you have 3rd party launcher (such Nova, Apex) on your system as backup
Go to your tablet's root system\priv-app, and delete current TouchWiz Launcher apk
Copy TouchWiz launcher you want to try, back to system\priv-app and give permission 644.
Reboot your tablet. Once it reboots, you may get TouchWiz stopped error, this is NORMAL behaviour!, so fix that, follow next step;
Go to Settings --> General --> Application Manager--> All --> and locate TouchWiz home, and click "Clear Data and Clear cache"
Reboot your tablet!, now you should be good go.
*Read!: Each time you switch to different TouchWiz launcher, you need to re-do these steps!, plus if you want to come back to Magazine UX launcher, you also need to clear data and cache for MagazineWidget, MagazineHome, and MagazineBriefingWidget apps too*

1).::TouchWiz Magazine UX Launcher (SE version) ::.
As mentioned above, the ROM comes with TouchWiz Magazine UX Launcher (SE version) as default, here I am providing download link (and its dependency apps) and some screenshots how it looks. In case you mess it up, you can download it and copy them back to your tablet.
Download Link.::TouchWiz Magazine UX Launcher (SE version) ::.


2).::SM-TouchWiz Home With Note 3/Note 4 MyMagazine (SE version) ::.
Another very very special SE TouchWiz Home Launcher, trust me you won't find this version anywhere here in XDA! This is different bread than Magazine UX, you may see some small similarity, but that's all, a lot of things different, fully customized, moded, resized, plus several smali files has been modified to make it work. See screenshots below

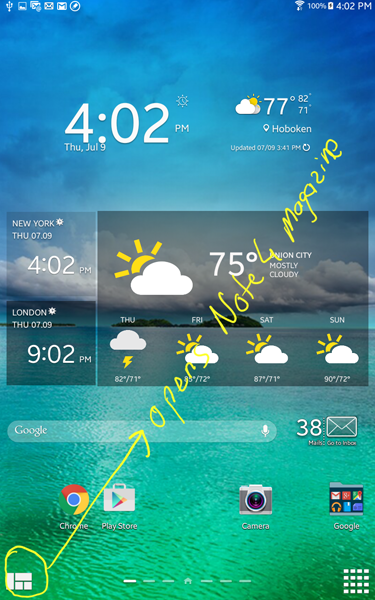

How to use: When you install this version of launcher (remember the install instruction above, right!?), you will see bottom left magazine icon, clicking on it will bring MyMagazine! - this is similar to Note 3 and Note 4, but this one can be rotate either portrait or landscape. In case, Magazine UX is too much and want something simple, this version of launcher is another option to try!
Download Link.::SM-TouchWiz Home With Note 3/Note 4 MyMagazine (SE version) ::.


..... for more TW Launchers please read original POST: Click Here!

Last edited:

jazzespresso

Elite Member
Jul 24, 2012
2,845
1,647
0
NYC-USA
first, good work!
second;
Doesen't work, i think is a lib.
Jazz please help me to solve that anonying bug of rotation, i put that in builid but then touch doesen't work.
i will look into that, but my tablet is GT-N5110 WiFi, so I can't able to fully test your port, but try and see if I can able to help you on rotation issue.
Have you ping @Mikyno and see if he has any idea why rotation does not works? he may throw some idea.


Mikyno

Elite Member
Sep 1, 2012
1,406
1,609
0
Roma
Did you try to check if the sensor works in samsung test ? Just grab the apk from a rom zip (i removed it) , install as system app and dial *#0**#. You can try also to download an app to test it.
Also why 4.4.4 android version? It is port of gnabo or not ?

Inviato dal mio GT-N8000 utilizzando Tapatalk

Last edited:
  • Like
Reactions: farrokh_sha

jazzespresso

Elite Member
Jul 24, 2012
2,845
1,647
0
NYC-USA
Did you try to check if the sensor works in samsung test ? Just grab the apk from a rom zip (i removed it) , install as system app and dial *#0**#. You can try also to download an app to test it. Also which kernel are you using?
Also why 4.4.4 android version? It is port of gnabo or not ?

Inviato dal mio GT-N8000 utilizzando Tapatalk
It is port of your ROM I can tell for sure :), for other questions of yourse above, I will let @andrei1412 reply you.
bringing up Kernel good point here, @andrei1412 uses Boeffla Kernel 2.1, that could be issue....maybe good idea to revert it back samsung stock or Civato's kernel and see if resolves the rotation issue??

  • Like
Reactions: farrokh_sha

Mikyno

Elite Member
Sep 1, 2012
1,406
1,609
0
Roma
It is port of your ROM I can tell for sure :), for other questions of yourse above, I will let @andrei1412 reply you.
bringing up Kernel good point here, @andrei1412 uses Boeffla Kernel 2.1, that could be issue....maybe good idea to revert it back samsung stock or Civato's kernel and see if resolves the rotation issue??
My rom is based on 4.4.2 so is strange that this is a full port of gnabo. if sensor doesn't work at all even with a check app, I would try to change kernel. If this doesn't work then find system files responsible of rotation.


jazzespresso

Elite Member
Jul 24, 2012
2,845
1,647
0
NYC-USA
My rom is based on 4.4.2 so is strange that this is a full port of gnabo. if sensor doesn't work at all even with a check app, I would try to change kernel. If this doesn't work then find system files responsible of rotation.
think like this; GT-N5100 is on 4.4.4, so he is porting your ROM back to GT-N5100. That's why he called 4.4.4, but it is based on your ROM.
I agreed that rotation very well related to kernel.


Mikyno

Elite Member
Sep 1, 2012
1,406
1,609
0
Roma
It is based on Stock Android 4.4.4. + Boeffla Kernel + Gnabo ROM.
I understand now. I thought you've just modified some files of gnabo to make it work on your device but you did not do this. Instead you took files from my rom and implemented in yours :). Then if the base of the rom is the one for your device the issue can be in the kernel or in some incompatibilities of a gnabo file in your rom. PM me what did you swap and change in your rom, if compared with the official build.


andrei1412

Senior Member
Jul 11, 2014
717
258
0
Bucharest, Romania
think like this; GT-N5100 is on 4.4.4, so he is porting your ROM back to GT-N5100. That's why he called 4.4.4, but it is based on your ROM.
I agreed that rotation very well related to kernel.
I changed the Kernel with Civato's, but rotation doesen't work too - even Accelerometer, Geomagnetic Filed, Gravity, Gyroscope.. nothing because i checked with an free app from Google Play.


jazzespresso

Elite Member
Jul 24, 2012
2,845
1,647
0
NYC-USA
I changed the Kernel with Civato's, but rotation doesen't work too - even Accelerometer, Geomagnetic Filed, Gravity, Gyroscope.. nothing because i checked with an free app from Google Play.
go talk to @Mikyno, he is very nice :), in fact, give him download link so he can check it out the files...
if kernel is not the issue, it is must likely some libs file conflict I will assume. Compare Mikyno's system\lib folder to yours - use WinMerge or KDiff3 to do file level/binary level comparison side by side.

Last edited:

andrei1412

Senior Member
Jul 11, 2014
717
258
0
Bucharest, Romania
go talk to @Mikyno, he is very nice :), in fact, give him download link so he can check it out the files...
if kernel is not the issue, it is must likely some libs file conflict I will assume. Compare Mikyno's system\lib folder to yours - use WinMerge or KDiff3 to do file level/binary level comparison side by side.
Replace these libs from stock firmware should fix this bug .


Attachments

andrei1412

Senior Member
Jul 11, 2014
717
258
0
Bucharest, Romania
Last edited:

jazzespresso

Elite Member
Jul 24, 2012
2,845
1,647
0
NYC-USA
EDIT: Yeeeah!!! It's working NOW, i followed this guide ( http://www.androidgadgematic.com/2012/08/how-to-fix-accelerometer-compass-revert.html ) and now it's works! Some aspects and I will upload the new version of the ROM.
ohh that made sense to me now. It is possible that some sensor files being overwritten from Gnabo's files, so you need to find all sensor files in Note 8 Stock ROM and copy back them to your port ROM.
it sounds like sensor files has to be stock ones which specific to device itself in order to work...

let me know how it goes...you almost there..


Attachments

  • Like
Reactions: andrei1412
