[ROM] [Hybrid-X] [Lollipop 5.0 & 5.1.1] [Pre-Rooted+Mods+AEL-Kernel] [8/25/2015]

[tx_dbs_tx]

Sprint Hybrid ROM Series​

LOLLIPOP 5.1.1​

(Android 5.0.1 ROMs are in post #2)​

​

I bring to you a Hybrid Sprint N910PVPU4COG5 ROM. Built from the official Samsung OG5 tar ball. The initial ROM release is available in Odexed and Deodexed. Both are identical beside being odexed or deodexexd. The ROM will self root upon flash and it has init.d/busybox support (to be determined once we have a kernel that supports it). Knox and Sprint Itson has been removed completely. The "Basic" ROM includes the stock pre-rooted OG5 "Beastmode" kernel provided by @freeza

Other than a few small mods and the REMOVAL of Knox, Sprint Itson and several pre-installed "bloat" apps, this ROM is stock in every other way. I spent a lot of time with root and the updater-script to make it flash and pre-root as it should with no hassles. I DO NOT give permission for ANYONE to use this ROM or any future version of it for your own ROM base or any other derivative of my ROM. So don't do it! I will build a stock base ROM soon and it can be used for other peoples' projects. Thank you. Enjoy!

About ROMs:
Hybrid Sprint N910PVPU4COG5 ROM **initial release for Android 5.1.1 software rev. OG5**

• New base ROM built from the official Android 5.1.1 software version N910PVPU4COG5
• Removed Sprint Itson and Knox
• Pre-Rooted and SuperSU is pre-installed
• Odexed version has the stock fully odexed frameworks utilizing ART (Android Runtime)
• Deodexed 100% system and frameworks (best for future mods and Xposed, if and when it gets updated for Android 5.1.1)
• Official OG5 modem and APN's included in the ROM zip
• Updated all system apps (deodexed version only)
• Ability to change view type in settings
• Hotspot enabled by default
• Voice call recording enabled
• Camera shutter sound option enabled
• Disabled usb connect/disconnect screen wake
• Disabled auto-correction patent. (Thanks to "Crapple")
• Call/Message blocking enabled in settings
• Application permissions in settings
• That's about it for this first release... more to come!!!!!

Hybrid-X 3.0 **X-Series is a more heavily modded, tweaked and themed rom**

• All features from Hybrid Sprint N910PVPU4COG5 ROM
• N4_AELKernel_5_1_1_NA_Ed_v2_190815 by: friedrich420
  http://www.echoerom.com/thread/1453-5-1-1-kernel-n910t-n910p-ael-kernel-north-american-ed-v2/
• ViPER4Android with the following built-in enhancements/engines
  MegaBassBeats by: @DeHuMaNiZeD
  AwesomeBeats by: @...Awesome...
  HTK Audio Engine by: @kien_vip
  Super Pure Audio v2.0 by: @Jeeko
  Pon Audio by: @mrchezco1995
  Dolby ATMOS
• Dolby ATMOS by: @worstenbrood
• 5-way reboot w/safe mode
• Flashlight toggle (still needs work. DO NOT attempt to move the toggle or it WILL disappear!)
• Added checkbox to enable/disable brightness slider in notification panel settings
• High-Volume warning disabled
• Disabled ascending ringtone (no more quiet ringtone in first two seconds of incoming calls) removed until fixed
• Added more volume controls to volume popup window
• Added "Advanced utilities" section into settings for the built in utilities below
  Viper4Android audio
  Dolby ATMOS
  Synapse
  Galaxy Tools
  Color Manager
  Bitdefender antivirus
  Adaware
• Long press volume to skip music tracks (coming in the future. not working for 5.1.1. Still working on it)
• Removed Sfinder & Qconnect from notification panel (I will make a flashable zip to add it back)
• Netflix works out of the box. (more information on this can be found in the MODS section post #3)
• Build.prop tweaks

Important Note: Before flashing this ROM. you MUST first have done one of the following: Taken the Lollipop OB7 ota update OR odin flashed the stock N910PVPU1BOB7_N910PSPT1BOB7_SPR rom tar or NEWER Lollipop build such as OE1, OF5 or OFG. If you are still on ANY KK based rom (including any KK AOSP/CM based roms) then you MUST first update to Lollipop by one of the two methods I mentioned above, BEFORE flashing this ROM. If you are still on the first Lollipop 5.0 OB7 rom or a stock/custom KitKat ROM and have NEVER updated to Lollipop before then I highly recommend flashing my custom OB7/OG5 rom tar found HERE. Read that thread for more information.

Flashing Instructions​

***Before beginning the flash/setup process MAKE SURE your battery has at least 50% charge and/or connected to the charger!!!***​

1. Backup anything you don't want to lose off your internal storage to another location.

2. Download the rom using your pc. (downloading with your phone has a much higher risk of file corruption. Not recommended with large files).

3. VERIFY the md5!!! Once the download has finished, compare the AFH md5 using a md5 tool on your pc. (Google is your friend).

4. Put the downloaded rom onto your internal storage or external micro sd card.

Before you go any further you need to odin flash the latest TWRP (recovery). Uncheck the "auto-reboot" option in the Odin tool before flashing TWRP. Once it finishes flashing, press and hold the home button, volume down and power button for several seconds until it reboots then QUICKLY press and hold home, volume UP and the power button and it will reboot to recovery without the need to do a battery pull. Otherwise continue to the next steps below.

5. With phone powered off, reboot into recovery by pressing and holding volume up, power and the home button until you see the samsusung logo then release all buttons.

6. Once in recovery choose the wipe button and do a factory reset three times. Optional but recommended is to do a "Data" wipe. This will wipe all of your internal storage so MAKE SURE you backed up first like i said in step #1 above! Then go to "advanced wipe" and select all of the partitions EXCEPT micro-sd card and internal storage. Internal storage is optional but recommended on first time flashing Lollipop.

7. Choose the "Install" option and select the rom "Hybrid_Sprint_N910PVPU4COG5_Deodexed" from either your internal or external micro-sd card. It will flash the rom and give a confirmation once completed.

8. Press "Reboot" then "reboot system".

9. Initial rom setup will take around 10 minutes and remain on the yellow Sprint Spark screen for much longer than what you are used to. Let the phone setup/optimize for at least 10 minutes and the screen WILL eventually turn off OR show the setup wizard screen once it finishes.

10. When you see the screen turn off, you can proceed with the setup wizard. Once finished with setup wizard, you will be prompted for the "connections optimizer". Quickly set it to what you want and close it. That's it! You're done! Setup your rom as usual. Enjoy![/B]

WARNING: Flashing anything on your device is done at your own risk. There is no way myself or any other developer can guarantee that flashing this ROM or any other file will not brick your device or otherwise cause some other type of damage. This is just a standard warning. I am not responsible for anything that you do to your device. However I do take great time and effort to ensure all of my work is tested and verified good before releasing to the public.

Download​

Sprint_Hybrid_N910PVPU4COG5_Deodexed​

Sprint_Hybrid_N910PVPU4COG5_Odexed​

Sprint_Hybrid-X_3.0_N910PVPU4COG5_Deodexed​

XDA:DevDB Information
Sprint Hybrid X Series - OB7,OG5, ROM for the Sprint Samsung Galaxy Note 4

Contributors
tx_dbs_tx, Goldie, tdunham, daxgirl, freeza, idone, rwilco12, lacoursiere18 , CNexus, majdinj
ROM OS Version: 5.1.x Lollipop
ROM Kernel: Linux 3.10.x
ROM Firmware Required: OG5 for Android 5.1.1
Based On: ALL_SPT_N910PVPU4COG5_N910PSPT4COG5_CL5303209_QB5691107_REV00_user_low_ship_MULTI_CERT.tar.md5

Version Information
Status: Stable
Stable Release Date: 2015-08-27

Created 2014-11-29
Last Updated 2015-08-29



[tx_dbs_tx]

Sprint Hybrid ROM Series​

LOLLIPOP 5.0.1

(Android 5.1.1 ROMs are in post #1 above)​

​

About ROM:

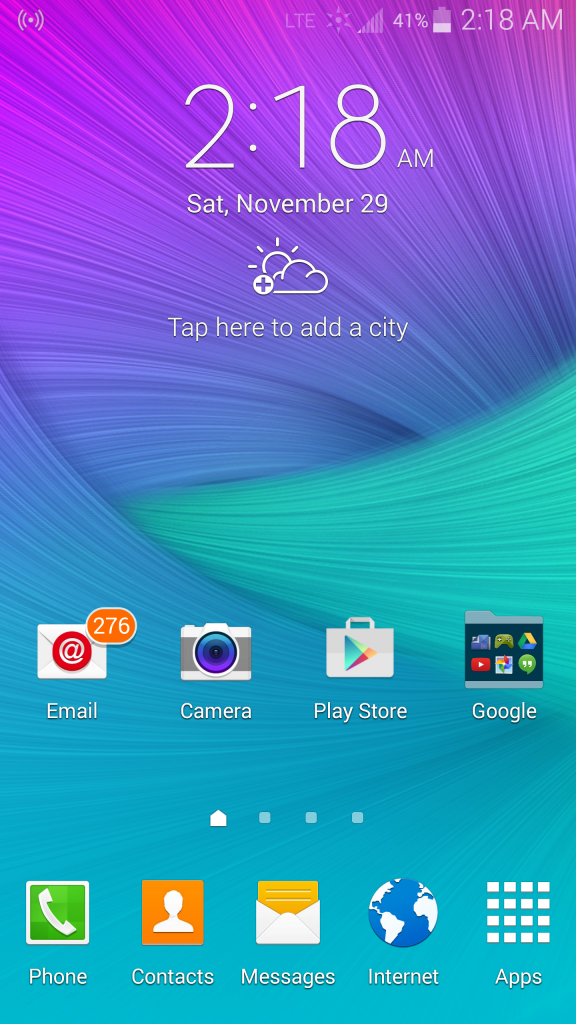

For those of you who want your phone to have that pure stock look, feel and reliability along with the extra features that should have come on the phone straight out of the box..... this ROM is for you. It is completely stock other than disabled knox, root and some added features which will make you Happy Happy Happy!!!

This is the ROM that should have come on your phone when you opened the box. For my "Basic" ROMs the list of extra features will be limited because these are the base ROMs for all future builds which will include more features, mods, theme, etc.. What this means is that these stock "base" ROMs (along with it's few extra features) will remain just as they are and will NOT be changed, themed or modded in any way, unless an issue arises which I will fix. Later on, as time permits, I will release modified/themed versions which will have even more added features, tweaks and mild theming. This is the Hybrid Series ROM, which basically means combining the best mods & features from different devices and developers from XDA and making it better and more enjoyable, while at the same time giving you that reliable stock look and feel which you know so well. This is not an over the top themed rom. There's no developer signatures, names or logos throughout the ROM. I always keep everything looking clean professional and stock with no flamboyant icons, colors etc. This is my personal ROM that I use. It will progress and remain true to these standards. Enjoy!!!


* Software version: N910PVPU1BOB7_N910PSPT1BOB7 LOLLIPOP
( 5.01)
* Rooted.
* Stock kernel
* Knox removed
* Sprint "Itson" removed
* Init-d support
* Deodexed and Odexed versions available
* De-bloated (all Samsung apps left in)
* call/message blocking in settings
* native call recording (record button is available during calls)
*100% everything works
*WiFi Hotspot and USB tether mod
*Advanced Power/ 4-Way Reboot mod (deodexed version only. odexed framework does not support this mod as well as a few other mods)
*Flashlight toggle mod (mod done by me and include my own personal "stock" flashlight icons)
*Additional notification toggles
*more mods coming soon...

***This Basic OB7 X-Series ROM will not be changed or updated. More features will be included in future builds of Hybrid X-Series ROM which can be found below***​

Install Instructions:

If coming from stock NIE or NK2 KitKat rom you MUST first take the Lollipop ota update OR Odin flash the stock Lollipop OB7 ROM tar found HERE
Thanks @-viperboy- for uploading the stock OB7 tar! This is MANDATORY that you do this before flashing any stock or custom lollipop rom via recovery. NO EXCEPTIONS. There are necessary carrier partitions and updated bootloader etc that must be written to your device for Lollipop. BEFORE you Odin the stock OB7 rom tar you MUST reboot into recovery and do a factory reset AND wipe everything (except micro sd-card) several times. If you don't do this you will have left over data that will cause issues once you odin flash OB7. You have been warned. If you ignore these instructions then you are to blame for not following these simple instructions. Once you do these steps and you're on the stock Lollipop OB7 rom you can proceed to the Instructions below

* Flash using the latest version of TWRP custom recovery
1. Download my ROM zip file and copy it to either your internal storage or external micro-sd card.
2. Reboot into custom recovery. Do a factory reset. Then wipe cache, wipe dalvic cache and wipe system. Wipe each three times for good
measure. DO NOT ACCIDENTLY WIPE MICRO SD CARD!!!
3. Choose Install and select the rom zip file
* Lollipop flashes take a few seconds longer than KK roms. Once it finishes, choose reboot system. First boot will take around 15 minutes.
When the screen turns off it's ready for user setup.
* Done!!!
* Enjoy your fully working stock Hybrid Edition ROM!!!

DOWNLOAD​

Hybrid_X-Series_2.0_Base_Odexed​

DOWNLOAD

Hybrid_X-Series_2.0_Base_Deodexed​

***Although donations aren't mandatory, every donation would be GREATLY appreciated***
It lets me know that my work and efforts are appreciated. Use the link below my avatar. Thank you!!!​

================================================
​

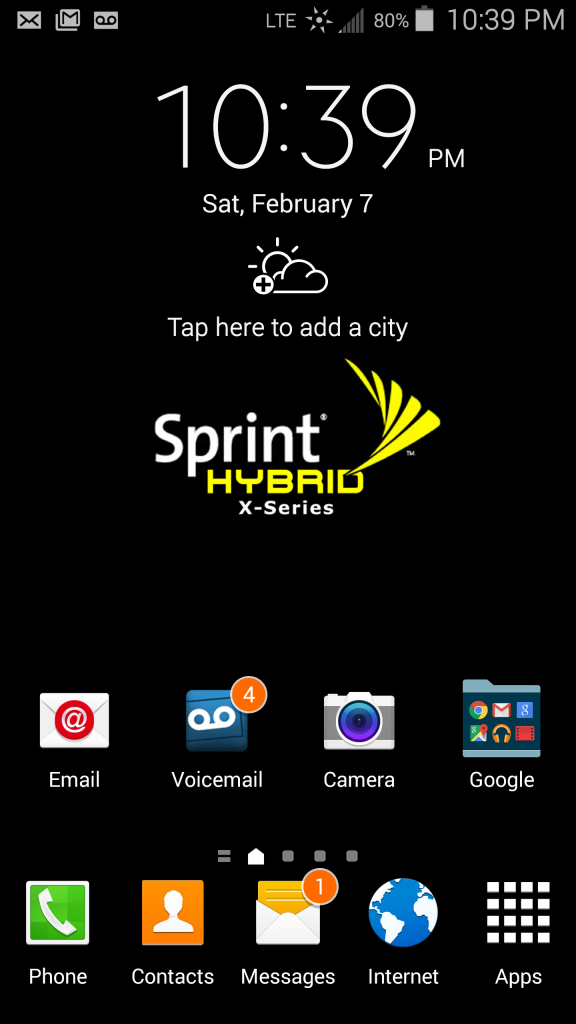

Sprint Hybrid X-Series


​

This is a more custom modded rom. Beginning with version 2.1 you can expect more mods, tweaks etc. Roms in this section will still maintain a "stock" look and feel throughout. Read the changelogs for more details.


Hybrid X-Series 2.1

* Software version: N910PVPU1BOB7_N910PSPT1BOB7 LOLLIPOP
( 5.01)
* Rooted.
* Emotion kernel [nightly-r12-SM-N910P] (More details are on the official kernel thread found HERE)
* Knox removed
* Sprint "Itson" removed
* Init-d support
* Odexed (deodexed version coming soon)
* De-bloated (all Samsung apps left in)
* removed "battery full" notification
* Samsung Launcher Themes
* Viper4Android audio (located in settings/Advanced utilities)
* Synapse ((fine tune your kernel with this awesome utility. located in settings/Advanced utilities)
* disabled USB plug/unplug screen wake
* toggle added for the notification panel brightness slider (to toggle, press the edit option in the notification pull-down)
* added application permissions to settings (located in the Applications section
* call/message blocking in settings
* native call recording (record button is available during calls)
* 100% everything works
* WiFi Hotspot and USB tether mod
* Advanced Power/ 5-Way Reboot mod (deodexed version only. odexed framework does not support this mod as well as a few other mods)
* Flashlight toggle mod (mod done by me and include my own personal "stock" flashlight icons)
* Torch light mod: (enable it in display settings. when screen is off, press and hold the volume up button to turn on... volume down to turn off. TIP: due to full sleep, quickly turn on screen then back off THEN hold volume up to turn on torch light)
* Additional notification toggles
* I may have forgotten something???
* more to come...


Hybrid X-Series 2.2

* Software version: N910PVPU1BOB7_N910PSPT1BOB7 LOLLIPOP
( 5.01)
* Deodexed
* all previous mods & features from 2.1
* Inspired by @saintz Noterized rom. (Took some ideas/features and brought them to this rom because they are great additions to the "stockish" aspect of my rom)
* Emotion kernel r15 (More details are on the official kernel thread found HERE)
* multiple tweaks throughout the rom as well as build prop. (the rom is considerably more responsive and the launcher & animations are tweaked as well)
* re-deodexed several system apps directly from the official tar again using a different deodexer tool (just for testing and identifying possible bad deodexes with some apk's/jar's)
* pre-updated updated all system apps [5/24/2015]
* added dolby audio, color manager, viper audio, synapse and galaxy tools to settings in their own new category. (these apps are also removed from the app drawer for a cleaner look)
* brand new custom icons for dolby, color manager, viper audio, synapse and galaxy tools (all icons created by me to best fit the stock TW Lollipop theme)
* removed high-volume warning (definetely works for audio jack ear buds/headsets, may or may not have any effect over paired bluetooth devices. I have not tested this)
* added several S6 apps including SBrowser, calculator, wallpaper picker, weather widget, my files, keyboard, SHealth, Samsung apps, Smusic, ringtones,ui sounds, notification sounds, etc.
* I may have forgotten something... check it out for yourself!


Hybrid X-Series 2.3

* Software version: N910PVPU1BOB7_N910PSPT1BOB7 LOLLIPOP
( 5.01)
* all previous mods & features from 2.2
* updated to emotion kernel r16 (More details on the official kernel thread found HERE)
* replaced some of the S6 apps with the original note 4 versions.
(S6 weather, S6 Sbrowser, Samsung Music, etc. they had minor issues)
* fixed Advanced utilities apps so they now show up when set to quick settings
* Added V4A/Dolby audio link in Samsung music settings for easy access and futher improves the stock look & feel.
* updated Galaxy tools to 3.1.8
* I may have forgot something... this will be the last release for a while and I wanted it to be stable and bug-free.

DOWNLOADS​

Hybrid_X-Series_2.1_Deodexed​

Hybrid_X-Series_2.2_Deodexed​

Hybrid_X-Series_2.3_Deodexed​



[tx_dbs_tx]

Mods​

• Sprint_N910PVPU4COG5_Modem (flash in recovery only)
• Deodexed-N910PVPU4COG5-Hotspot-Mod (for odexed AND deodexed OG5 roms only!)
• Odexed-Deodexed-N910PVPU4COJ6-Hotspot-Mod (for odexed AND deodexed OJ6 roms only!)
• Odexed-Deodexed-N910PVPS4COK1-Hotspot-Mod (for odexed AND deodexed OK1 roms only!)
• 5-Way Reboot Mod (coming soon)
• N910PVPU4COG5-PrivateMode-Fix
• N910PVPU4COJ6-PrivateMode-Fix
• N910PVPS4COK1-PrivateMode-Fix (This can be flashed on odexed or deodexed OK1 roms)
• Disable/Enable High-Volume Warning Mod (coming soon)
• OG5-Netflix-Fix (for rooted kernels/roms)
• OG5-Undo-Netflix-Fix_EnableGooglePlayMovies
  (restores Google Play Videos and other Streaming services that may have stopped working with Netflix fix)
• More to come...



[tx_dbs_tx]

Themes​

(coming soon for Hybrid X 3.0)​



[Cbass15]

Looks like this might be the first rom I flash on this bad boy.



[LMMT]

Thanks, I'm looking forward to seeing how this evolves.



[chefallahdee]

BOOT animatins

I have been trying to add boot animations to the sprint note 4 any help I will take it ..



[martuseich]

Fingerprint recognition working after NAND restore?

I'm still waiting on my Note 4 to arrive but have been reading through the forums looking for this, a very basic stock ROM to start with 'til I see a custom ROM with the kinks worked out.

One of the ROMs had an issue with Fingerprint recognition not working to unlock the device after a NAND restore. At that point they hadn't figured out if it was something relative to the Chainfire root process or the ROM or some Samsung issue after root. They were able to use the backup password but couldn't get the fingerprint recognition to work anymore at all, even after going back through the setup for it.

Has anybody tested fingerprint recognition after a restore? Any issues with that?

They were having some issues with Xposed as well. Is anyone running Xposed on this ROM yet? Any issues?



[Team DevDigitel]

Glad to see everything is working!!

I took a hiatus for the holiday period and being in retail my time has been primarily on making them $$

Back for the next few weeks till the big Christmas hits and i may go dark for another week!!

Great job on getting things fixed and running right! !



[MasterZen88]

ROM looking good!



[tx_dbs_tx]

I'm still waiting on my Note 4 to arrive but have been reading through the forums looking for this, a very basic stock ROM to start with 'til I see a custom ROM with the kinks worked.out.

One of the ROMs had an issue with Fingerprint recognition not working to unlock the device after a NAND restore. At that point they hadn't figured out if it was something relative to the Chainfire root process or the ROM or some Samsung issue after root. They were able to use the backup password but couldn't get the fingerprint recognition to work anymore at all, even after going back through the setup for it.

Has anybody tested fingerprint recognition after a restore? Any issues with that?

They were having some issues with Xposed as well. Is anyone running Xposed on this ROM yet? Any issues?

You are talking about the actual saved fingerprint continuing to work from your nandroid restore correct? I personally haven't tested a saved fingerprint after a nandroid restore but I would have to assume that IF fingerprint scanner stops recognizing a saved fingerprint after a nandroid restore that it could likely be caused by the encryption getting broken during nandroid backup or restore process. If somebody has time to test and confirm the fingerprint scanner still works after a nandroid restore using the same saved fingerprint prior to the nandroid backup, please report back. Otherwise ill test this as soon as I have time. The fingerprint scanner itself should work just fine after a restore.

Edit: saved fingerprints and scanner work perfectly after a nandroid restore. This is not an issue.



[jacndabx]

fingerprint scanner

I have done a restore after system my system went haywire from trying to change dpi.it recognized my finger print



[Androidwarrior]

Will you port over download booster from a tmobile rom? Also do you have a flashlight toggle?



[tx_dbs_tx]

Will you port over download booster from a tmobile rom? Also do you have a flashlight toggle?

Flashlight toggle and torch light option is already in my plans for future release. Download booster is already in the rom vi toggle. Just long press the toggle and it will take you to download booster. I will try to add it in regular settings menu when I can. I don't need to port anything from a different rom to do this.



[Kul_dood]

Flashlight toggle and torch light option is already in my plans for future release. Download booster is already in the rom vi toggle. Just long press the toggle and it will take you to download booster. I will try to add it in regular settings menu when I can. I don't need to port anything from a different rom to do this.

The download booster can be toggled in the factory ROM as well but it doesn't actually work. The one from T-mobile actually does. Did you import that or are we working with what came shipped on sprint phones? Thanks.

Sent from my SM-N910P using XDA Free mobile app



[tx_dbs_tx]

The download booster can be toggled in the factory ROM as well but it doesn't actually work. The one from T-mobile actually does. Did you import that or are we working with what came shipped on sprint phones? Thanks.

Sent from my SM-N910P using XDA Free mobile app

It is the way it come shipped from Samsung & Sprint. Download booster is not enabled on the Sprint version and there's no toggle for it either. I did add the toggle but not the settings menu entry. I haven't tested it but if it doesn't work then that would explain why it wasn't an available feature out of the box. Why it doesn't work i couldn't say... other than incompatibility issues.



[sml2004]

It is the way it come shipped from Samsung & Sprint. Download booster is not enabled on the Sprint version and there's no toggle for it either. I did add the toggle but not the settings menu entry. I haven't tested it but if it doesn't work then that would explain why it wasn't an available feature out of the box. Why it doesn't work i couldn't say... other than incompatibility issues.

@RevelationOmega is working on it he is the one who got it working on the Sprint S5

---------- Post added at 11:16 PM ---------- Previous post was at 11:15 PM ----------

Nice Rom btw sounds like a lot of extras coming



[llawen]

So very smooth rom. No issues here. [emoji106] [emoji106]



[Cbass15]

So very smooth rom. No issues here. [emoji106] [emoji106]

This ? loving it. ?



[JoeBear1975]

I'm still waiting on my Note 4 to arrive but have been reading through the forums looking for this, a very basic stock ROM to start with 'til I see a custom ROM with the kinks worked.out.

One of the ROMs had an issue with Fingerprint recognition not working to unlock the device after a NAND restore. At that point they hadn't figured out if it was something relative to the Chainfire root process or the ROM or some Samsung issue after root. They were able to use the backup password but couldn't get the fingerprint recognition to work anymore at all, even after going back through the setup for it.

Has anybody tested fingerprint recognition after a restore? Any issues with that?

They were having some issues with Xposed as well. Is anyone running Xposed on this ROM yet? Any issues?

Sounds like a post I made & I still haven't been able to get fingerprint scanner to work. I am currently running Semper Fi ROM, which is nice & smooth, but I'm downloading this right now to give it a try.

Sent from my SM-N910P
