[ROM][JB] AOKP 4.1.2 UnOfcl Legend SFMT Zero2 (4 Styles) (20130715)

[SugarFreeMilkTea]

Preface:

I'm surprising and happy to see JB port to Legend here.
Legend is my 1st Android phone, I like it very much even I'm not using it now.
I simply port a AOKP rom to Legend for fun. And now I want to share fun with you guys.

Features:

• Based on Zeubea's CM10 Unofficial Beta1
• AOKP features merged
• Build-in App/Data to SD-EXT script -----*1
  (Script only continue if mmcblk0p2 exists)
• Build-in Swap Partition script -----*2
  (Script only continue if mmcblk0p3 exists)
• Build-in V6Superchager -----*3
• AIO tweaks included
  (You don't need to do anything, just enjoy using the phone)
• 64mb zram as default + swap partition
• Build-in AC!D Audio Engine v5 with Noozxoide EIZO-rewire PRO
• Removed some bloatwares & useless libs
  (You can flash these back if you need)
• Xperia Keyboard with gesture input ported
  (You can revert to LatinIME by flashing the additional packs)
• Miui Camera ported with QuickPic pre-installed
  (You can revert to Gallery2 by flashing the additional packs)
• Apex Launcher as default which located in /data/app
  (You can revert to Trebuchet Launcher by flashing the additional packs.
  For other launchers, simply download from Play Store and uninstall Apex as normal app)
• Google Play Store 4.1.10 included
• Used Sammy font pack to free more system space
• koush's Superuser included (Open source)

-----*1... App/Data script came from AMARULLZ (the BEST a2sd script I think) and modified by me to make it works in JB.
-----------It will run automatically if the 2nd partition of SD card is created and in EXT3/4 format.
-----------The script will keep system app data and dalvik cache in internal memory.
-----------System apk, user apk and user app data will move to sd-ext.

-----*2... Swap Partition script will run automatically if the 3rd partition of SD card is created and should be in linux swap format.

-----*3... Supercharged services.jar and included V6Supercharger script, Engine Flush enabled (Detail every 2 hours).
-----------All done, you don't need to do anything about it.

Issues:

• Same as zeubea's CM10, you need to change "keep Wifi on during sleep" from "Never" to "Always".
  (Or use some wifi manage apps like Better Wifi On/Off)
• USB/Wifi Tether (Native wifi work on adhoc mode)
  (You can try TrevE's WifiTether MOD)

Preparation:

• Unlocked or S-OFF Legend phone
• Format SD card into 3 partitions (fat32 / ext4 / linux swap)
  (Easy to do it via MiniTool Partition Wizard, 128~256mb is recommended for linux swap partition)
• Copy AOKP-4.1.2-Unofficial-Legend-SFMT-rXX-signed.zip and additional packs to SD card

Installation:

• Full wipe
• Flash AOKP-4.1.2-Unofficial-Legend-SFMT-rXX-signed.zip
• Flash Additional Packs (Optional, you MUST flash them before rebooting system) -----*4
• Flash CrossBreeder Mod (Optional, but it's the ONLY recommended Mod for this rom)
• Reboot system and be patient (It may take 5-10mins to activate the ad2sd script)
• Have a cup of milk tea (sugar free? or me? )
• After 1st boot, wait 1~2mins then reboot again for fully working of ad2sd script
• After 2nd boot, finish the SetupWizard and go to System Settings
  => Sound => Volumes => Untick Link volumes and adjust all bars once to activate all sounds
  => Back to Sound panel and choose Noozxoide in Music effects
• All done and see the LEGEND continues......

-----*4...
SFMT-Trebuchet-signed.zip will delete Apex launcher
SFMT-Gallery2-signed.zip will delete Miui Camera & QuickPic
SFMT-LatinIME-signed.zip will delete Xperia Keyboard
SFMT-Pre-Installer.zip is for you to install app before 1st boot
(Open it with 7-Zip or WinRAR, copy apks to /data/app then flash it like the additional packs)

Tip:

• It may not have enough space in system partition if you flash all additional packs. So make your choices.
• Please be patient after every boot.
• If you want to wipe dalvik-cache, type the following commands in terminal:


  su
  sclean

• If you can't finish the installation of Crossbreeder Mod, remove battery and put it back. Then boot to recovery and flash Crossbreeder zip again.
  (This issue may occur in all devices randomly, not only our Legend.)

.

Credits:

• CyanogenMod
• AOKP
• zeubea (Ported CM10 for Legend)
• AMARULLZ (Original Data To SD-EXT Mod)
• zeppelinrox (V6Supercharger)
• AC!D Team
• koush's Superuser

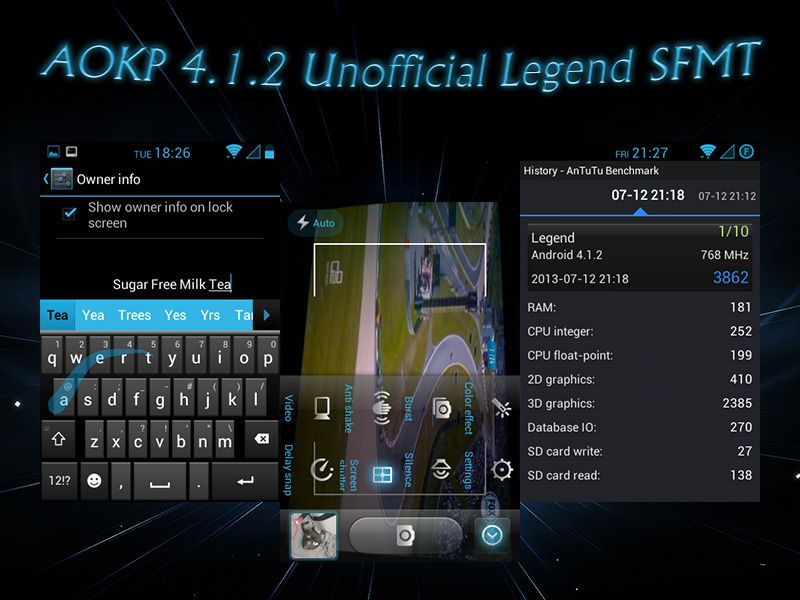

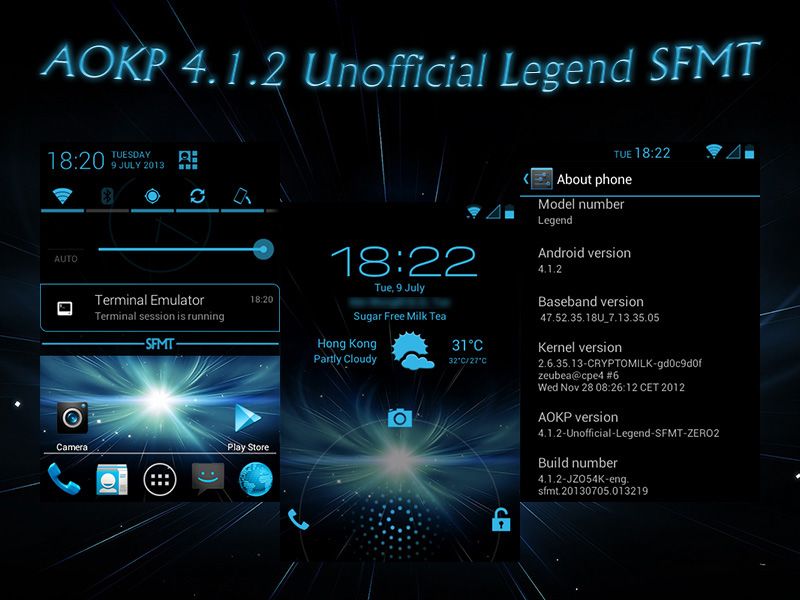

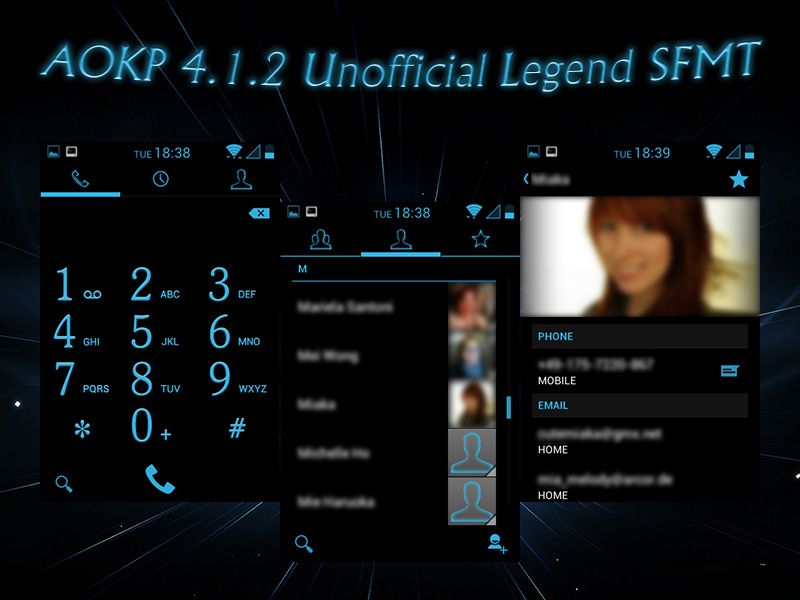

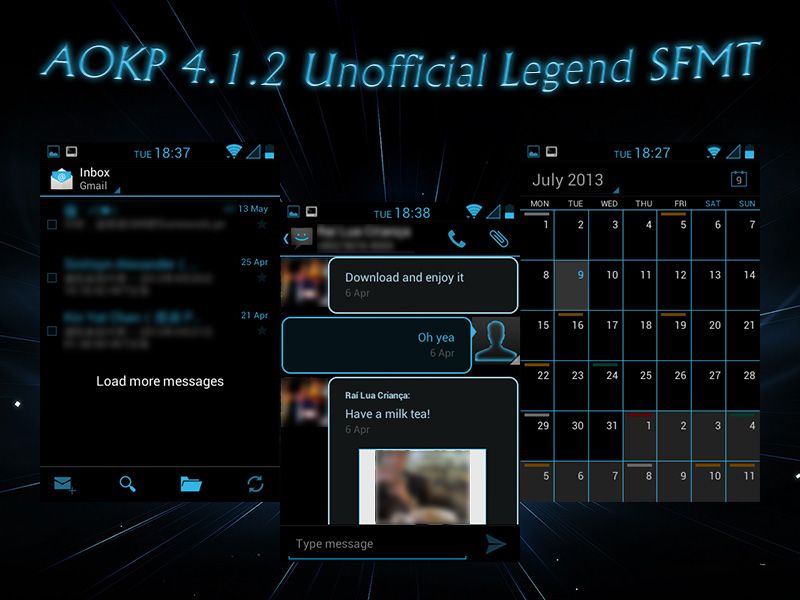

Screenshots:

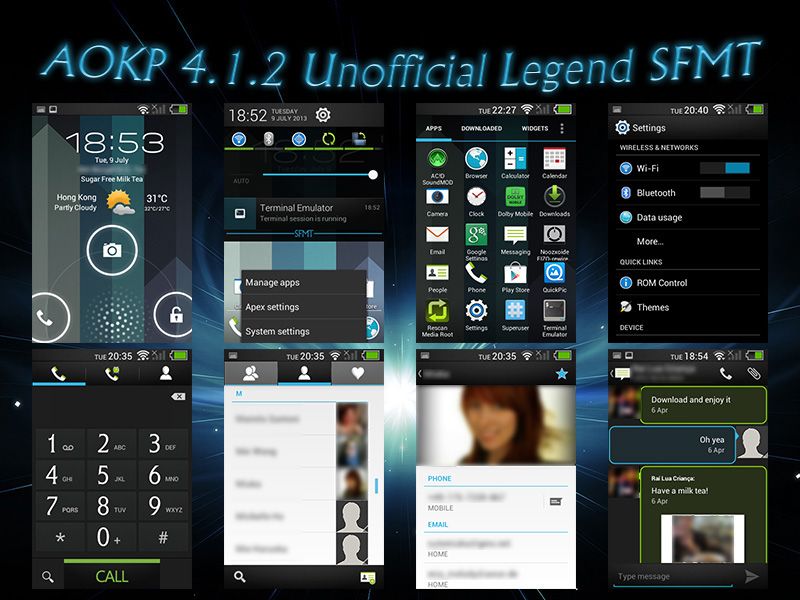

Sense:

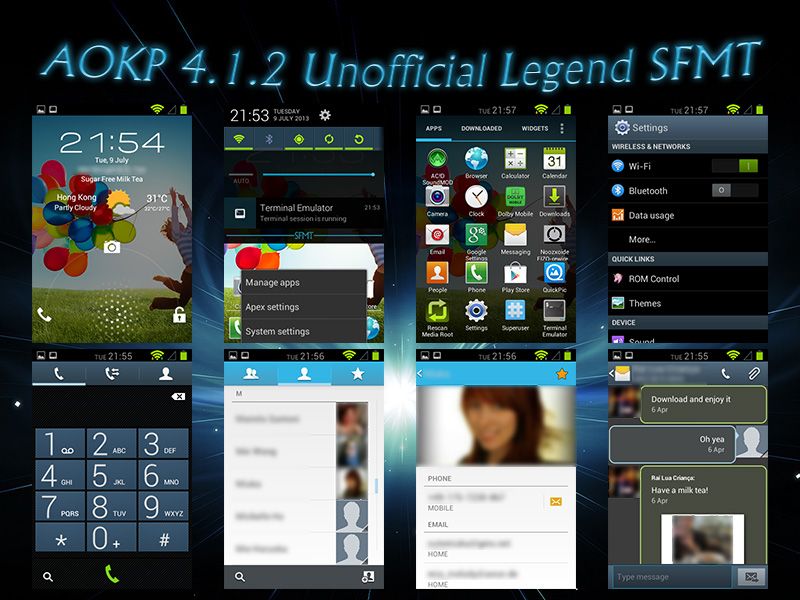

TouchWiz:

Xperia:

Download:
Box
MediaFire

MD5:
AOKP-4.1.2-UnOfcl-Legend-SFMT-Z2-HB-signed.zip
6c37490b756f205bbedf023206921c1c

AOKP-4.1.2-UnOfcl-Legend-SFMT-Z2-Se-signed.zip
d31d6f5437a0b4da22063cbc19524a7c

AOKP-4.1.2-UnOfcl-Legend-SFMT-Z2-TW-signed.zip
732566e5f40012d0d5b00babd282850b

AOKP-4.1.2-UnOfcl-Legend-SFMT-Z2-Xp-signed.zip
ae48136a8fd6ca74d2323b2b002384bb

AOKP-4.1.2-Unofficial-Legend-SFMT-ZERO-signed.zip
7c7c962e2c8b78fa753094870a91f430

AOKP-4.1.2-Unofficial-Legend-SFMT-r04-signed.zip
53ed4861a50cc0346516842ddb25b6bd

AOKP-4.1.2-Unofficial-Legend-SFMT-r03-signed.zip
1e6a04740bfd70d694c72f839ec8c38a

AOKP-4.1.2-Unofficial-Legend-SFMT-r02-signed.zip
5629c1a863116a1cdc71814c0fd621c3

AOKP-4.1.2-Unofficial-Legend-SFMT-r01-signed.zip
c17bc685a2e9ce0cc8834d7dfe938e48

AOKP-4.1.2-Unofficial-Legend-SFMT-signed.zip
235028b7ae8577a53f7ea3378d2d7e9c

Changelog:

20130715 - ZERO2:

• Added 3 more styles (HTC Sense, Samsung TouchWiz, Sony Xperia)
  [*]Reworked Z.E.R.O. System scripts
  [*]Redo V6 Supercharger with the latest version (Repatched services.jar also)
  [*]Optimized layouts of SystemUI
  [*]Moved Noozxoide to /system/app/
  [*]Google Play Store updated to 4.1.10
  [*]Apex Launcher updated to 2.0.3

20130525 - ZERO:

• Default scheduler set to noop (init.d script)
  [*]Added Z.E.R.O. System from Wing Gundam (Just kidding! Added a system boosting script in init.d)
  [*]Email moved to additional pack
  [*]Center aligned lockscreen (clock, calendar...)
  [*]Changed some framework, system apps' UI (A bit)
  [*]Re-themed the dark skin of Xperia Keyboard
  [*]Removed shadow effects of weather icons
  [*]Updated Chinese translation (Traditional / Simplified)
  [*]Optimized all PNG files in framework & system apps
  [*]Added ThemeManager.apk
  [*]Removed ES File Explorer & Better Wifi On/Off (You can download from Play Store)
  [*]Google Play Store updated to 4.1.6
  [*]Apex Launcher updated to 2.0.2
  [*]Additional Packs:

  • Uploaded all packs for ZERO
  • Added Email pack
  [*]Remark:
  CrossBreeder Mod Updated

20130509 - r04:

• New screenshots for r04
  [*]Fixed buttons' backlight issue
  [*]CPU freq set to 200-768MHz as default (init.d script)
  [*]CPU governor set to SmartassV2 as default (init.d script)
  [*]Some UI layouts fixed (Framework / System Apps)
  [*]Sharpened status bar icon (Battery / Wifi / Signal)
  [*]Semi-transaparency for notification rows (Just a bit)
  [*]Re-themed some apps
  [*]All popup dialogs themed to holo dark
  [*]Weather icons optimized
  [*]Added Chinese (Traditional / Simplified) support for some system apps
  [*]Google Play Store updated to 4.0.27
  [*]Superuser updated to 1.0.1.8
  [*]ES File Explorer updated to 3.0.2
  [*]Additional Packs:

  • Re-Uploaded all packs for r04
  • Removed GTalk

20130426 - r03:

• Re-worked, re-builded, re-signed the whole ROM
  [*]Finally solved ROMControl Weather api problem (Lockscreen weather should work now)
  [*]Fully optimized all system apps for MDPI devices (Removed other dpi resources)
  [*]System optimized (Again...)
  [*]Themed all system apps
  [*]Re-themed Phone.apk (not fully themed in r02)
  [*]Fixed wifi/signal icons' moving issue
  [*]90% alpha level(Transparency) for notification, popup menu/dialog background
  [*]New weather icons
  [*]Google Play Store updated to 4.0.26
  [*]ES File Explorer updated to 3.0.1
  [*]Added Traditional Chinese support for ROMControl, Apollo, MiuiMusic, CM File Manager
  [*]Additional Packs:

  • Optimized & themed all apps
  • Added AC!D Audio Engine Remover (Revert to CM DSPManager)
  • Added Miui Music Player
  • Added Noozy Music Player
  • Updated CM File Manager from 1.0.0 to 1.0.1
  • Reverted LatinIME from 4.2 to 4.1.2
  • Patched Sound Recorder (Visible in apps drawer)

20130419 - r02:

• Re-Patched service.jar
  [*]Minfree level optimized
  [*]Lots of minor bugs fixed
  [*]System optimized...
  [*]Lots of useless sources in system apps removed
  [*]Phone.apk: Added Vibrate on answer, Vibrate every 45 seconds, Vibrate on hangup in the Advanced Settings
  [*]Google Play Store updated to 4.0.25
  [*]ES File Explorer 3 updated to 20130418 official release
  [*]Themed framework.res.apk & some system apps (Holo Dark #33b5e5)
  [*]Removed alphaBlue theme

20130408 - r01:

• IUpdated some libs & jars
  [*]Swappiness changed from 40 to 50
  [*]Holo themed lockscreen icons
  [*]Fixed Arabic fonts issue
  [*]Switched to koush's Superuser (Open Source)
  [*]Pre-installed ES File Explorer 3 (New version for testing)
  [*]Pre-installed Better Wifi On/Off (Alt method to solve wifi issue)
  [*]Rescan Media Root moved to system/app
  [*]Additional Packs:

  • Added Audio Installer
  • Re-added Pre-Installer

20130406:

• Initial release

Buy me a cup of Milk Tea :



[SugarFreeMilkTea]

Project finalized @ 25th May 2013



[dgupta]

Incredible work man.. :thumbup:

Sd card not mount after flash.. That's the only problem i see. Don't know what i have done wrong
Plz help. Thanks..
Sent from my Legend using xda app-developers app



[jazib360]

Your rom is running very smooth on my legend. Great work :thumbup:

Sent from my Legend using xda app-developers app



[dgupta]

Your rom is running very smooth on my legend. Great work :thumbup:

Sent from my Legend using xda app-developers app

Are able to access yr sd card jazi? I am not. Rest phone is working amazing.
Any idea how to mount sd card?
Sent from my Legend using xda app-developers app



[jazib360]

Are able to access yr sd card jazi? I am not. Rest phone is working amazing.
Any idea how to mount sd card?
Sent from my Legend using xda app-developers app

Sd card is mounting for me. Try to reflash the rom or format your sd card and create new ext3 partition.

Sent from my Legend using xda app-developers app



[dgupta]

Tried formatting sdcard. Din not work.
It eats battery too fast. Will reflash the rom if battery consumption will be reduced.
Switching back to jazi's blackbean.

Sent from my Legend using xda app-developers app



[SugarFreeMilkTea]

Tried formatting sdcard. Din not work.
It eats battery too fast. Will reflash the rom if battery consumption will be reduced.
Switching back to jazi's blackbean.

Sent from my Legend using xda app-developers app

Try SD Formatter to format sdcard correctly, then do partition with MiniTool Partition Wizard.



[ngotrieu163]

On my legend, 3g is very very very slowly..always apear "e" don't "3g"
Can somebody help me
Sorry 4bad english

Sent from my Legend using xda app-developers app



[Asovse1]

E is not 3G. E is EDGE.
EDGE is 2G.

EDGE is very, very, very, very, very slow. I've noticed in Canada that Legend 3G is ~7mbps download and ~3mbps upload. In Vietnam, I noticed that EDGE is around ~0.06mbps download on a very good day (still great for downloading text, maps, the occasional app), and ~0.01mbps upload.

Where are you? Where did you buy your Legend? What carrier are you on?
If you bought your Legend in North America, and you're using it in Asia/Europe, or the reverse circumstance is true, then unfortunately the HTC Legend isn't compatible for 3G between the continents mentioned.

If this isn't the case, perhaps you're in an area where 3G coverage is spotty or non-existent. Try enjoying 3G in a city or other urban area.

Your goal is for the status bar to appear "H" or "3G". "E" or "G" (as in GPRS) is not at all favourable.



[ngotrieu163]

I'm from vietnammese..
Legend was bought at canada..
sim with 3g on sony arc is very fast
i think i bought legend at canada but use at vietnammese then 3g is not support
can u help me
sorry 4bad english

Sent from my Legend using xda app-developers app



[Asovse1]

Hey! I'm Vietnamese-Canadian and I bought my Legend in Canada!
But here's the problem, you can only run the phone's 3G frequencies in Canada and the United States. All newer phones starting with HTC Sensation could go beyond this limit, and could work worldwide (with the obvious exceptions being the inability to run on CDMA and AWS). Canada's HTC Legend uses frequencies 850 and 1900. Viettel/Vinaphone/Mobiphone and ALL OTHER CARRIERS in Europe and Asia use 900/1800/2100. Since the 1800 is common and shared, you only get EDGE 2G, and voice calling, and text messages.

1) Return your phone, get a refund if you can

or

2) Sell your phone, buy a newer one. Be sure to consult the list of frequencies

or

3) I searched for MiFi in Vietnam when I was visiting in 2011, and used http://usb3gvn.com/ to find a MiFi hotspot. Carry that around in your back pocket like a wireless router and you have 3G whereever you go, your Legend will simply use the less power consuming wireless radio. Also, if you buy a SIM card with
"khyuen mai" which sometimes includes 4-35 GB of free 3G data per month, something Canadians can only dream of from a wireless company. Also, if you've noticed, the 3G network isn't as congested in Vietnam as anywhere else in the world, so you'll likely get maximum speeds like I did. This is the best option to consider.


EDIT: If you want, the address of the store I went to: Số 433/10 Hai Bà Trưng, Phường 8, Quận 3, Hồ Chí Minh City, Vietnam



[ngotrieu163]

Hey! I'm Vietnamese-Canadian and I bought my Legend in Canada!
But here's the problem, you can only run the phone's 3G frequencies in Canada and the United States. All newer phones starting with HTC Sensation could go beyond this limit, and could work worldwide (with the obvious exceptions being the inability to run on CDMA and AWS). Canada's HTC Legend uses frequencies 850 and 1900. Viettel/Vinaphone/Mobiphone and ALL OTHER CARRIERS in Europe and Asia use 900/1800/2100. Since the 1800 is common and shared, you only get EDGE 2G, and voice calling, and text messages.

1) Return your phone, get a refund if you can

or

2) Sell your phone, buy a newer one. Be sure to consult the list of frequencies

or

3) I searched for MiFi in Vietnam when I was visiting in 2011, and used http://usb3gvn.com/ to find a MiFi hotspot. Carry that around in your back pocket like a wireless router and you have 3G whereever you go, your Legend will simply use the less power consuming wireless radio. Also, if you buy a SIM card with
"khyuen mai" which sometimes includes 4-35 GB of free 3G data per month, something Canadians can only dream of from a wireless company. Also, if you've noticed, the 3G network isn't as congested in Vietnam as anywhere else in the world, so you'll likely get maximum speeds like I did. This is the best option to consider.


EDIT: If you want, the address of the store I went to: Số 433/10 Hai Bà Trưng, Phường 8, Quận 3, Hồ Chí Minh City, Vietnam

thanks you very much
i understand :good::good:



[Ultimo125]

Sd card not mount after flash.. That's the only problem i see. Don't know what i have done wrong

Idem same problem for me too
I tried two SD

After the partition with MiniTool
error E:can't mount /SDcard/



[ranger4740]

Last time I used mini tools the default setting was to create a logical partition, which I didn't initially notice hence it wouldn't work till I checked it and discovered the error, re did it as a primary partition and all was well.

Sent from my HTC Desire HD using xda app-developers app



[Ultimo125]

worked

Last time I used mini tools the default setting was to create a logical partition, which I didn't initially notice hence it wouldn't work till I checked it and discovered the error, re did it as a primary partition and all was well.

Thanks it worked



[OdlG26]

Hi there,

I installed this ROM onmy Legend, but I have serious problems: The flash (CWM 5.0: factory reset, ROM, CrossBreederMod) is successful, but either the phone stucks in the bootloop or the phone is crashing while or shortly after configuration. Restarting the hone after that leads to the bootloop, too.

Do you have any suggestions? I'm looknig forward to your reply.

OdlG



[Ultimo125]

Hi there,

I installed this ROM onmy Legend, but I have serious problems: The flash (CWM 5.0: factory reset, ROM, CrossBreederMod) is successful, but either the phone stucks in the bootloop or the phone is crashing while or shortly after configuration. Restarting the hone after that leads to the bootloop, too.

QUOTE ...

Idem same problem for me too
I tried twice with the same result
first start, everything ok
second start with the first configuration, everything ok
third start ... bootloop on the splash screen
... full wipe and reboot ... bootloop after startup applications

may be a problem with the SD?
bad partition or SD low quality??



[OdlG26]

So you suggest to check the sd card? well, I flashed several android devices with this sd card. I have formatted my 2gb sd carrd (class 4) to 1GB FAT32, 600MB EXT4, 256MB LinuxSwap.



[Ultimo125]

So you suggest to check the sd card? well, I flashed several android devices with this sd card. I have formatted my 2gb sd carrd (class 4) to 1GB FAT32, 600MB EXT4, 256MB LinuxSwap.

I am in the same condition, I have the same problems

first start, everything ok
second start with the first configuration, everything ok
third start ... bootloop on the splash screen
... full wipe and reboot ... bootloop after startup applications

on the issue of SD mine was just a personal doub


I ask for help from someone more experienced
