[TW][T800/T805][5.0.2+] yTab 2.6d2a TabletUI+/Theme Store & [5.1.1][PORT] 2.7a2 29/4

Sidebar
Y

ykkfive

Inactive Recognized Developer
Jul 25, 2010
2,818
2,826
0
ykkfive.blogspot.com
Nov 10, 2014 at 9:56 PM
Hi all

I would like to share my 2nd public sammy kernel+rom, yTab, to you guys. Hope you will like it. Enjoy!








NOTE:

  • for SM-T800 and SM-T805 tab S 10.5 wifi/lte ONLY (only SM-T800 is supported for kitkat)
    - this yTab ROM/kernel is currently built for SM-T800/SM-T805 only (exynos5420)
    - other similar variants like SM-T800x, SM-T800y, SM-T800z etc are not officially supported
    - those come with Snapdragon processors are NOT supported too

  • warranty void
    - installing this ROM/Kernel can/may void your tablet's warranty, and resulted in Knox Warranty Void 0x1

  • overclock warning
    - overclocking can reduce hardware life expectancy and can damage the hardware or tablet
    - overclocking or under-volting results differ from device to device, and there is no such thing as best values for OC or UV



WHAT NOT TO EXPECT:

  • frequent updates
  • fancy installations
  • bugs free experiences
  • problems will be solved quickly/ultimately
  • individual/feature requests (i will listen, but no promise)



KERNEL FEATURES:

  • compiled with UBER Linaro 4.10 +Graphite
  • default stock kernel settings (at the moment for version 2.1)



ROM FEATURES:

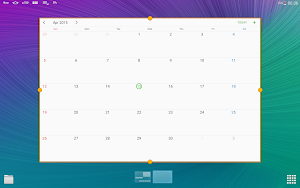

  • swipe to resize window from top left/right

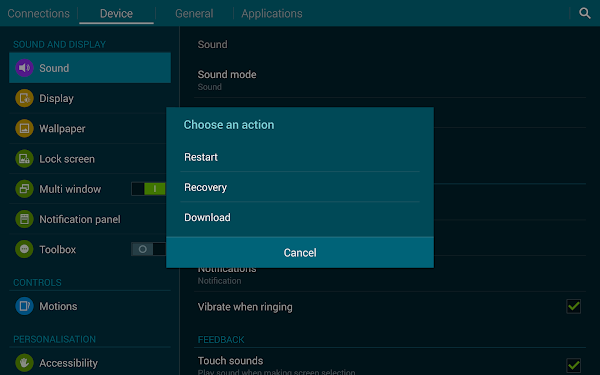

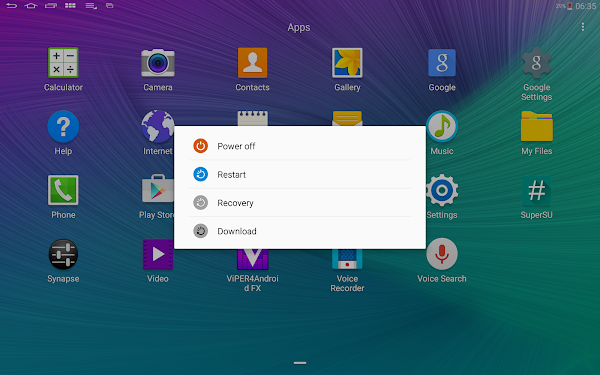

  • new simple restart option menu with custom settings
  • tabletUI+ (status bar with nav buttons just like tablet mode before on tablets)
  • preloaded with ViPER Audio Effect
  • custom boot animation support
  • enhanced UI speed, smoothness and responsiveness
  • dvfs disabled (cpu only)

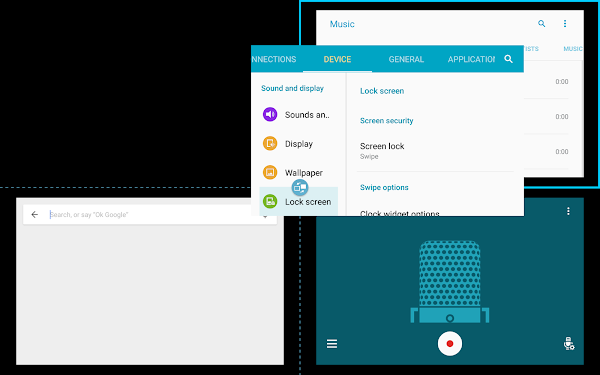

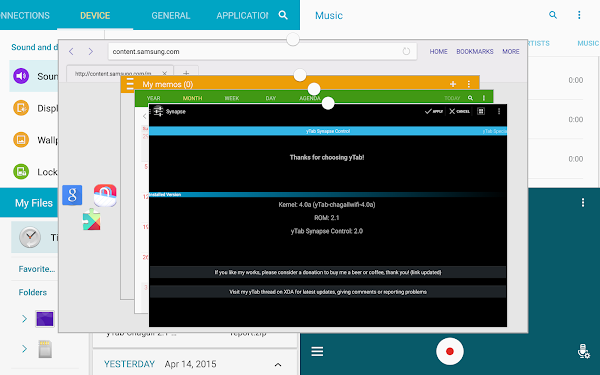

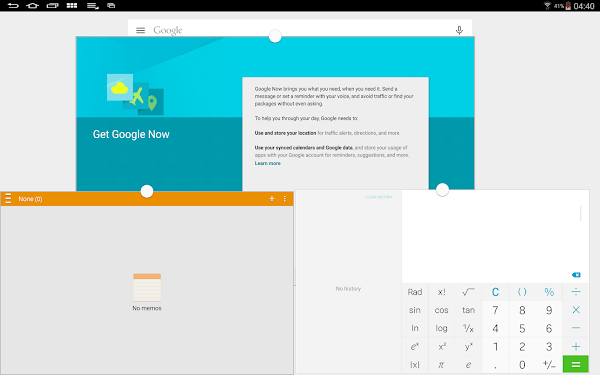

  • all apps quad view/floating multi windows
  • dialer enabled for entering factory test secret codes, etc
  • supports permissive and enforcing selinux
  • secured storage disabled **1
  • 5GHz wifi enabled supporting all frequency channels
  • supports synapse
  • supports private mode
  • working fingerprint sensor

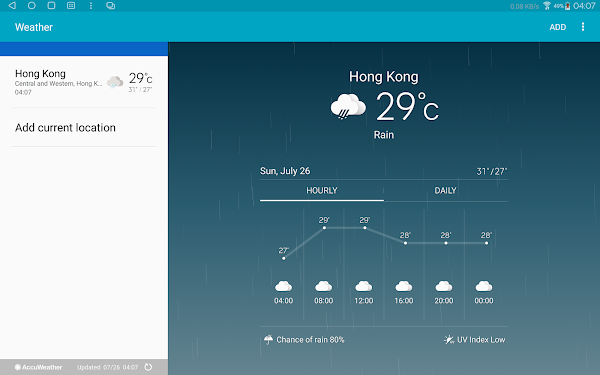

  • S6 transparent accuweather widget

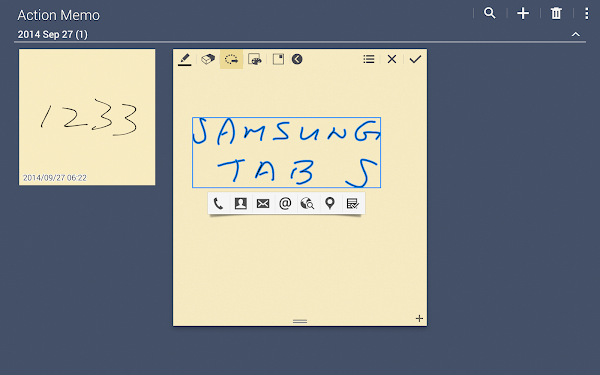

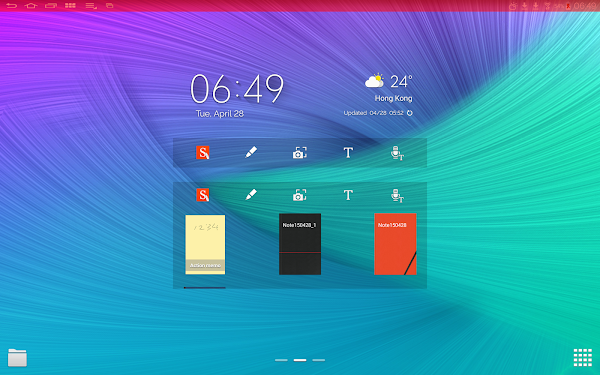

  • Note 4 SNote and action memo


**1 secure storage is bypassed but certain apps/functions depend on it may not run properly due to version mis-matched with kernel sources provided by samsung

​

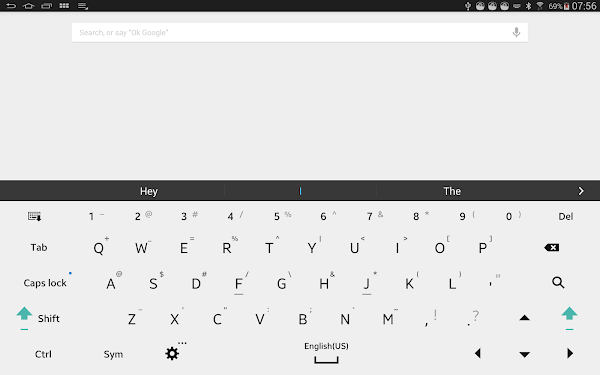

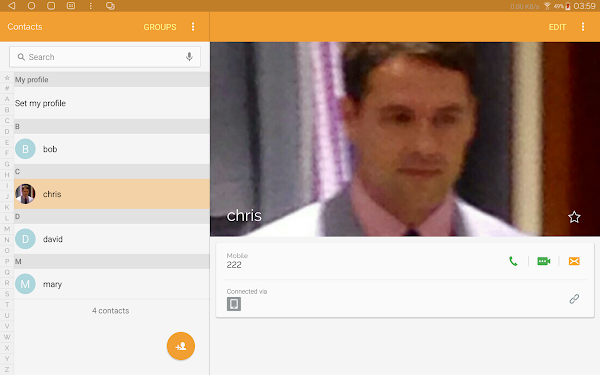

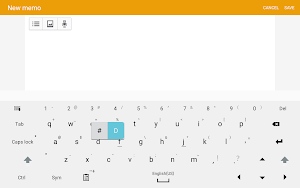

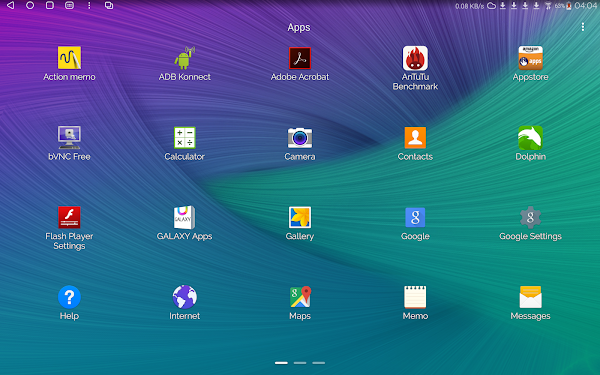

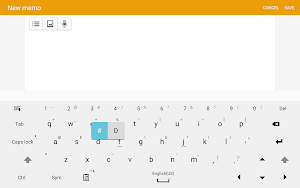

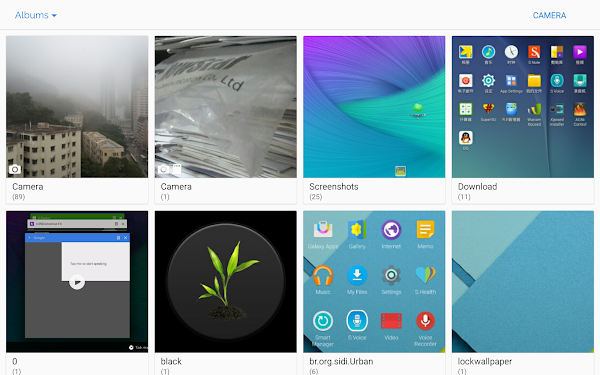

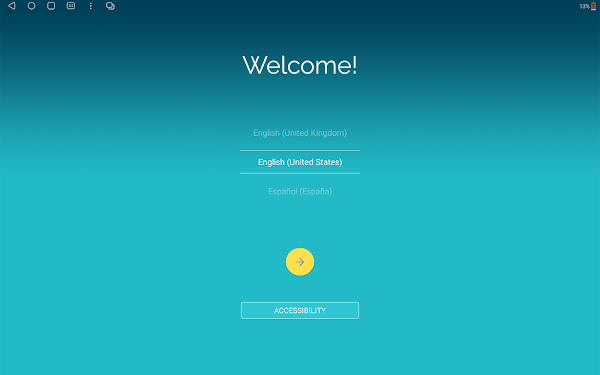

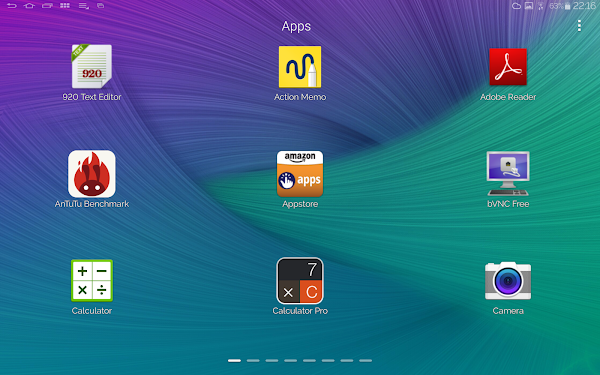

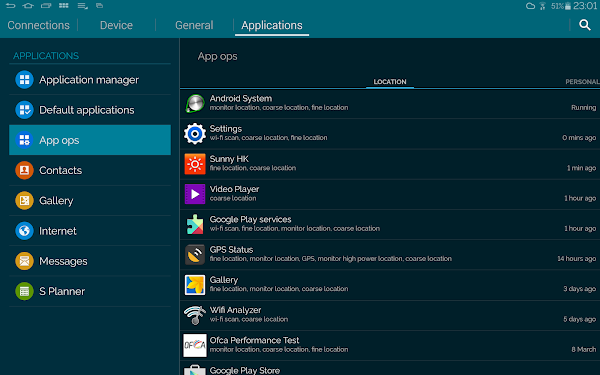

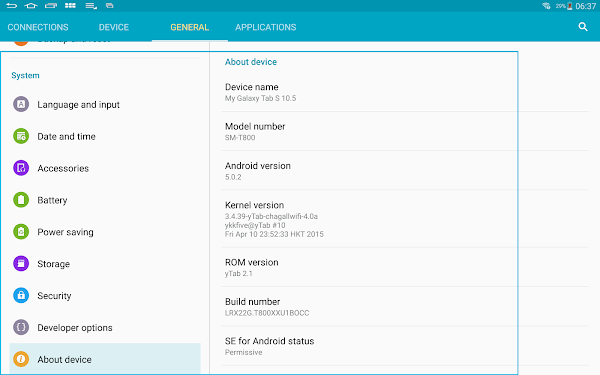

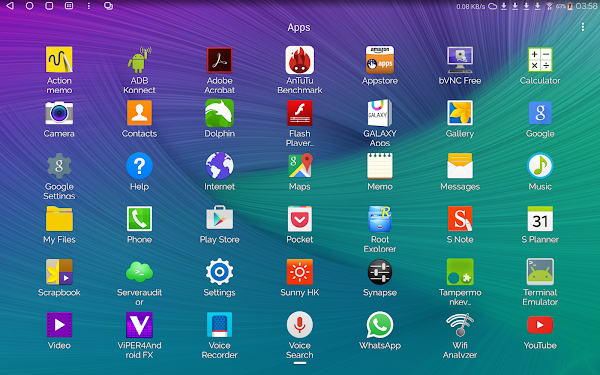

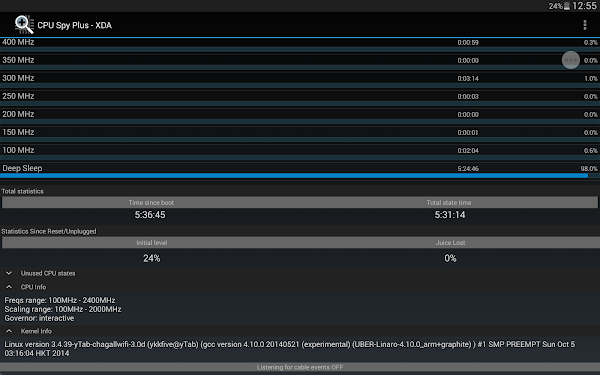

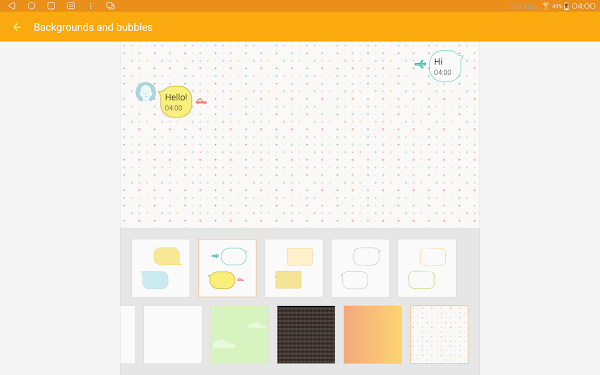

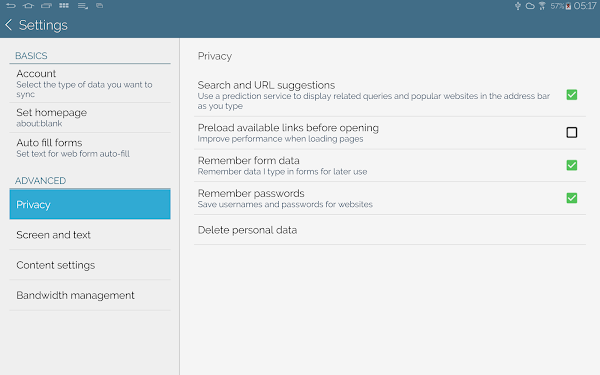

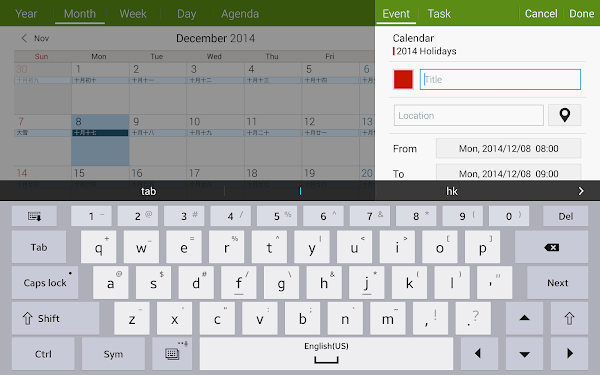

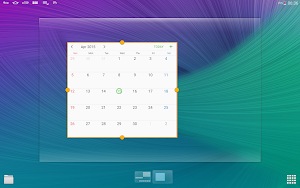

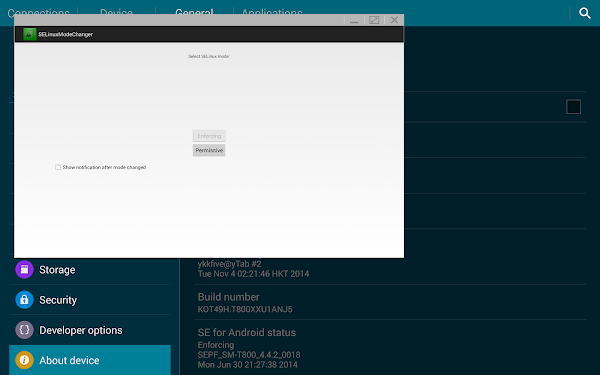

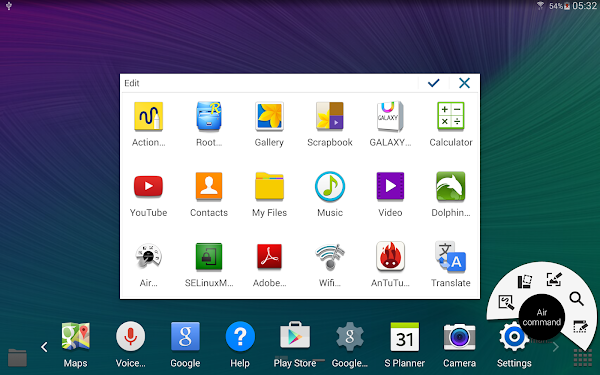

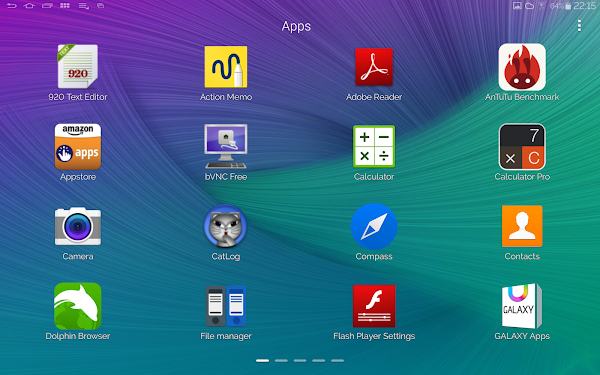

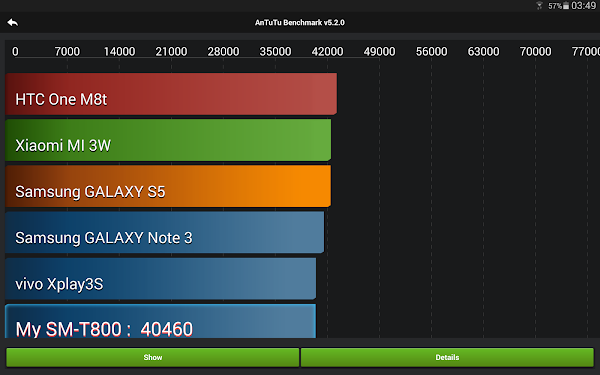

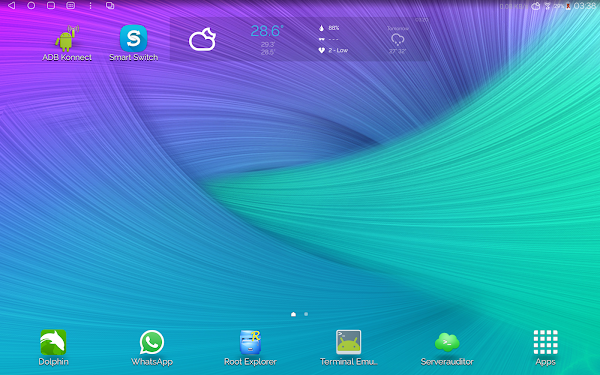

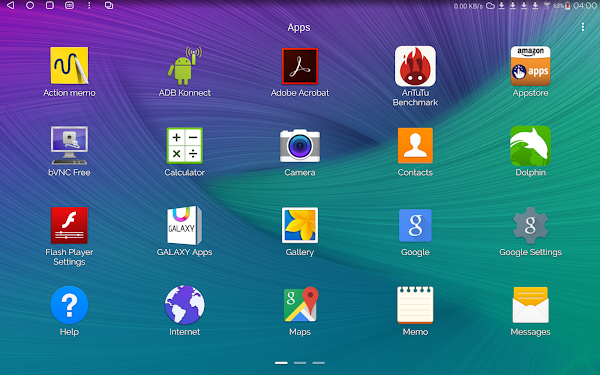

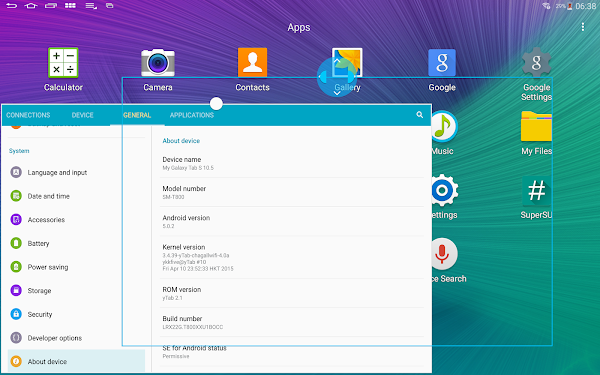

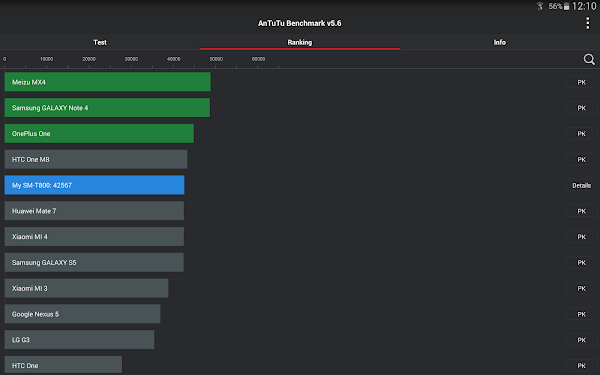

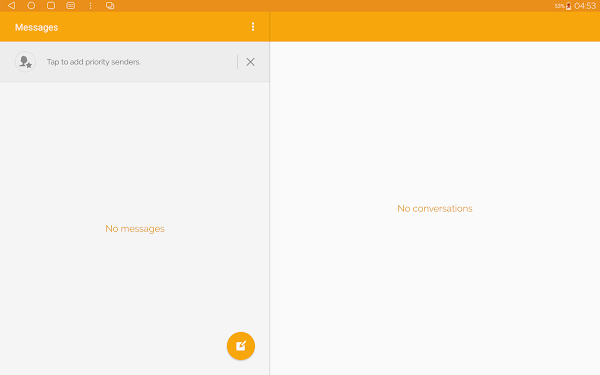

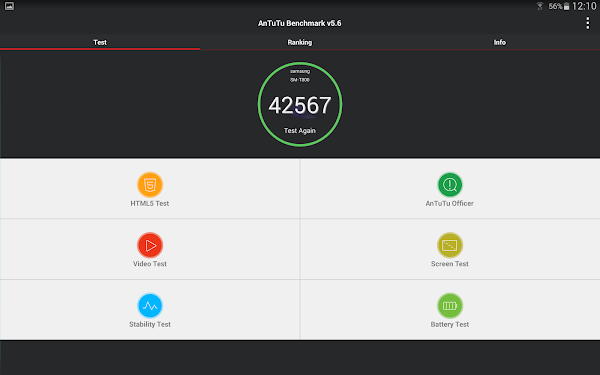

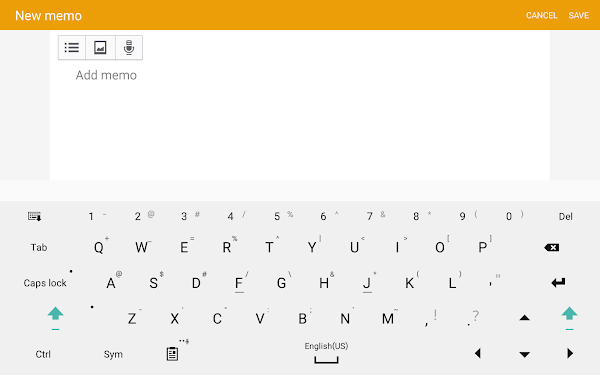

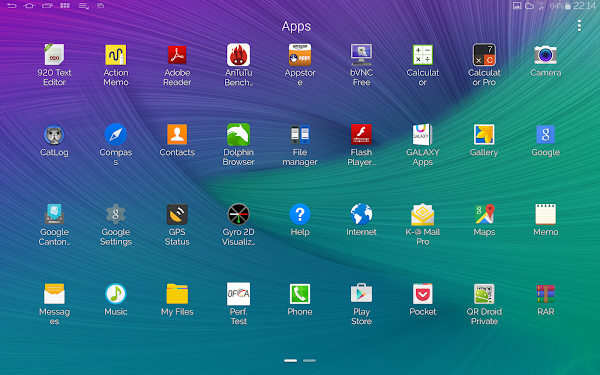

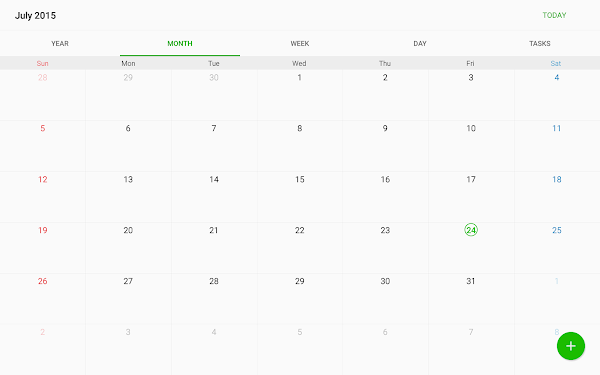

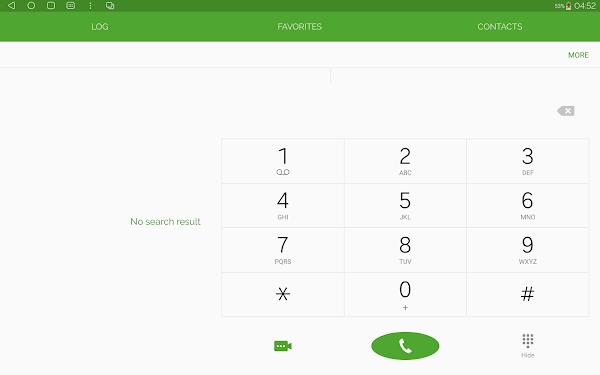

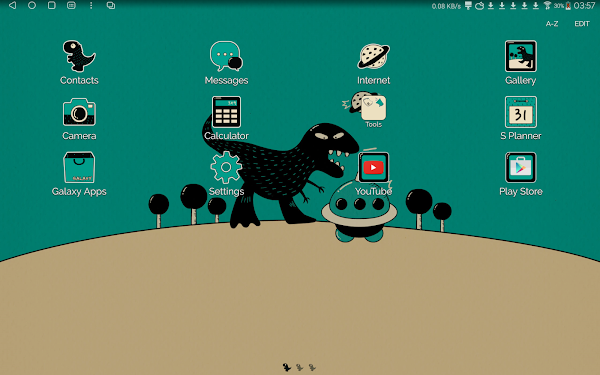

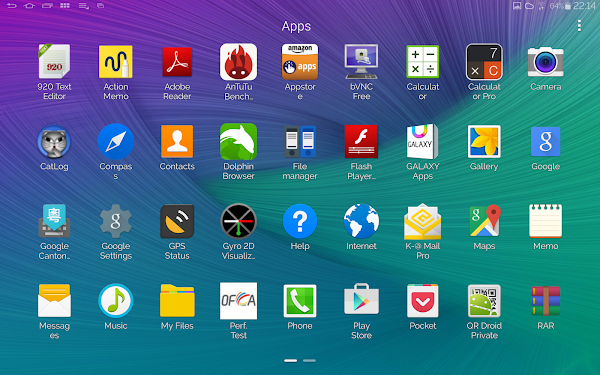

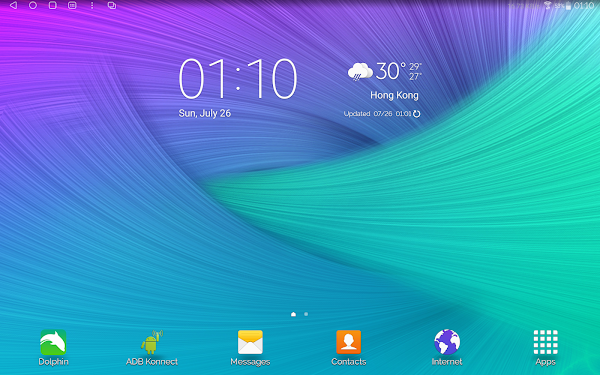

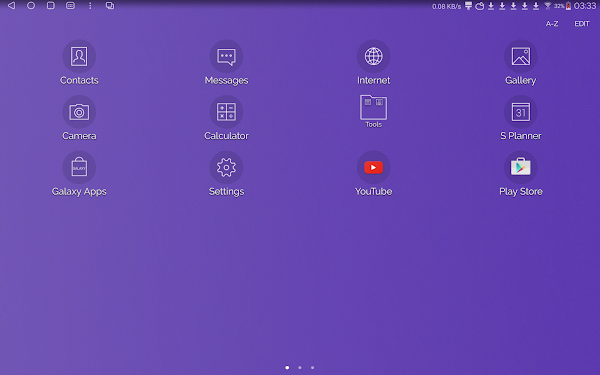

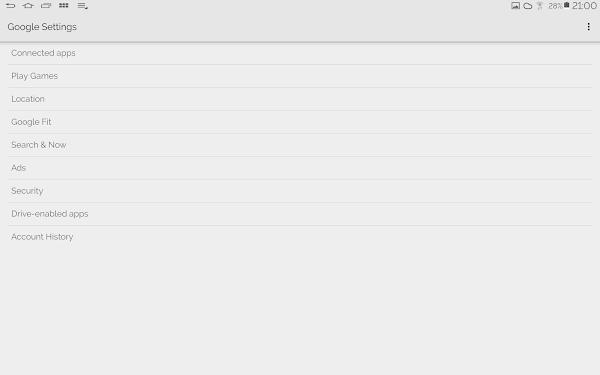

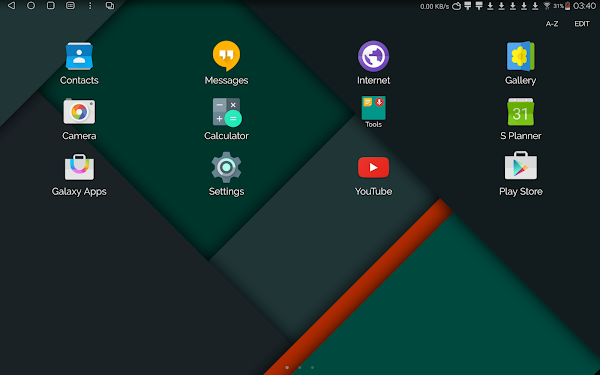

SCREENSHOTS:



DEFAULT SETTINGS:

  • max popup windows set to 4 (default 3), can be customized
  • reboot prompt disabled
  • flight mode is removed from reboot menu
  • selinux set to permissive
  • persistent recent apps disabled (no recent apps history will be shown in next boot)



TODO:

  • port more features from yTab 1.1 kitkat
  • android 5.1.1 port
  • add more S6/Note 4 apps
  • add more settings in yTab Synapse Control
  • custom kernel



KNOWN PROBLEMS:

  • incorrect status bar layout shown in lock screen
  • incorrect lock screen layouts
  • window mode toggle button in the tabletUI+ bar (the rightmost button on the left) is not yet implemented
  • ir blaster not working FIXED
  • some other minor issues


i have not tested all extra or stock features yet, especially for those apps/functions i don use but included in this rom for you guys only, so there may be some problems with certain apps or functions. kindly please report any problem so that i can take a look at that. thank you

​



CHANGELOG:

  • 20151114
    - yTab 3.0 Special Edition released


[*] 20151113
- yTab 2.6d2a Update (cumulative fix, includes and replaces previous 2.6d and 2.6d1 update)
- fixed problem for updating from 2.6c to 2.6d
- fixed installation problem with twrp
- re-added new wifi driver again (previous failure was due to problem with twrp)
[/list]


  • 20151028
    - yTab 2.6d1 Update (quick fix for some T800/T805 by undoing previous wifi related update in 2.6d)
    - fixed broken wifi for T800/T805 after updating to yTab 2.6d Update below


  • 20151027
    - yTab 2.6d Update
    - fixed fingerprint sensor may stop working in a few circumstances
    - added back missing functions in yTab Synapse Control
    - updated some drivers


  • 20151018
    - yTab 2.6c Full (Basic Edition)
    - fixed launcher app name overlapping the app icon
    - increased the font size of launcher app name
    - added an option to remove the nav buttons finally! (against my design actually :crying: )
    - some more 5.1.1 integrations
    - system updated
    - kernel updated (stock based) recompiled with linaro 5.2 (39k in antutu)




changelogs for older versions

  • 20150902
    - yTab Kernel 4.1a for T805 ONLY
    - fixed data connection problem
    - no other new features

  • 20150822
    - yTab 2.5b Update2 (includes yTab 2.5b Update below), AND
    - fixed tw launcher home grid layouts

  • 20150821
    - yTab 2.5b Update (requires 2.5a)
    - fixed tw launcher FC when rotate to port mode due to temporary removal of wip features before launch

  • 20150820
    - yTab 2.5a Update
    - yTab Synapse Control 2.5
    - added android 5.1.1 apps and framework
    - some features and updates from android 5.1.1

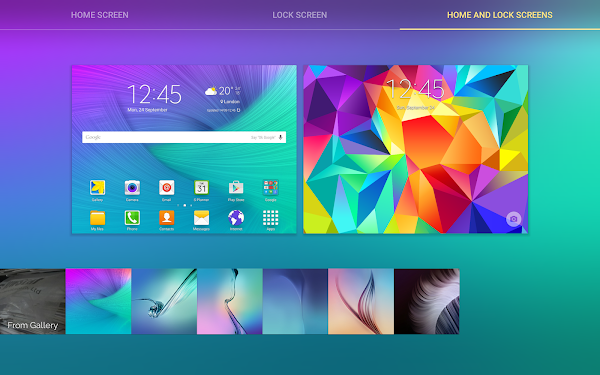

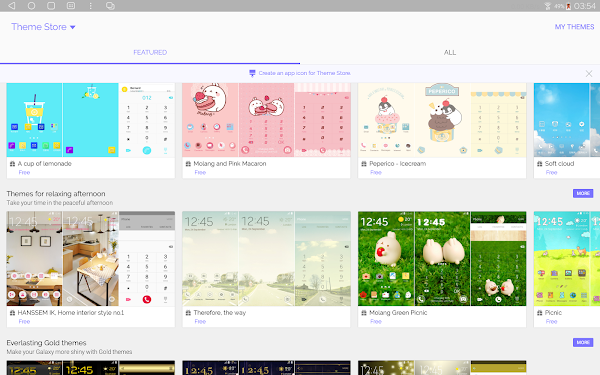

    - supports samsung s6 theme center/theme store

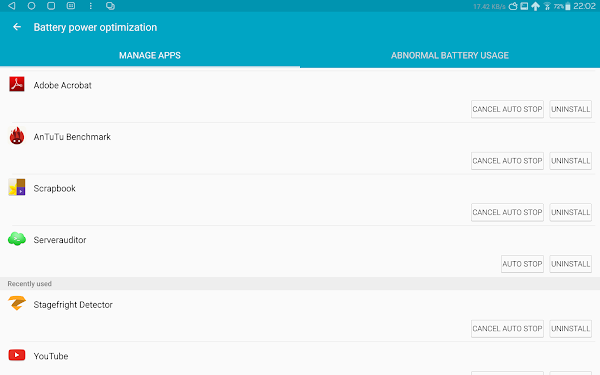

    - smart manager with working battery optimization
    - new launcher** (no custom grid size support yet, some layout issues in port mode, minor icon text problems in landscape mode)
    - new gallery/phone/contacts/messages/splanner, etc
    - gps fixed
    - updated notification list
    - added options to disable fingerprint sensor/knox/audit log in yTab Synapse Control
    - added options to disable network traffic meter
    - added options to customize text color of network traffic meter
    - added optional hidden power button by tapping on the system clock at status bar
    - added options to remove sfinder and quick connect buttons
    - sync problem fixed
    - other system tunings
    - other updates

  • 20150714
    - yTab 2.3b2 Installation Fix for T805 data connection problems

  • 20150705
    - yTab 2.3b Full for T800/T805 (includes yTab 2.3b1 and all other 2.x updates in one single pack and nothing more)
    - yTab 2.3b1 Update for T800 ONLY with fixed unchangable timezone (kernel only)

  • 20150618
    - reuploaded yTab Kernel 4.3d1 beta for T805 with updated script for detecting T805 lte model correctly
    - pls download this revised version if yTab Kernel 4.3d beta (released on 20150617) could not be installed on T805

  • 20150617
    - yTab Kernel 4.3d beta for T800 and T805 (tested on my T800 only, hence data connection/voice calls etc were NOT TESTED, pls provide feedback)
    - added more memory tunings/management
    - TZ (default HKT timezone) removed
    - reduced the screen brightness during boot
    - added back tap2wake (no settings UI yet, default settings: enabled=true, timeout=300secs, accepts power button press=true, requires double tap=true)
    - the tap2wake function is temporarily enabled for testing but may be removed/affected by future kernel updates

  • 20150610
    - yTab Kernel 4.3a beta for T800 ONLY
    - some more oc/uv kernel changes for cpu, gpu and memory (backport from yTab 1.x's default settings)
    - more changes for power savings (lowered default voltage values)
    - other performance tunings

  • 20150531
    - yTab Kernel 4.1 beta for T800 ONLY
    - oc/uv enabled for both cpu and gpu
    - some changes for power savings
    - some other tunings

  • 20150516
    - yTab 2.3b1 for T805 ONLY
    - fixed unchangable timezone and yTab Synapse Control problem

  • 20150515
    - yTab 2.3b (replacing 2.3a with modem problem fixed for T805 and SNote fc)
    - yTab Synapse Control 2.3
    - added custom TW layout
    - new tabletUI+ nav buttons (custom images support in next update)
    - added toggle for network traffic meter on the status bar (custom options later)
    - removed error message in yTab Synapse Control when no extsd is inserted
    - TW launcher updated
    - some fonts updated from S6
    - added S6 sound files
    - some other system and framework updates

  • 20150501
    - yTab 2.2 Update for SM-T800 and SM-T805
    - yTab Synapse Control 2.1
    - added Note 4 SNote and action memo with hand writing recognition and sync (you may need to update your sammy keyboard's under samsung keyboard settings -> select input languages -> select update in menu and update the language update files available, as to have hand writing recognition)
    - added S6 Accuweather transparent widget (weather info in port mode only atm)
    - further reduce the min size for floating popup windows (about 1/4 of the screen)
    - added persistent recent apps toggle
    - some other updates/fixes

  • 20150424
    - yTab 2.1b Update for SM-T800 and SM-T805
    - fixed SMemo fc
    - fixed weird SPlanner bug
    - disabled unneeded service (SM-T800)
    - added phone call recording (SM-T805)
    - disabled ascending ringtone (SM-T805)
    - added some other contacts/sms/voice call features (SM-T805)
    - other updates/fixes

  • 20150419
    - yTab 2.1a Update for SM-T800 and SM-T805
    - allow apps to access external sdcard
    - some minor updates

  • 20150415
    - yTab 2.1 Full for SM-T800 and SM-T805
    - initial release

​



INSTALLATION:

## IMPORTANT ##
DO NOT wipe the cache partition after the installation as this will break some functions, otherwise you will need to re-apply the latest update


for new users (fresh installation):
  • remember to make a backup first
  • I WILL NEVER format your partition or wipe anything for you (except reformat util), please wipe the system/data/cache partitons yourself before install
  • put the files in sdcard or external sd and install them in recovery (only tested with cwm)
  • after installed, you can start yTab Synapse Control and change any settings you desire

for existing users (applying updates):
  • check your current version by opening yTab Synpase Control and see if the version required for the update is met
  • install the update file in recovery
  • if applicable, you can apply more updates in the same recovery session without the need to reboot between updates
  • install multiple updates files in sequence according to the release dates with older files first



FAQ:

[1] how to wipe the partitions properly?
  • a) for cwm:
    wipe and format options -> custom format options -> choose format /system, /cache and /data

  • b) for twrp:
    wipe -> under select partitions to wipe page -> choose cache, data and system

[2] why only the back button at the top works but not others/no synapse can be found after installing yTab/synapse doesnt work properly?
  • a) most likely you have installed a custom busybox after installing yTab which breaks the predefined symlinks
    - to solve this problem, see if it works after uninstalling the custom busybox

  • b) you have not wiped the partitions properly before installing yTab and thus causing problems with a mixture of old and new system and data
    - as to fix this problem, please refer to FAQ #1 for a how to wipe the partitions properly

[3] could not find or missing VPN/google contacts sync/email/exchange, etc after yTab is installed
  • some apps were removed from the rom (debloated)
    - please get them in the removed apps section below, or post a request for the apps you need if they are not available yet

[4] yTab Synapse Control always shows json parse error
  • get and upload the uci.log file to your online storage by issuing the following command in terminal emulator and then send the link to me via pm (do not paste the log contents in the pm, thanks)
    Code:
    rm /res/synapse/config.json; uci config > /sdcard/uci.log

​



DOWNLOADS: (NO mirror please)

By downloading or using any file here you agree that I am not responsible for any loss or damage whatsoever caused to your devices. So download or use at your own risk


Latest Versions
**Note: updates are not cumulative unless stated


  • 20151113

    - requires yTab-Chagall-2.6c1-Full (fresh install)
    - cumulative fix for 2.6d and/or 2.6d1 updates
    - if it shows "ROM: 2.6d" in yTab Synapse Control after installing this update, that means it's a success, else the update is failed




[*] 20151028
[/list]




  • 20151027

    - requires yTab-Chagall-2.6c1-Full




  • 20151018

    - for T800 and T805 (cant send sms)
    - NO CPU/GPU OC/UV, Tap2Wake (DT2W), in Basic Edition
    - wipe data, dalvik-cache, cache, system BEFORE install
    - to avoid samsung account sync problem, it is suggested to start the Galaxy App in the first boot after install
    - some removed apks can be found in Removed apks section below



2.3x -2.5x versions

  • 20150902

    • boot-yTab-chagalllte-4.1a.zip
      primary - pcloud
      size: 6.61MB
      md5: 67E5165621D9F39593D11BBD5F80AC6E


    - for yTab 2.x T805 version ONLY (should be fine with yTab 2.1 or later)



  • 20150822

    • yTab-Chagall-2.5b-Update2.zip (replacing yTab-Chagall-2.5b-Update.zip released on 21/8)
      primary - pcloud
      size: 6.25MB
      md5: 20BCE6D0C3AEC623D62FD18B33D15E9A


    note
    - quick fix for yTab-Chagall-2.5a
    - need to have 2.5a installed first (listed below)



  • 20150820

    • yTab-Chagall-2.5a-Update.zip
      primary - pcloud
      size: 271MB
      md5: C71BAA61A97C93FD679833F12F151592


    note
    - requires yTab-Chagall-2.3x
    - no need to wipe anything



  • 20150714

    • yTab-Chagalllte-2.3b2-Installation-Fix.zip
      primary - pcloud
      size: 2.05MB
      md5: CB9EB27B0A41EAA6A6AF5A0BD220A337


    note
    - for T805 only
    - fixes for data connection problems on T805
    - need to install yTab-Chagall-2.3b-Full first



  • 20150705

    • yTab-Chagall-2.3b-Full.zip
      primary - pcloud
      size: 997.2MB
      md5: 64a8557834aea6021924fa7f52ab4a49


    • yTab-Chagallwifi-boot-T800-2.3b1-Update.zip
      primary - pcloud
      size: 6.5MB
      md5: 6778afdfd95c99ed5b5ac6080dca7b76


    note
    - cwm is STRONGLY RECOMMENDED , especially for t805 users as twrp wont detect the correct model, or else may end up with a t800 installation (no harm except modem etc missing)
    - read changelogs above for file description



  • 20150516

    • yTab-Chagalllte-T805-boot-2.3b1-Update.zip
      primary - pcloud
      importance: HIGH
      size: 6.62MB
      md5: B0A79EA9A7A4E597CB8B9E82A7F5BF02


      ** NOTE **
      - for yTab 2.x and T805 ONLY



  • 20150515

    • yTab-Chagall-2.3b-Update.zip for SM-T800/SM-T805 (replacing 2.3a update released on 14/5 and contains all 2.3a changes)
      primary - pcloud
      mirror - mediafire
      size: 327MB
      md5: D99E4C35F9A5C612A3E3554DD924C280


      ** NOTE **
      - REQUIRES yTab 2.2 update installed
      - fixed SNote fc and T805 modem problem in 2.3a
      - in general, NO WIPE is needed, but u can wipe dalvik-cache if u want to remove orphan files
      - existing TW launcher settings and widgets will be CLEARED and RESET to default due to the TW launcher upgrade
      - there is a minor issue that causes a few seconds delay before the launcher home is shown during boot
      - upon the first boot after installation is finished, all dalvik-cache files will be rebuilt and this process takes about 7-8 mins (depends on number of apps installed) due to framework file changes




    • yTab-Chagall-2.3a-QuickFix.zip for SM-T800/SM-T805 (ONLY for those with 2.3a)

      primary - pcloud
      size: 30.4MB
      md5: 04C2A9A4A404846EAE8344990645F6F3


      ** NOTE **
      - quick fix for 2.3a which fixed SNote fc and T805 modem problem
      - only contains the files needed for fixing the problems mentioned above
      - if in doubt, get yTab-Chagall-2.3b-Update.zip




2.1x and 2.2x versions

**Note: yTab 2.1 Full is mandatory for all 2.1x and 2.2x update files


  • 20150501

    • yTab-Chagall-2.2-Update.zip for SM-T800/SM-T805

      primary - pcloud
      mirror - mediafire
      size: 137MB
      md5: 706648532360BCB0722B9B18A39899E1


      ** NOTE **
      - REQUIRES yTab 2.1b update installed


  • 20150424

    • yTab-Chagall-2.1b-Update.zip for SM-T800/SM-T805
      primary - pcloud
      mirror - mediafire
      size: 18.3MB
      md5: CFC7A32A6031C4EFEBEF0C280B879731


      ** NOTE **
      - REQUIRES yTab 2.1a update installed


  • 20150419

  • 20150415

    • yTab-Chagall-2.1-Full.zip for SM-T800/SM-T805
      primary - pcloud
      mirror - mediafire
      size: 785MB
      md5: EAB2FCCDB0CDFCD87390122ED1115606


      ** NOTE **
      the kernel included in this yTab 2.1 is compiled with default stock kernel settings, so please DO NOT EXPECT huge performance boost



      ** INSTRUCTIONS **

      cwm is SUGGESTED since some twrp versions caused problems as reported by users


      for existing Lollipop users:
      - data/dalvik-cache wipe is SUGGESTED
      - a system partition wipe is STRONGLY RECOMMENDED
      - requires a working modem installed for the lte model (not included)

      for users with kitkat rom:
      - flash a stock lollipop rom BEFORE INSTALLING yTab 2.1 is RECOMMENDED, or at least the bootloader




Removed apks

** Note: install in recovery

For yTab 2.6+


Previous Addons




​











DONATIONS:

thank you very much. really appreciated

  • barth2
  • Anonymous (Transaction ID: 4MJ78261612182228)



CREDITS:

thanks for granting me permissions to use some of their works:

special thanks to:



SOURCES:



.





XDA:DevDB Information
yTab, ROM for the Samsung Galaxy Tab S

Contributors
ykkfive
ROM OS Version: 5.1.x Lollipop

Version Information
Status: Stable
Current Stable Version: yTab 1.1a/2.6d2a/2.7
Stable Release Date: 2016-04-29

Created 2014-11-28
Last Updated 2016-05-05

Last edited:
  • Like
Reactions: alias4ever, TimurAlaskara_TR, copy_01 and 28 others
Y

ykkfive

Inactive Recognized Developer
Jul 25, 2010
2,818
2,826
0
ykkfive.blogspot.com
Nov 10, 2014 at 9:56 PM
yTab 1.x (kitkat)




KERNEL FEATURES:

  • compiled with UBER Linaro 4.10 +Graphite
  • f2fs/ext4/ext2 support
  • single/double tap2wake with custom options
  • set to permissive selinux by default
  • cpu freq from 100 to 2400MHz **2
  • gpu freq from 100 to 733MHz
  • max memory freq increased to 933Mhz
  • custom voltage settings for cpu **3/gpu/memory **4
  • custom settings for audio/charging, etc **5


**2 stable max cpu freq is 2000MHz (default 1900MHz for safety), while max cpu freq observed is 2100MHz so far but crashed a lot (temperate around 25-29C)
**3 default voltage for cpu = stable value observed + 20mV
**4 default voltage for gpu/mem = stable value observed + 30mV
**5 via my yTab Synapse Control or sysfs

​



ROM FEATURES:

  • android lollipop like flat style colored status bar with same color as current app
  • custom TW launcher app icons grid from 3x3 to 10x10
  • custom/auto TW launcher app icon size
  • full window/windowed mode toggle
  • chinese lunar calendar
  • tabletUI+ (status bar with nav buttons just like tablet mode before on tablets)
  • supports mixed file systems of your choice, eg cache in ext4 and others in f2fs
  • custom boot animation support
  • enhanced UI speed, smoothness and responsiveness
  • dvfs disabled (cpu only atm)
  • all apps quad view/floating multi windows in both side bar or air command (spen) window
  • air command **1
  • dialer enabled for entering factory test secret codes, etc
  • knox removed
  • toggle between permissive and enforcing selinux
  • secured storage disabled **2
  • simple restart option menu
  • semi-transparent menu/dialog, etc
  • 5GHz wifi enabled supporting all frequency channels
  • supports synapse


**1 action memo, finder, screenshot, air command (spen) window
**2 secure storage is bypassed but certain apps/functions depend on it may not run properly due to version mis-matched with kernel sources provided by samsung

​



SCREENSHOTS:



DEFAULT SETTINGS:

  • tap2wake is enabled by default with 5 seconds delay (will set it longer in the next kernel update)
  • double tap is required to wake up the device by default instead of single tap
  • power key press is ignored by tap2wake but can be changed
  • selinux set to permissive
  • cpu freq - min: 100MHz, max: 1900MHz (should be safe to set 2000MHz max, have been running for months)
  • cpu freq big cores - min: 800MHz, max: 1900MHz
  • cpu freq little cores - min: 100MHz, max: 900MHz
  • gpu freq - min: 100MHz, max: 733MH
  • interactive cpu governor (recommended)



TODO:

  • add more settings in yTab Synapse Control
  • add color balance/control
  • 4.4.4 migration
  • include some Note 4 features including new air command, air clip, multi win, etc
  • start (really) to bring back my favorite TabletUI



KNOWN PROBLEMS:

  • secured storage and other apps or features depend on it like private mode wont work properly FIXED
  • draw target window action in air command not working (not going to fix it for kitkat)
  • no sound from left speaker (blame me for didnt notice that, my left ear has some problem, sorry) FIXED, temp solution here, ultimate fix will be included in the next update
  • failed to launch yTab Synapse Control 1.01 FIXED, please update to yTab-chagallwifi-1.01a-update
  • private mode not working FIXED
  • maildroid and skype not working FIXED
  • IR blaster doesnt work
  • floating windows showing home screen sometimes when back key is pressed FIXED
  • have to apply the tw grid setting every boot in synapse manually due to my fault FIXED


i have not tested all extra or stock features yet, especially for those apps/functions i don use but included in this rom for you guys only, so there may be some problems with certain apps or functions. kindly please report any problem so that i can take a look at that. thank you

​



CHANGELOG:

  • 20150325
    - yTab 1.1a (Full and Update)
    - fixed tw grid size not applied after boot


  • 20150324
    - yTab rom 1.1 with yTab synapse control 1.1
    - added android lollipop like flat style colored status bar with inverted icons (may not tinted correctly for some apps, eg after switching category in google play)
    - added new function to custom TW launcher icons grid from 3x3 to 10x10 on the fly without the need to download separate versions (app menu icons only)
    - added ability to custom TW launcher app icon size or auto resize according to number of app icons (affects all app icons including home/hotseat etc)
    - added a toggle to switch between full window/windowed mode in tabletui+ (certain apps refused to switch back to windowed mode from full screen)
    - added a chinese lunar calendar to the expanded pull down menu
    - added control over a new app launched by the current app (eg browser lauches google play and u cannot switch between them before, now u can)
    - reduced apk and jar file sizes to free more system disk spaces (some only atm)
    - added tap2wake 20 and 30 mins delay options
    - added back the hidden AppOps, an application permissions manager for blocking apps permissions
    - floating windows showing home screen sometimes when back key is pressed problem fixed
    - viper sound effect preloaded (ViPER4Android FX v2.3.4.0)
    - many more changes


CHANGELOG FOR PREVIOUS VERSIONS:

  • 20150130
    - yTab ROM 1.03a
    - fixed rotation problem
    - will install yTab Synapse Control if not yet installed
    - added back google contact sync


    - yTab ROM 1.03
    - tabletui+ (status bar with nav buttons in one bar like tablet mode)
    - added voice note from Note4
    - replaced magazine calendar widget with SPlanner widget (a bit smaller than full screen widget atm)
    - some apps updated to Android 4.4.4 version
    - no more sdcard notification after boot up, but u will get the notification if u insert or remove the sdcard thereafter
    - material light theme keyboard
    - enhancements in terms of smoothness and performance
    - other tunings and fixes that I cant remember

  • 20150107
    - yTab synapse control 1.01b
    - fixed tap2wake setting not saved
    - note that the power button option changed from "IGNORE" to "ALLOW", ie a reverse value is required
    - some other changes

  • 20141225
    - fixed yTab-chagallwifi-1.02-Full not installed properly

    for new users:
    - just get the revised version (yTab-chagallwifi-1.02-Full-with-Patched-Installer.zip)


    for those who downloaded the previous 1.02 Full file before:
    - please get and install the patch file (yTab-chagallwifi-1.02-Full-PATCH.zip)
    - the patch will update the 1.02 Full file downloaded before, and thus no need to redownload the revised file again
    - read the instructions below in download section for details

  • 20141214
    - rom version: 1.02 Full (for new users or fresh install)

  • 20141201
    - rom version: 1.02
    - DDU1ANK1 update
    - skype and maildroid startup problems fixed
    - less glitches when using floating windows and rotating but may still have some minor problems
    - selinux can be toggled between permissive and enforcing now safely
    - private mode now working properly
    - secure storage bypassed

  • 20141116
    - yTab 1.0x removed apks added

  • 20141115
    - rom version: 1.01a
    - yTab synapse control version: 1.01a
    - problem launching yTab Synapse Control fixed

  • 20141114
    - yTab synapse control version: 1.01
    - UI for setting Tap2Wake options added

  • 20141112
    - rom version: 1.01
    - some clean up and minor fixes
    - fixed synapse not showing in the app menu
    - added back Quick Action Memo, Air Command and CSC files
    - added official Note 4 wallpaper (2560x2560)

  • 20141111
    - initial yTab release for SM-T800
    - kernel version: chagallwifi-3.0p
    - rom version: 1.0
    - yTab synapse control version: 1.0




INSTALLATION:

for new users (fresh installation):
  • remember to make a backup first
  • I WILL NEVER format your partition or wipe anything for you (except reformat util), please wipe the system/data/cache partitons yourself before install
  • put the files in sdcard or external sd and install them in recovery (only tested with cwm)
  • after installed, you can start yTab Synapse Control and change any settings you desire

for existing users (applying updates):
  • check your current version by opening yTab Synpase Control and see if the version required for the update is met
  • install the update file in recovery
  • if applicable, you can apply more updates in the same recovery session without the need to reboot between updates
  • install multiple updates files in sequence according to the release dates with older files first



DOWNLOADS: (NO mirror please)

By downloading or using any file here you agree that I am not responsible for any loss or damage whatsoever caused to your devices. So download or use at your own risk


Latest Versions
**Note: updates are not cumulative unless stated

  • 20150325

    • yTab-chagallwifi-1.1a-Full.zip

      importance: moderate
      size: 1.10GB
      md5: 849F8526462B8E4CB93FB446FDF72950

      ** NOTE **
      - this is a FULL VERSION which includes all previous changes, including yTab-chagallwifi-1.1a-update below

      ** INSTRUCTIONS **
      for existing yTab users:
      - data/dalvik-cache wipe is NOT a must for EXISTING USERS with yTab installed
      - a system partition wipe IS STRONGLY RECOMMENDED

      for users with other roms installed:
      - WIPE data, dalvik-cache and system partition BEFORE INSTALL





    • yTab-chagallwifi-1.1a-update.zip

      importance: HIGH
      size: 2.05MB
      md5: 1E9417F9AD76ABF426BF67B081B0D5A1

      ** NOTE **
      - this is an UPDATE for VERSION 1.1
      - for yTab version 1.1 ONLY

      ** INSTRUCTIONS **
      - install the zip in recovery as usual



Archived Versions

  • 20150324
    BUG: have to apply the tw grid setting every boot in synapse manually due to my fault. will get it fixed soon, sorry
    yTab-chagallwifi-1.1-Full.zip

    importance: moderate
    size: 1.10GB
    md5: AD61543729B0EA63D14E9BF267A1A4BA

    ** NOTE **
    - this is a FULL VERSION which includes all previous changes

    ** INSTRUCTIONS **
    for existing yTab users:
    - data/dalvik-cache wipe is NOT a must for EXISTING USERS with yTab installed
    - a system partition wipe IS STRONGLY RECOMMENDED

    for users with other roms installed:
    - WIPE data, dalvik-cache and system partition BEFORE INSTALL


[*] 20150130

  • yTab-chagallwifi-1.03a-Update.zip
    importance: high
    size: 4.76MB
    md5: 97C9F924185881293CCD7CC9081C1A50

    ** NOTE **
    - this is a fix for v1.03 Full
    - it REQUIRES yTab-chagallwifi-1.03-Full.zip below



  • yTab-chagallwifi-1.03-Full.zip
    importance: moderate
    size: 1.18GB
    md5: 18543BBDDADF0C76524131F14AE4CED4

    ** NOTE **
    - this is a FULL VERSION which includes all previous changes

    ** INSTRUCTIONS **
    for yTab users:
    - data/dalvik-cache wipe is NOT a must for EXISTING USERS with yTab installed
    - a system partition wipe IS STRONGLY RECOMMENDED

    for users with other roms installed:
    - wipe data, dalvik-cache and system partition before install
[/list]


  • 20150107

    • yTab-synapse-control-1.01b.zip (for existing users with yTab synapse control version 1.01a)

      importance: moderate
      size: 683KB
      md5: CB07179660F36C9B0C24838B3E574C9B


  • 20141225

    • yTab-chagallwifi-1.02-Full-with-Patched-Installer.zip

      importance: high
      size: 1.09GB
      md5: 885ED4F6D23F3D6B2CE49252E38E23CC

      ** NOTE **
      - this is a new build with the installation problem fixed
      - this file is a revised version of the previous released yTab-chagallwifi-1.02-Full.zip
      - NO NEED to get the patch yTab-chagallwifi-1.02-Full-PATCH.zip below


    • yTab-chagallwifi-1.02-Full-PATCH.zip (ONLY for previous yTab-chagallwifi-1.02-Full.zip downloaded before 25Dec2014 2300 HKT)

      importance: high
      size: 3.11MB
      md5: D3ABF83480D29723DDF74912991647C0

      ** INSTRUCTIONS **
      1. make sure you have wiped/reformatted both /system and /data partition (not internal sdcard)
      2. place this patch file in the same folder as yTab-chagallwifi-1.02-Full.zip (VERY IMPORTANT)
      3. install this patch file in recovery
      4. after the patch is installed, choose and install yTab-chagallwifi-1.02-Full.zip to continue the installation of 1.02 Full (no need to reboot)




  • 20141115
    • deprecated yTab-chagallwifi-1.01a-update.zip (includes both yTab ROM 1.01a and yTab Synapse Control 1.01a updates)
      importance: high
      size: 1.07MB
      md5: 5D1763B055AC771702AD1E567A4AFABB




  • 20141112





Removed apks

** Note: these are NOT recovery install zip files, extract the zip and put the files in the location specified (/system/app/ or /system/priv-app/), and chmod to 644
  • yTab 1.01x - Kies and MTP Application (already included in version 1.1)
    location: /system/priv-app/
    size: 113KB
    md5: 8B253341A9D0A0A3ADF8D126D1450D8A


  • yTab 1.x - app folder
    location: /system/app/
    size: 294MB
    md5: FAC97227B8DD2634CCA487E8F90F560F
    file list

    AccuweatherTablet2014_BG_WQXGA.apk
    AllShareCastPlayer.apk
    AllshareControlShare.apk
    AllshareFileShare.apk
    AllshareFileShareClient.apk
    AllshareFileShareServer.apk
    AllshareMediaServer.apk
    AllshareMediaShare.apk
    AntHalService.apk
    ANTPlusPlugins.apk
    ANTRadioService.apk
    BBW.apk
    Blurb.apk
    Books.apk
    Bridge.apk
    ChocoEUKor.apk
    Chrome.apk
    ColorBlind_tablet.apk
    CoolEUKor.apk
    Drive.apk
    Dropbox.apk
    DropboxOOBE.apk
    EdmVpnServices.apk
    ELMAgent.apk
    EmergencyLauncher.apk
    EmergencyModeService.apk
    EmergencyProvider.apk
    Evernote.apk
    Flipboard.apk
    FWUpgrade.apk
    GearManagerStub.apk
    Gmail2.apk
    GoogleContactsSyncAdapter.apk
    Hangouts.apk
    KNOXAgent.apk
    KnoxAttestationAgent.apk
    KnoxSetupWizardClient.apk
    LocalFOTA.apk
    Magazines.apk
    MobilePrint4.apk
    MobilePrintSvc_CUPS.apk
    MobilePrintSvc_CUPS_Backend.apk
    MobilePrintSvc_Epson.apk
    MobilePrintSvc_HP.apk
    MobilePrintSvc_Samsung.apk
    MobilePrintSvc_WFDS.apk
    Music2.apk
    MusicLiveShare2.apk
    NYTimes.apk
    PeelTab.apk
    PhotoTable.apk
    PlayGames.apk
    PlusOne.apk
    QuickConnect.apk
    QuickConnectInteraction.apk
    RemotePC.apk
    RoseEUKor.apk
    SafetyInformation.apk
    SamsungContentsAgent.apk
    SamsungSans.apk
    SamsungWatchON.apk
    SamsungWidget_ActiveApplication.apk
    SapaMonitor.apk
    SBrowserTry.apk
    SCONE_Android_ProxyService_NoLib.apk
    SecEmail_Tablet.apk
    SecExchange.apk
    SecKidsModeInstaller.apk
    SecTabletClockPackage.apk
    SecTabletDualClockDigital.apk
    Sidesync.apk
    Sidesync_Player.apk
    Sidesync_Source.apk
    SPrintSpooler2.apk
    TravelService_K.apk
    Videos.apk
    WeatherDaemon2014.apk
    WebExMeetings.apk
    WebManual.apk
    WfdBroker.apk

  • yTab 1.x - priv-app folder
    location: /system/priv-app/
    size: 82MB
    md5: 78CA1A0729EE874745EF76FCD8C7CA6A
    file list

    BackupRestoreConfirmation.apk
    ConfigUpdater.apk
    ContentSearch.apk
    ContextProvider.apk
    FotaClient.apk
    GoogleBackupTransport.apk
    GoogleFeedback.apk
    GoogleOneTimeInitializer.apk
    HancomOffice_Shared.apk
    HancomUpdater.apk
    hanviewerlauncher.apk
    hanwidget.apk
    hcellviewer.apk
    Hearingdro_music_v1_B.apk
    hshowviewer.apk
    hwordviewer.apk
    intelligenceservice_1.0_alpha1.apk
    Kies.apk
    KLMSAgent.apk
    MagazineBriefingWidget.apk
    Msa.apk
    MtpApplication.apk
    MusicFX.apk
    Netflix.apk
    NoiseField.apk
    NokNok_Stub_Chagall.apk
    PhaseBeam.apk
    SamsungMagazine.apk
    SamsungMagazineWidget.apk
    SFinder.apk
    ShareVideo.apk
    SoundAlive_Tablet.apk
    S-Voice_Android_tablet_vlingo.apk
    TrimApp_tablet_dark.apk
    VpnDialogs.apk

​












Last edited:
  • Like
Reactions: epereza, jcdr12, BIGHenTai and 6 others
Y

ykkfive

Inactive Recognized Developer
Jul 25, 2010
2,818
2,826
0
ykkfive.blogspot.com
Nov 10, 2014 at 9:56 PM
SCREENSHOTS:


yTab 2.5 screenshots

new setup wizard


theme store


themes applied




new launcher (home: 8x6 + 10 hotseats, app: 6x4, will be changed later)


splanner


phone


message



wallpaper picker


weather


transparent weather widget


gallery


contacts


smart manager - battery optimization







yTab 2.3 screenshots


7x6 custom grid, auto icon size



5x4 custom grid, auto icon size



5x4 custom grid, fixed icon size



yTab 2.2 screenshots



smaller popup windows size



S6 accuweather transparent widget and Note4 SNote widget




yTab 2.1 screenshots



new simple reboot menu without prompt



resizable calendar widget



permissive selinux



swipe to resize window



resized window with controls



drag to move the window



multiple popup windows



quad windows with popup windows in different sizes plus minimized windows



swapping between windows



keyboard with material design, plus arrow keys like previous version



modified long press key options with upper case letter, accents symbols removed





yTab 1.x screenshots



10x5 with auto icon resizing


3x3


4x4


9x4 with auto icon resizing


9x4 with user defined icon size


flat style status bar with immersive mode disabled and lollipop style ui controls


flat style status bar with inverted icons


added back appops


material light theme keyboard and TabletUI+


new performance test 10 jan 2015


new performance test 10 jan 2015


standy battery consumption 1


standy battery consumption 2


selinux set to permissive


selinux set to enforcing


antutu 5.2 benchmark


my highest score so far (ranked at 19th before MX4 launched ...)


simple restart option menu


action memo


note pro keyboard with tab and arrow keys


air command and pen/multi windows


Last edited:
  • Like
Reactions: eman2001, Ashwin Prabhunerurkar, epereza and 6 others
Y

ykkfive

Inactive Recognized Developer
Jul 25, 2010
2,818
2,826
0
ykkfive.blogspot.com
Nov 10, 2014 at 9:57 PM
BETA DOWNLOADS:

By downloading or using any file here you agree that I am not responsible for any loss or damage whatsoever caused to your devices. So download or use at your own risk



** due to unable to fix the screwed up kernel sources and publish here in time as per request by a member, all beta kernel download links are removed from this post in order to comply with the sharing policy

no eta about when it will be available again here
​





- Files listed here are regarded as beta files, which may be buggy or produce unexpected results and you have been warned
- By downloading or using any file here you agree that I am not responsible for any loss or damage whatsoever caused to your devices. So download or use at your own risk


  • 20150618
    • boot-yTab-chagalllte-4.3d1.zip for T805 (beta)

      link removed
      size: 8.49MB
      md5: 687A6D7DD5D4B48D6873E3B4556AAA94


      ** NOTE **
      - this is a revised version (replacing boot-yTab-chagalllte-4.3d.zip uploaded on 20150617) with updated script to detect a T805 lte correctly
      - boot-yTab-chagalllte-4.3d1.zip has been tested on my T800 only, hence data connection/voice calls etc were NOT TESTED



  • 20150617
    • boot-yTab-chagallwifi-4.3d.zip for T800 (beta)

      link removed
      size: 6.74MB
      md5: B21EA662C9611C973105720ED0E7BCFD



  • 20150610

    • boot-yTab-chagallwifi-4.3a.zip for T800 (beta)
      link removed
      size: 6.72MB
      md5: 20B3CA1C7452C2CE01997F9B70885271


      ** NOTE **
      - for yTab 2.x and T800 ONLY



  • 20150531

    • boot-yTab-chagallwifi-4.1.zip for T800 (beta)
      link removed
      size: 6.58MB
      md5: 6E04DA21068040976072031B7C363053


      ** NOTE **
      - for yTab 2.x and T800 ONLY
      - IT WONT make your tablet flies

Last edited:
  • Like
Reactions: epereza, ARPotter, DUHAsianSKILLZ and 1 other person
N

naomile

Senior Member
Sep 17, 2012
170
19
0
Nov 11, 2014 at 5:59 PM
Just downloaded, installed with TWRP everything runs fine....need a day or two to see how it goes...so fa so good. Thanks for the hard work. BTW flash synapse control but don't see anything and so is floating window and hoover.

Y

ykkfive

Inactive Recognized Developer
Jul 25, 2010
2,818
2,826
0
ykkfive.blogspot.com
Nov 11, 2014 at 6:24 PM
naomile said:
link download takes forever :) can you provide a different link? Thanks
Click to expand...
yeah, i find pcloud is slow too these few days. but unfortunately dropbox was slow too last nite


naomile said:
Just downloaded, installed with TWRP everything runs fine....need a day or two to see how it goes...so fa so good. Thanks for the hard work. BTW flash synapse control but don't see anything and so is floating window and hoover.
Click to expand...

my mistake, will be corrected in the 1.01update together with other fixes

Last edited:
Y

ykkfive

Inactive Recognized Developer
Jul 25, 2010
2,818
2,826
0
ykkfive.blogspot.com
Nov 11, 2014 at 6:36 PM
20141112
yTab-chagallwifi-1.01-update.zip (for those with yTab 1.0 installed only)
changes:
- some minor updates and cleanup
- added back Synapse (will now shows in app menu)
- added Quick Action Memo, Air Command and CSC files



EDIT
yTab-chagallwifi-1.01-Full.zip is ready (for new users, 1 single file)

Last edited:
  • Like
Reactions: naomile
H

hurray

Senior Member
Oct 25, 2010
624
266
63
Nov 12, 2014 at 2:04 PM
Ahh, thanks for the answer and of course you're whole work.
I thought about to try the kernel on CM11 so it was good to ask before flashing. :)

You must log in or register to reply here.

New posts

Our Apps
Get our official app!
The best way to access XDA on your phone
Nav Gestures
Add swipe gestures to any Android
One Handed Mode
Eases uses one hand with your phone
