[UTILITY|S-OFF] RegawMOD Bootloader Customizer for Dinc4G LTE

[junkmail9]

Description
HTC Droid Incredible 4G LTE Plug-In for the RegawMOD Bootloader Customizer is now available!

WARNING: YOU MUST BE S-OFF TO USE THIS TOOL AND PLUG-IN

This plug-in will allow you to use the RegawMOD Bootloader Customizer written by regaw_leinad.

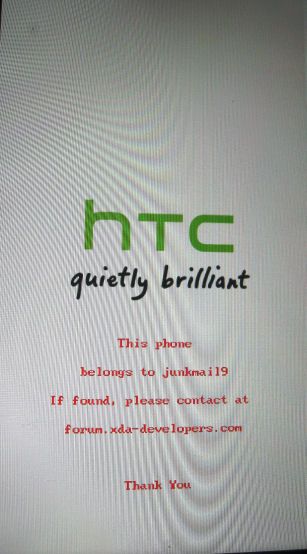

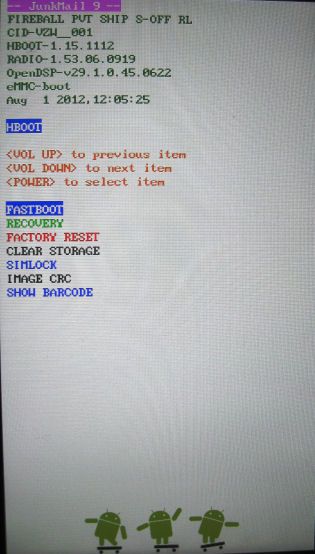

With the tool and this plug-in, you can easily create a custom HTC firmware zip for the HTC Droid Incredible 4G LTE containing a custom bootloader image. You will be able to edit the *** UNLOCKED *** (or "-- DirtyRacun --") text on the top to whatever you want it to say, change the S-OFF to S-ON, change the bootloader's minor version number, update the bootloader's date and time stamp, and either hide or customize the splash screen disclaimer. Using this tool to change S-OFF to S-ON changes only the text on the screen, it does not change your s-off status of the phone. Same goes for "locked"/"unlocked"/"Relocked" so be careful to remember the correct state of your phone.

Choosing the "Stock" option, the tool automatically sets your banner to say *** LOCKED ***, changes S-OFF to S-ON and hides the HTC Development Splash Screen Disclaimer.

This program will NOT flash the zip for you, but it will create the PJ53IMG.ZIP and save it your computer. From there, you simply copy it to your sdcard and flash the zip yourself in hboot.

The process (flashing a new bootloader) is dangerous and may possibly brick your device if done incorrectly. You have been warned

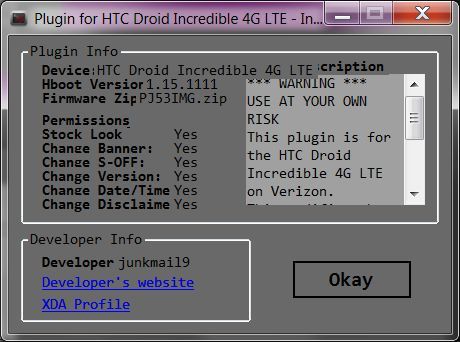

App Screenshot

Screenshot

I created several versions of the plug-ins, so you can choose which hboot you'd like to customize and install.

This tool works well with phones which achieved s-off through the DirtyRacun process or are s-off and relocked through other means. If you have a development s-off phone that is truly still locked (not re-locked), let me know. This requires a different plug-in, but it has been done - one of my testers had one of these phones. If you have achieved s-off through another method, your results will vary, but the plug-in can be tweaked for your phone so please let me know if you need something different. The main difference will be that you won't be able to change the text in the magenta box.

How To Flash A firmware zip

1. Place the zip on the root of your external sdcard. (Copy it right onto your sdcard, not in any folder)
2. Reboot the phone into the bootloader by either:
   • Powering off your phone completely, then hold Volume-Down and Power until the phone boots into the bootloader
   • If you have the android sdk set up, type 'adb reboot-bootloader'
3. Then select the menu option "Bootloader" and press the power button.
   • If you rebooted the manual way (Volume-Down + Power) You should already be at this menu
4. It will load the zip from your sdcard and ask you to accept the flash.
5. Press Volume Up to flash (On most devices, but could be a different button)
6. Once prompted, press Power to reboot (On most devices, but could be a different button)
7. Once complete, be sure to remove the firmware zip from your sdcard so it doesn't load next time you enter the bootloader.

Download Latest Plug-In Release

Engineering hboot 1.15.1111 Plug-In - Link updated 2016-10-26

Note: This "stock" version is for academic purposes.
It will not remove the ***TAMPERED*** flag.
Stock hboot 1.15.0000 Plug-In - Link updated 2016-10-18

MD5s are on the linked page. Be SURE to verify after downloading the plug-in.

This plug in works for the main app version 2.1 and newer.

Download Latest Bootloader Customizer App
The main app can be found in regaw_leinad's OP here: http://forum.xda-developers.com/showthread.php?t=1786498


Reminder
WARNING: YOU MUST BE S-OFF TO USE THIS TOOL AND PLUG-IN
USE AT YOUR OWN RISK - YOU COULD BRICK YOUR PHONE


Credits
Main Program and awesome instructions for plug-in: regaw_leinad <-- Be sure give him "Thanks" on his OP
Droid Incredible 4G LTE Plug-in: Me
Brave Beta Testers: jtdogblue and andybones



[junkmail9]

Reserved



[junkmail9]

Reserved



[regaw_leinad]

OP Looks great Thanks again for letting me know before posting! And awesome work with the plugin and finding that bug. I appreciate them both



[Linch89]

Thanks for everyone hooray! Def be trying this out thanks for bringing this to us junkmail



[Pete02]

Worked great! :good: Thanks to junkmail9 and regaw_leinad!



[mdmower]

I used the engineering HBOOT 1.15.1111, changed my banner to " HTC Inc 4G LTE ", and turned off the development disclaimer. All went well. Thanks for compiling the plugin.



[DavDoc]

How do we run the dll file

I am assuming we need to place the dll file into a specific folder on our computer. If so, where might that be. I have Windows 7.

Edit - Never mind, I found my answer by reading the 1st post more carefully.

Thanks



[mdmower]

Deleted



[junkmail9]

I am assuming we need to place the dll file into a specific folder on our computer. If so, where might that be. I have Windows 7.

On a side if we are running Linux were should we put this?

Thanks

Put the plug-in dll(s) in the same folder as the RegawMOD program.

The program and plug-in only work under Windows. It will not work in Linux.



[mdmower]

Deleted



[junkmail9]

Ha, beat ya.

Sent from my Nexus 7 using Tapatalk 2

Yep, you certainly did



[Linch89]

This tool works great! Thanks junkmail



[Aldo101t]

works

works great junkmail thanks



[andybones]

Great job bro!



[jcpowell]

I didn't want to start a thread on this and its not an issue that I'm concerned over or view as a problem nor do I know if this belongs in this thread but I wanted to share this anyways. My bootloader banner, you know the one that once said dirtyracun has completely disappeared.



[Linch89]

Does it say locked or unlocked? Have you recently ruu'd ? That will eliminate the dirty racun hboot with the stock one



[junkmail9]

That is very strange. Do you know what happened before it vanished?

You could try to flash a new hboot made with the tool to see if it returns.

Sent from my Fireball using Xparent Blue Tapatalk 2



[jcpowell]

No, I still have my eng hboot. I had changed my banner using this tool but somewhere along the way.



[jcpowell]

That is very strange. Do you know what happened before it vanished?

You could try to flash a new hboot made with the tool to see if it returns.

Sent from my Fireball using Xparent Blue Tapatalk 2

I'm not sure when it disappeared.
