Wifi antenna location

[loginid]

Hi,

My wifi seems a bit slow and I wanted to check the antenna connection. I've opened the back of the tablet and looked under all parts but can't seem to find the antenna. Can any tell me where it is?

Here's a picture of the tablets, can anyone point out where the antenna is?

(can't post pictures )
oi65.tinypic.com/2gtneyf.jpg



[Osama chohan]

You are absolutely sure that opening the back of the tablet and after wasting the warranty you'll mess with the wifi antenna it'll magically boost your speed? Well if you're sure then you will find wifi antenna under that little silver plate beside the silver camera plate (probably need soldering open at your own risk!!!) By the way I think there are other ways to improve wifi speed. I believe your problem can be fixed if you describe it more properly...you said wifi is slow you could get a better router or place it at a better spot but are you sure that wifi is only slow on the note pro not on any other device? (Use internet speed test to be sure) Thanks for reading.Glad to help!



[Beut]

Hi,

My wifi seems a bit slow and I wanted to check the antenna connection. I've opened the back of the tablet and looked under all parts but can't seem to find the antenna. Can any tell me where it is?

The antenna is at the top of the left speaker but when the rear case was removed and the LCD is facing down, left speaker is on the right.

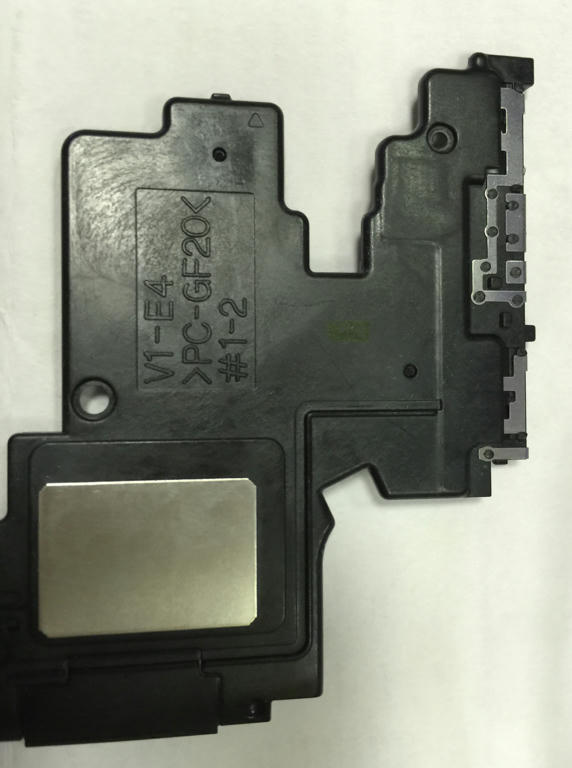

The white metal part is antenna, it's on the right side of this picture

Below is the 4 points of contact to mainboard

But I don't think you can do anything with the antenna to improve Wifi signals
